Waterproof Measures
If the camera is installed outdoor, you should use the waterproof
accessory or tapes to waterproof the cables. Otherwise the cables
might get wet or a short circuit occurs.
2.4.1 Install Network Cable Waterproof Jacket

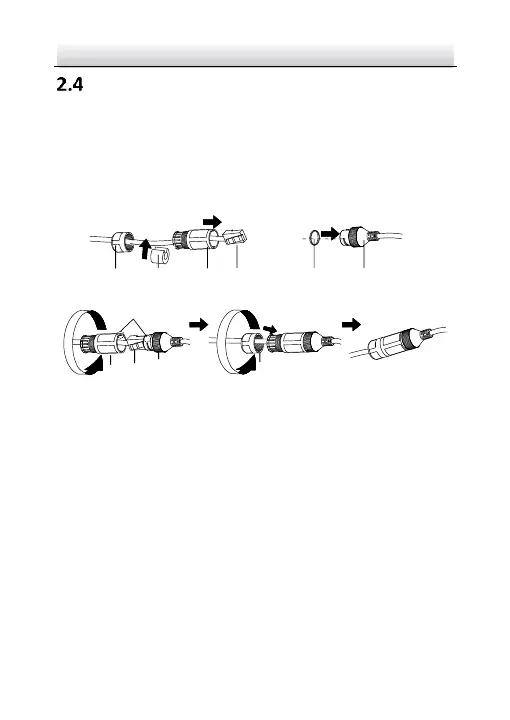

Figure 2-9 Install Waterproof Jacket
Steps:
1. Feed the network cable through ① and ③ in order.
2. Fix ② on the network cable between ① and ③.
3. Place ⑤ onto the end of ⑥, and plug the RJ45 male connector
into RJ45 female connector.
4. Screw ③ to ⑥ clockwise
5. Push ② into ③.
6. Secure ① with the ③ in clockwise direction.
