HIKVISION DS-2TD2466-50Y - Installation of Network Cable Water-Proof Jacket

Installation of Network Cable
Water-proof Jacket
Purpose:
If the camera is installed outdoor, you can adapt the
water-proof accessory for the network cable after the camera is
secured on the installation surface.
①
②
③
④
⑤
⑥ ⑦

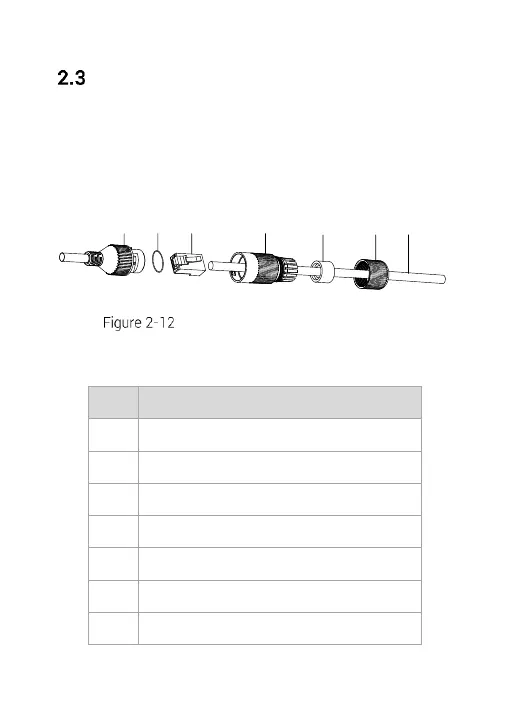

Water-proof Accessory Components
Table 2-1 Components
No.
Components
1
Camera’s Network Interface Socket
2
O-Type Gasket
3
Network Plug
4
Waterproof Endcap
5
Waterproof Rubber Gasket
6
Lock Nut
7
Network Cable from Router/Switch
