HIKVISION DS-2TD2466-50Y User Manual

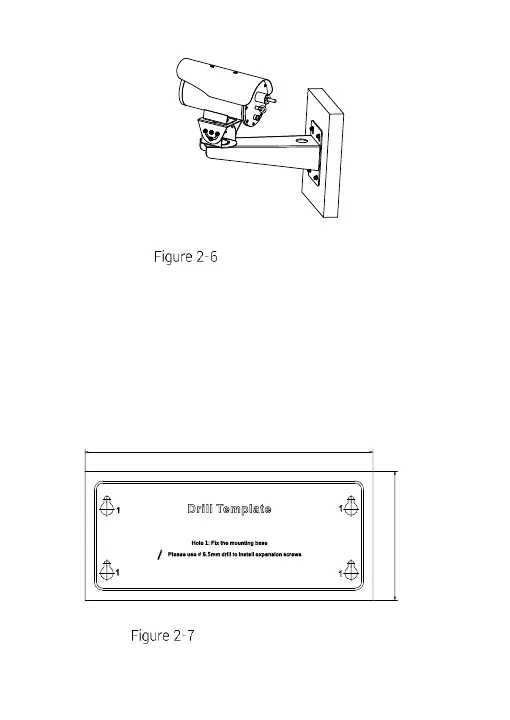

Finish the Installation
2.2.2 Installing Junction Box
Steps:
1. Attach the drill template (supplied) to the place where you
want to fix the junction box, and then drill the screw holes in
the wall according to the drill template.
270 mm (10.6'')
120 mm
(4.7'')
Drill Template (Junction Box)
