Camera
PT Joint Top

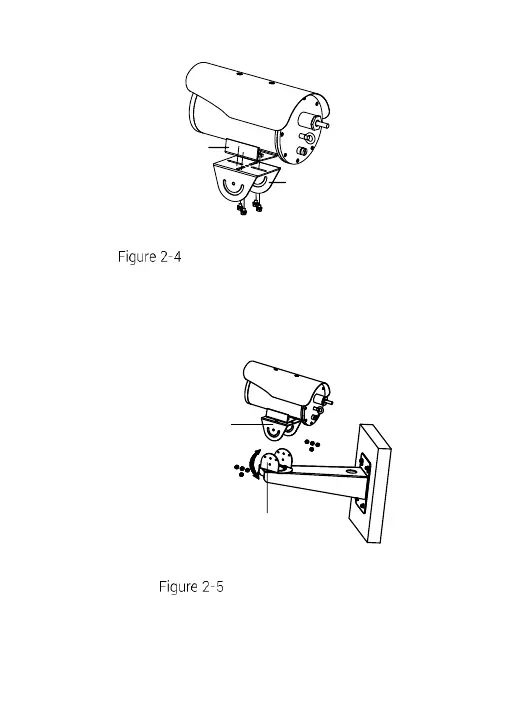

Fix the PT Joint Top with Camera
4. Fix the PT joint top with the PT joint bottom with M6× 12
screw (with flat washer and spring washer).
5. Adjust the camera direction (tilt range: -45° to +45° ).
PT Joint Bottom
PT Joint Top
Tilt Range (-45° to +45° )
Secure the PT Joint
6. Tighten the screws of the PT joint to secure the bullet camera
onto it.
