Bracket
Body
Wall

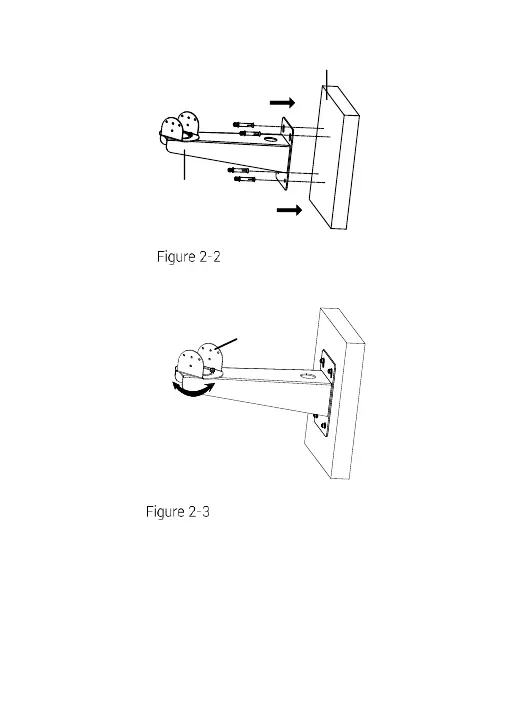

Fix the Bracket Body
4). Adjust the bracket direction (pan range: -45° to +45° ).
-45° to +45°
PT Joint Bottom
Adjust Bracket Direction
3. Fix the PT joint top with the camera with the 1/4UNC× 12
screw (with flat washer and spring washer).
