HIKVISION DS-2TD2466-50Y User Manual

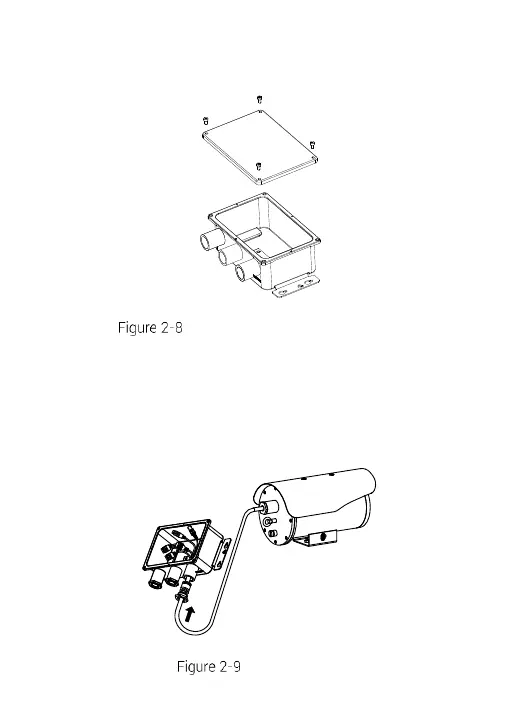

2. Use the Allen wrench to loosen the four screws of the
junction box cover.
Disassemble Junction Box Cover
3. Align the screw holes to the drill template and install the
junction box with four PA5× 25 screws.
4. Connect the cables.
1) Loosen the waterproof nut with camera silk-screen on it,
and take away the sealing ring.
Drill Template

HIKVISION DS-2TD2466-50Y Specifications

General

Brand	HIKVISION
Model	DS-2TD2466-50Y
Category	Security Camera
Language	English
