You can set the preset in live view interface before and call the preset in the
temperature measurement and alarm interface.
You can set/ call/ clear the preset in temperature measurement interface.
Click Synchronize FOV this button to synchronize the FOV of thermal light channel
and optical light channel.
4. Configure the parameters.
1) Set the alarm rule: Select a temperature measurement rule from the rule list and
configure the parameters.
Name: You can customize the rule name.
Type: Select Point, Line, or Area as rule type.
Emissivity: Set the emissivity of your target. The emissivity of each object is different,
you can refer to the Quick Start Guide Appendix for details.
Distance (m): The straight-line distance between the target and the device.
Reflective Temperature: If there is any target with high emissivity in the scene, check
the checkbox and set the reflective temperature to correct the temperature. If no
such target exists, uncheck the checkbox.
Tolerance Temperature: The device judges whether the triggered alarm stops until
the device temperature/temperature difference is lower than rule temperature by
tolerance temperature. E.g., set tolerance temperature as 3°C, set alarm temperature
as 55°C, and set pre-alarm temperature as 50°C. The device sends pre-alarm when its
temperature reaches 50°C and it alarms when its temperature reaches 55°C and only
when the device temperature is lower than 52°C will the alarm be cancelled.
2) Set the alarm rules.
For Point Rule:
a) Click to show the Alarm Rule setting interface.

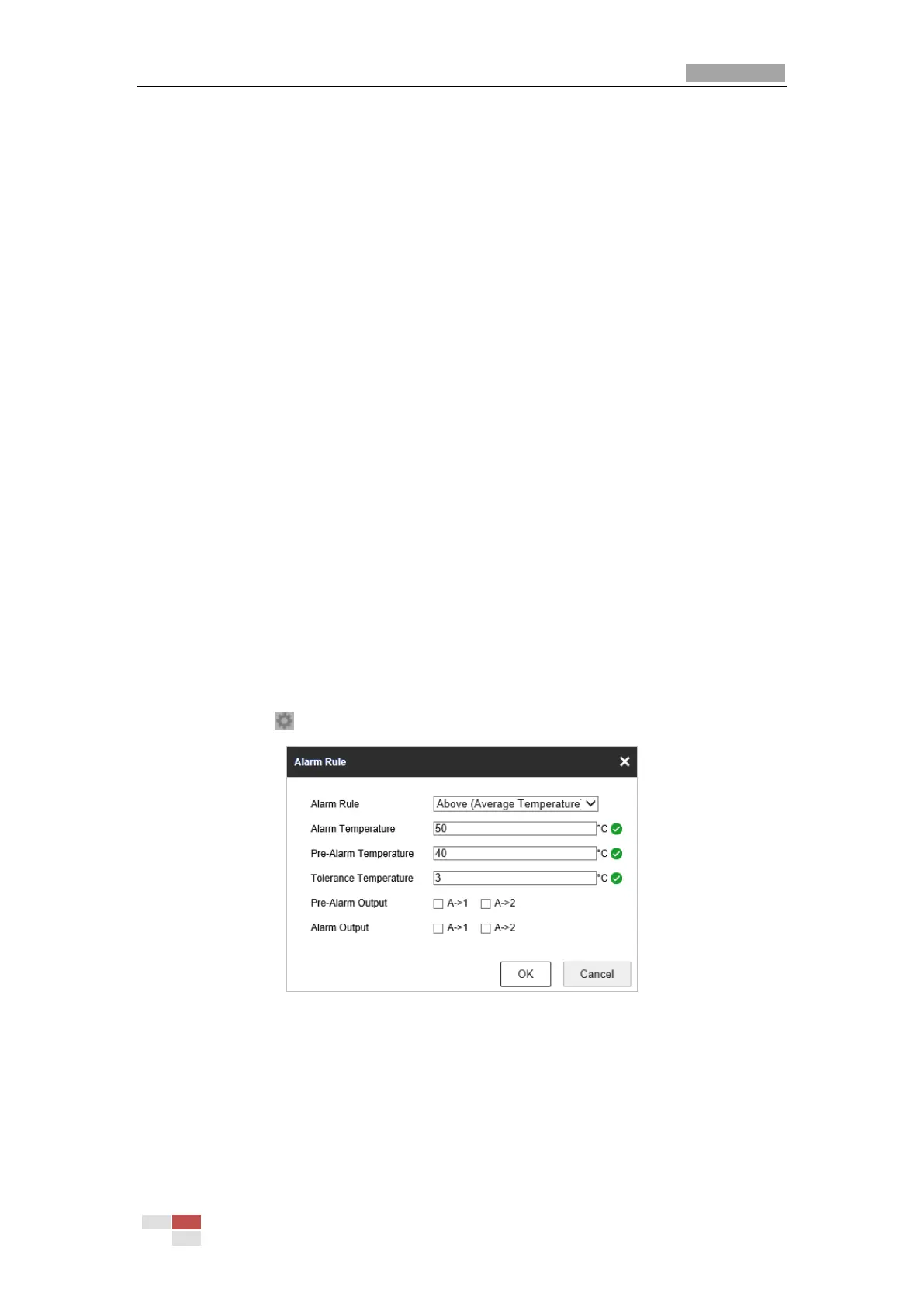

Figure 5-28 Alarm Rule Settings (Point)
b) Set the alarm rule.
c) Set the Alarm Temperature, Pre-Alarm Temperature, and Tolerance Temperature.
d) Set the Pre-Alarm Output and Alarm Output with the connected alarm sensor and
alarm device.
E.g., select Alarm Rule as Above (Average Temperature), and set the Alarm
Temperature to 50 °C, and the device alarms when its average temperature is higher
