HIKVISION DS-3E0105P-E User Manual

Unmanaged PoE Switch/User Manual
8

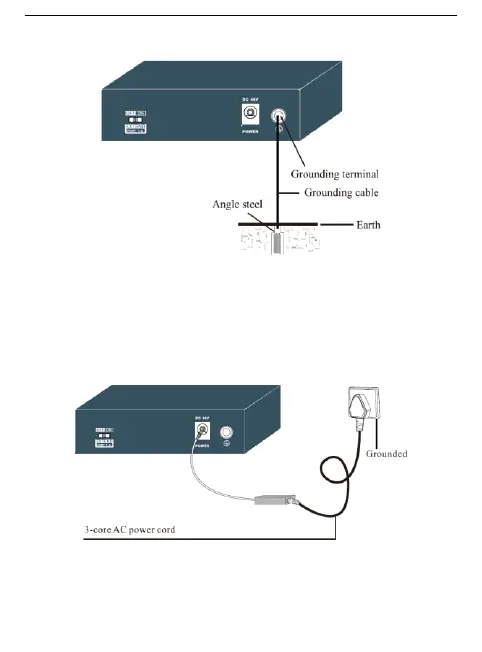

If both ground bar and the environment for burying the grounding body are not available, use
the protecting earth (PE) wire.
Make sure that the switch adopts 3-core cable with the PE wire, and the PE wire of the AC
power supply has been well grounded in the power distribution room or at the side of the AC
power supply transformer.

HIKVISION DS-3E0105P-E Specifications

General

Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	5
Maximum data transfer rate	100 Mbit/s
Input voltage	51 V
Output current	1.25 A
Power supply included	Yes
Power consumption (max)	63 W
Surge protection voltage	4 kV
Power consumption (typical)	632 W
Number of power supply units	1
10G support	No
Switch type	Unmanaged
Stackable	-
Product color	Blue
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Total Power over Ethernet (PoE) budget	58 W
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet (PoE) power per port	15.4 W
MAC address table	1000 entries
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	93.3 mm
Width	132 mm
Height	27.6 mm
Weight	299 g
