User Manual of DS-7000HI-S Series Net DVR
Page 16

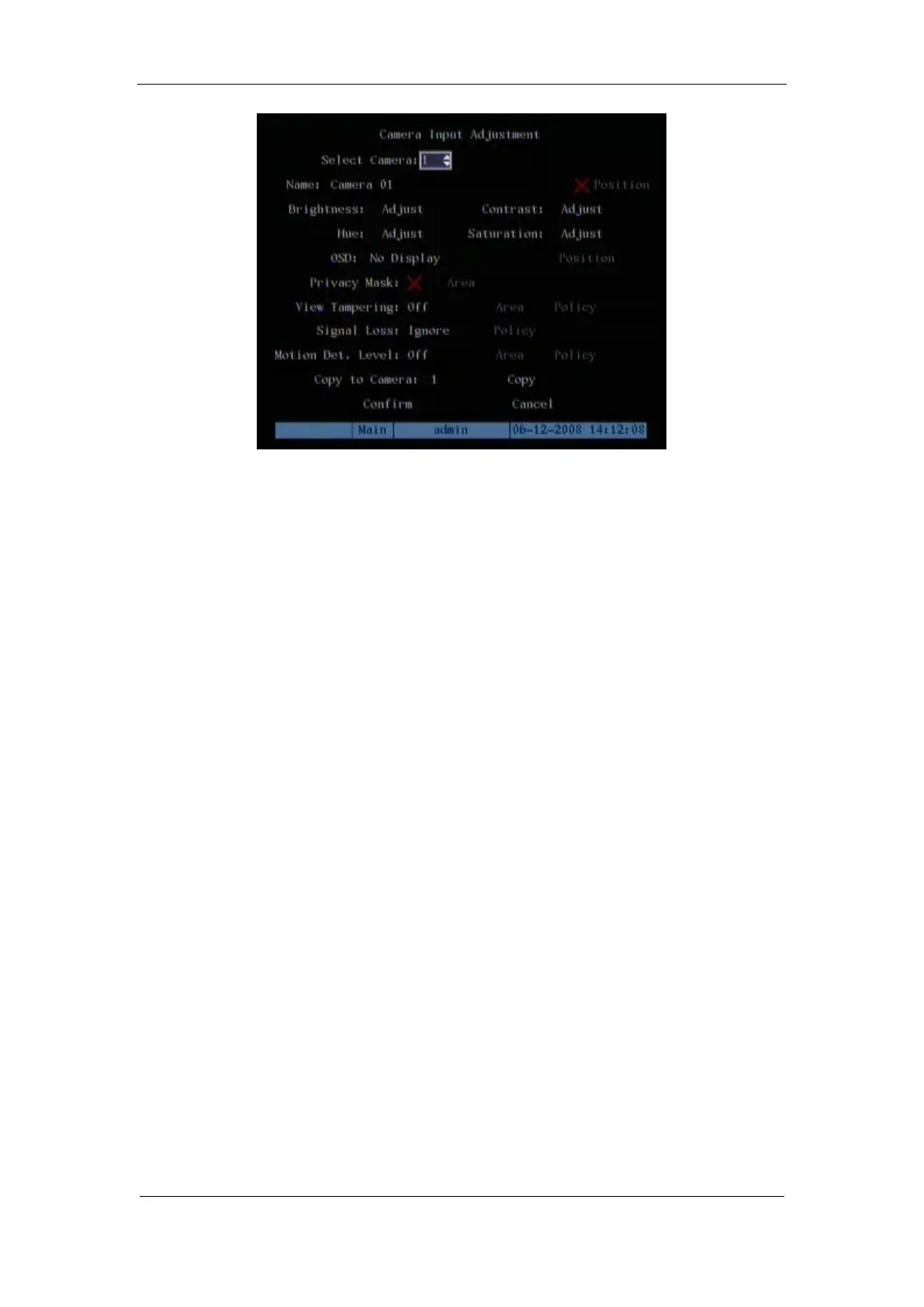

Each menu contains different kinds of items. There is a small rectangular frame named
“Active Frame” which is pointing to the selected item. This “Active Frame” can be moved by
[]or[]keys. There are such kinds of menu items:
1. Check Box: Provide 2 options, “” means enable and “×” means disable. You can use
[ENTER]or[EDIT]key to switch over.
2. List Box: Provide more than 2 options. However, only one of them can be selected. You
can use[↑]and[↓]to select one option. For example, on the right side of “Select Camera”,
there is a list box for you to select one camera.
3. Edit Box: This is for you to input characters. Press[EDIT]key to enter edit status, you
can input characters as follows:
a) Press[A]key to select number, upper case, lower case or symbols;
b) Use[]and[]keys to move cursor;
c) Use[EDIT]key to delete the charcter in front of cursor;
d) Press[ENTER]or[ESC]to exit edit.
4. Button: Excute a special function or enter next sub-menu. For example, press “Policy”
button to enter sub-menu. Press[Confirm]to save parameters and return to parent menu.
Press[Cancel]button to cancel and return to parent menu. The button in grey means it
can be operated only after it is enabled.
How to exit menu
Press[PREV]key to exit menu and return to preview mode.
