User Manual of DS-7000HI-S Series Net DVR
Page 10
Chapter3 Operational Instructions

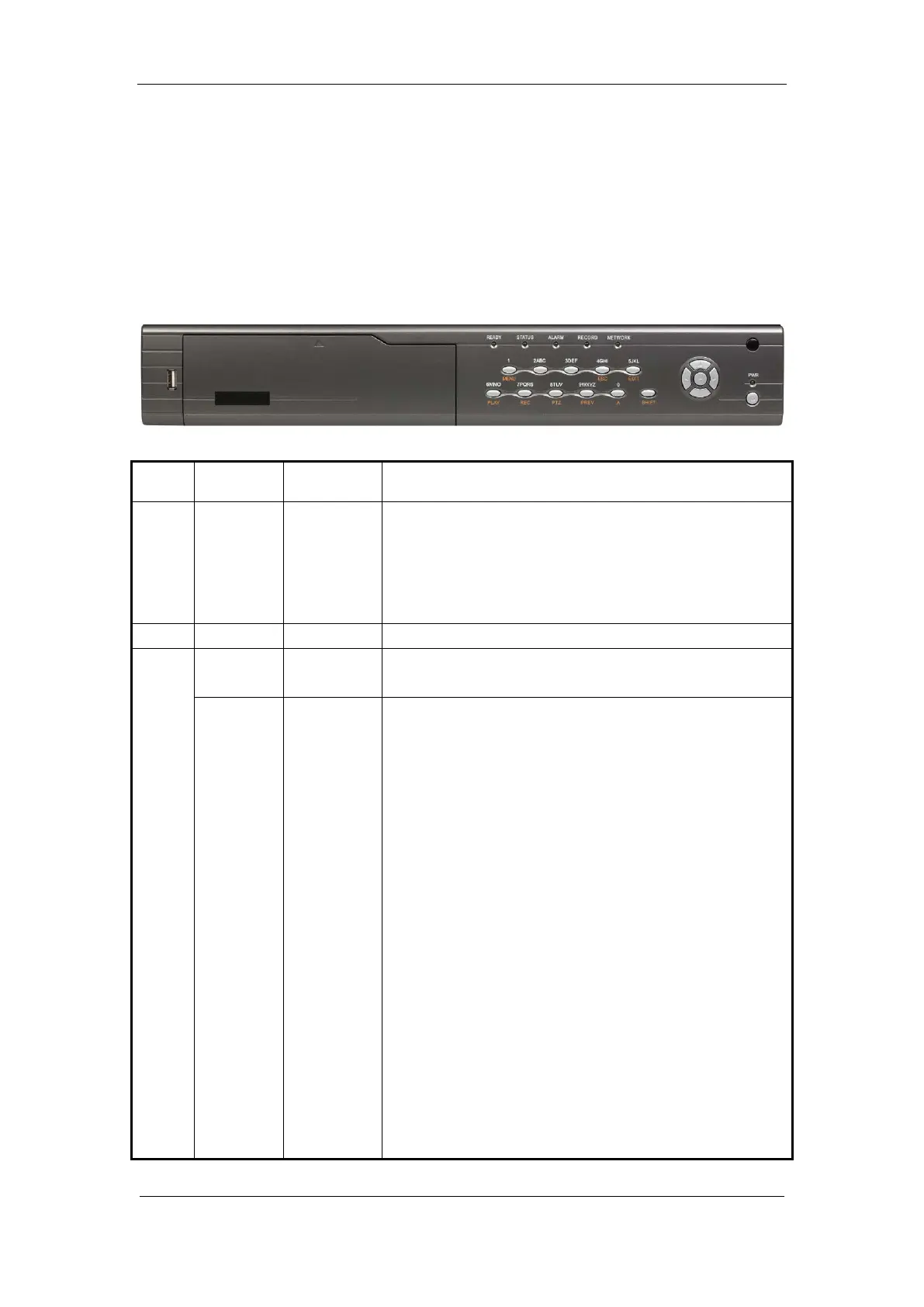

3.1 Front Panel
Index Type Name Description
1 State
Lamps
READY
STATUS
ALARM
RECORD
NETWORK
DVR is ready.
Green means you can use IR remote control.
Red means there is an alarm.
Twinkling red means reading or writing HDD.
Network status.
2 Lamp IR receiver.
3
Numeric
Keys
Input number, l
ower case, upper case character and
symbols.
Function
Keys
MENU
2
3
ESC
EDIT
PLAY
REC
PTZ
PREV
A
1. Switch from preview mode to the main menu;
2. Brush control short key [WIPER].
3.
Press [MENU] for more than 5 seconds to cancel
button beep sound.
[ZOOM-] in PTZ control, SPOT switch button
[ZOOM+] in PTZ control.
Cancel and back to parent menu.
1. In edit state, delete the current cursor character;
2. [IRIS+]in PTZ control;
3. Select or × to enable or disable.
1. Local playback;
2. [AUTO] in PTZ control.
1. Manual record;
2. [SHOT] in PTZ control (adjust preset).
1. Enter PTZ control mode;
2. [IRIS-] in PTZ control..
1. Multi screen preview switch;
2. Switch from menu mode to preview mode;
[FOCUS-] in PTZ control.
