User Manual of DS-7000HI-S Series Net DVR
Page 29
2. Playback by Time: In the playback interface, select channel number, record type and time
section, move “Active Frame” to “Play” button, press[ENTER]key, DVR will start to playback
based on time section.
3. Search by Card No and Playback file: In the playback interface, select channel number,
record type, enable card No. search option (“”) and input the card number, move “Active
Frame” to “Search” button, press[ENTER]key, DVR will search and list the matched files. If the
matched files are more than 8, you can use numeric keys or[↑][↓]keys to select page.
Use[↑][↓]keys to move scroll bar to the file, press[ENTER]key to playback the selected file. If
DVR can not find the matched files, a message dialog will be pop-up.
Operation when playback

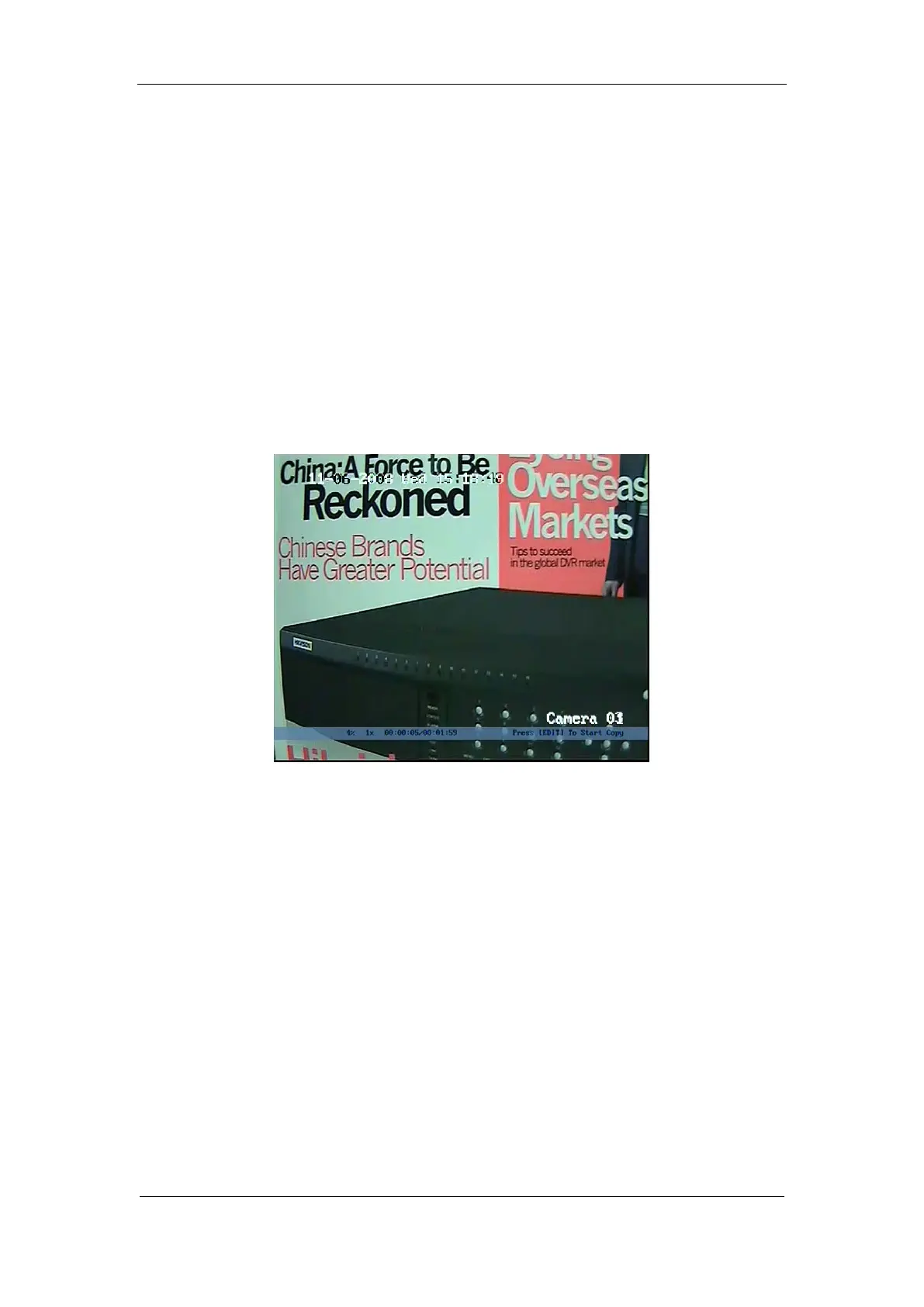

Playback picture:
Playback
At the bottom of image, there is an information bar and the following information is included:
Volume, Play Progress, Play Speed, Played Time and File Total Time.
Display/Hide information bar: [MENU]
Open/Close sound: [PLAY]
Adjust play progress: [←](Backward),[→](Forward). The unit is “%”.
Adjust play speed: Normal speed is “1x”. Use [↑]to increase play speed ( 2X, 4X,
8X and MAX). Use[↓]to decrease play speed (1/2X, 1/4X, 1/8X and Frame by
Frame)
Pause/Continue: Press [ENTER]to pause/continue playback. If played frame by
frame, Press[ENTER]to paly one frame.
Copy segment:[EDIT]
Exit: [ESC]
When in the single playback mode, you can press [REC] button and use [←] [→] [↑] [↓]
buttons to select an area, then press [ENTER] button, the selected area will be enlarged in 4 times.
