Digital Video Recorder Quick Start Guide
6
Front Panel Plug-Pull Installation
Front panel plug-pull installation is applicable when it requires to open the device front panel with key.

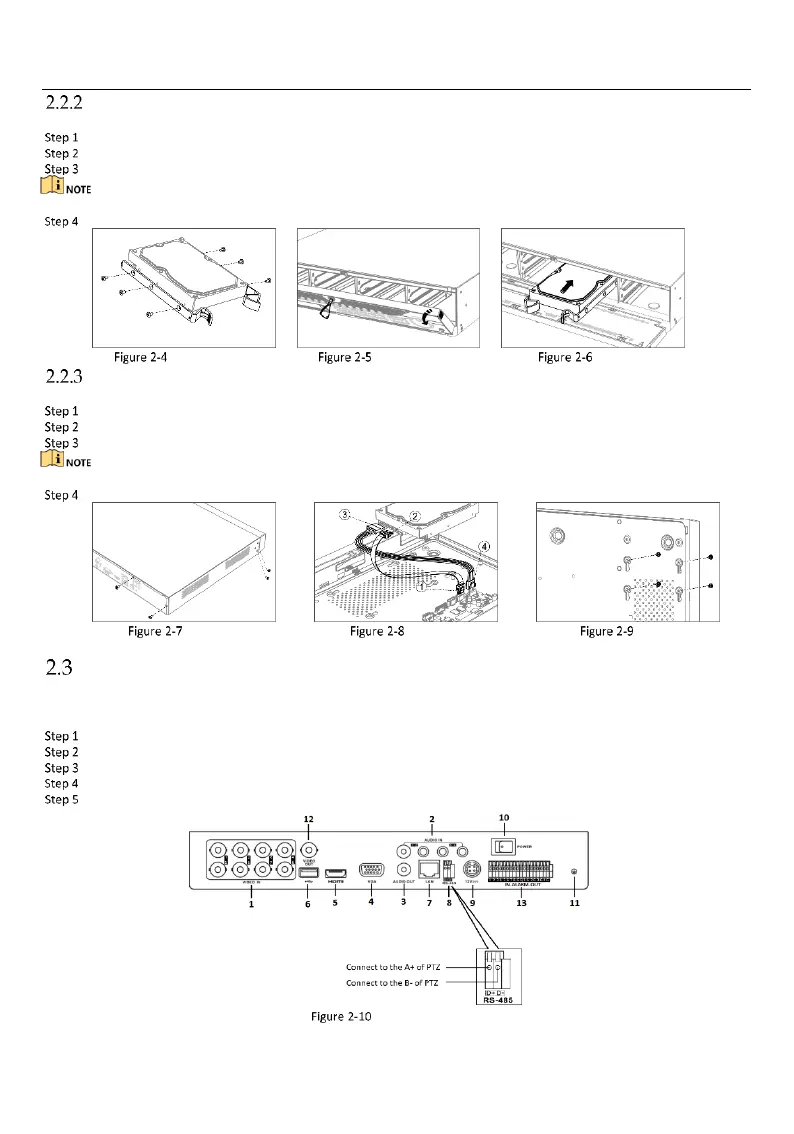

Fix mounting ears to HDD with screws. Refer to Figure 2-4.
Use attached key to unlock the front panel, and press buttons on both sides to open the front panel. Refer to Figure 2-5.
Insert the HDD until it is firmly fixed. Refer to Figure 2-6
You can repeat the steps above to install other HDDs.
Close the front panel and lock it with key.
Fix-on-Bottom Installation
Fix-on-bottom installation is applicable when it requires to install the HDD at the internal bottom.
Unfasten screws on each panel to remove the device cover. Refer to Figure 2-7.
Connect the data cable and power cable. Refer to Figure 2-8.
Match HDD screw threads with the reserved holes on the device bottom, and fix HDD with screws. Refer to Figure 2-9.
You can repeat the steps above to install other HDDs.
Reinstall the device cover and fasten screws.
RS-485 and Controller Connection
Use RS- 485 interface to connect PTZ with DVR.
Before you start
Ensure both controller and DVR are grounded.
Pull out the pluggable block at the RS-485 terminal block.
Press and hold the orange part of the pluggable block, insert signal cables into slots.
Release the orange part. Ensure signal cables are in tight.
Connect A+ on PTZ to D+ on terminal block and B- on controller to D- on terminal block. Fasten stop screws.
Plug pluggable block back into terminal block.
Controller Connection
