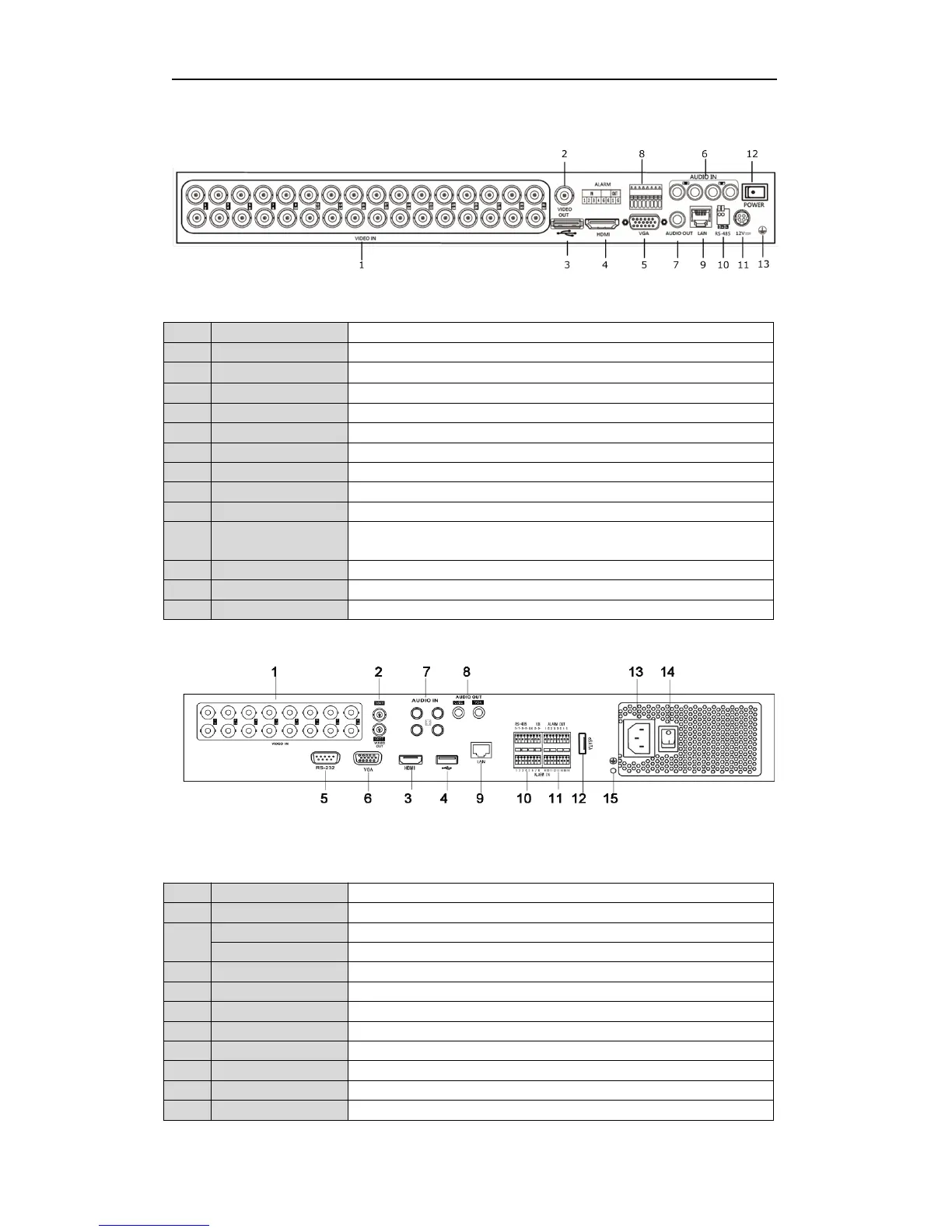

Quick Operation Guide of DS-7200-SH/SV&DS-7300-SH Series DVR
9
Table 6 Specifications for DS-7200HVI-SH
Model
DS-7204HVI-SH
DS-7208HVI-SH
DS-7216HVI-SH
Video/Audio
input
Video
compression
H.264
Video input
4-ch
8-ch
16-ch
Video input
interface
BNC (1.0 Vp-p, 75 Ω), PAL /NTSC self-adaptive
Audio
compression
G.711
Audio input
1-ch, RCA (2.0 Vp-p, 1 kΩ)
Two-way audio
input
1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Video/Audio
output
HDMI/VGA
output
1-ch, resolution:
1920 × 1080P / 60 Hz ,1600 × 1200 / 60 Hz,1280 × 1024 / 60 Hz, 1280 ×
720 / 60 Hz, 1024 × 768 / 60 Hz
CVBS output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
Encoding
resolution
4CIF / 2CIF / CIF / QCIF
Frame rate
Mode1:
4CIF / 2CIF @ 12 fps or
CIF / QCIF @ 25 fps (P) /
30 fps (N)
Mode2:
Channel 1: 4CIF / 2CIF /
CIF / QCIF @ 25 fps (P) /
30 fps (N),
Channel 2~4: CIF / QCIF
@ 25 fps (P) / 30 fps (N)
Mode1:
4CIF / 2CIF @ 8 fps
or CIF / QCIF @ 25
fps (P) / 30 fps (N)
Mode2:
Channel 1& Channel
5: 4CIF / 2CIF / CIF /
QCIF @ 25 fps (P) /
30 fps (N),
Other Channels: CIF /
QCIF @ 25 fps (P) /
30 fps (N)
Mode1:
4CIF / 2CIF @6fps
or CIF / QCIF @ 25
fps (P) / 30 fps (N)
Mode2:
Channel 1: 4CIF /
2CIF / CIF / QCIF
@ 25 fps (P) / 30
fps (N),
Channel 2~16: CIF
/ QCIF @ 25 fps
(P) / 30 fps (N)
Video bit rate
32 Kbps ~ 3072 Kbps, or user defined (Max. 3072 Kbps)
Audio output
1-ch, RCA (Linear, 1 kΩ)
Audio bit rate
64 Kbps
Dual-stream
Support;
Sub-stream: CIF @ 6 fps, QCIF @ 25 fps (P) /30 fps (N))
Stream type
Video, Video & Audio
Synchronous
playback
4-ch
8-ch
16-ch
Hard disk
SATA
1 SATA interface
Capacity
Up to 4TB capacity
External
interface
Network
interface
1, RJ45 10M / 100M Ethernet interface
Serial interface
1 RS-485 interface, half-duplex
USB interface
2, USB 2.0
General
Power supply
12 VDC
Consumption
(without HDD or
DVD-R/W)
≤ 10 W
≤ 10 W
≤ 15 W
Working
temperature
-10 ºC ~+55 ºC
Working
humidity
10% ~ 90%
Chassis
Standalone 1U chassis
Dimensions
(W × D × H)
315 × 230 × 45 mm
Weight (without
HDD or
DVD-R/W)
≤ 2 kg
≤ 4 kg
≤ 4 kg
