HIKVISION DS-7204HVI-SH series - Specifications

Quick Operation Guide of DS-7200-SH/SV&DS-7300-SH Series DVR
8
Specifications

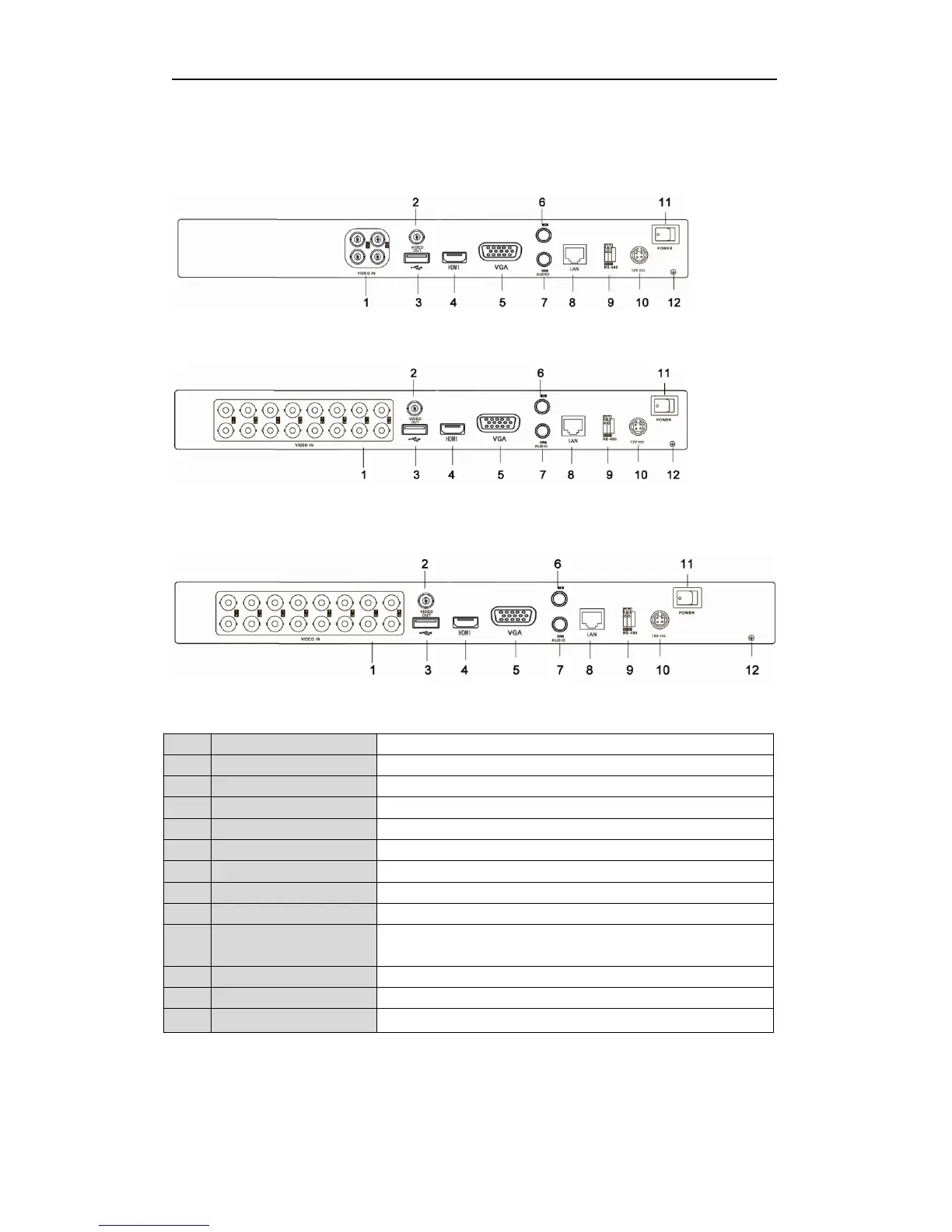

Table 5 Specifications for DS-7200HFI-SH
Model
DS-7204HFI-SH
DS-7208HFI-SH
DS-7216HFI-SH
Video/Audio
input
Video compression
H.264
Video input
4-ch
8-ch
16-ch
Video input interface
BNC (1.0 Vp-p, 75 Ω), PAL /NTSC self-adaptive
Audio compression
G.711
Audio input
1-ch, RCA (2.0 Vp-p, 1 kΩ)
Two-way audio input
1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Video/Audio
output
HDMI/VGA output
1-ch, resolution:
1080P:
1920×1080/60Hz
UXGA:
1600×1200/60Hz
SXGA:
1280×1024/60Hz
720P: 1280×720/60Hz
XGA: 1024×768/60Hz
1-ch, resolution:
1080P: 1920×1080/60Hz,
SXGA: 1280×1024/60Hz,
720P: 1280×720/60Hz,
XGA: 1024×768/60Hz
CVBS output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
Encoding resolution
4CIF / 2CIF / CIF / QCIF
Frame rate
25 fps (P) / 30 fps (N)
Video bit rate
32 Kbps ~ 3072 Kbps, or user defined (Max. 3072 Kbps)
Audio output
1-ch, RCA (Linear, 1 kΩ)
Audio bit rate
64 Kbps
Dual-stream
Support; Sub-stream: CIF / QCIF @ 25 fps (P) / 30 fps (N))
Stream type
Video, Video & Audio
Synchronous
playback
4-ch
8-ch
16-ch
Hard disk
SATA
1 SATA interface
2 SATA interfaces
2 SATA interfaces
Capacity
Up to 4TB capacity
External
interface
Network interface
1, RJ45 10M / 100M Ethernet interface
Serial interface
1 RS-485 interface, half-duplex
USB interface
2, USB 2.0
General
Power supply
12 VDC
Consumption
(without HDD or
DVD-R/W)
≤ 10 W
≤ 15 W
≤ 20 W
Working
temperature
-10 ºC ~+55 ºC
Working humidity
10% ~ 90%
Chassis
Standalone 1U chassis
19-inch
rack-mounted 1U
chassis
19-inch
rack-mounted 1U
chassis
Dimensions
(W × D × H)
315 × 230 × 45 mm
445 × 290 × 45 mm
445 × 290 × 45 mm
Weight
(without HDD or
DVD-R/W)
≤ 2 kg
≤ 4 kg
≤ 4 kg
