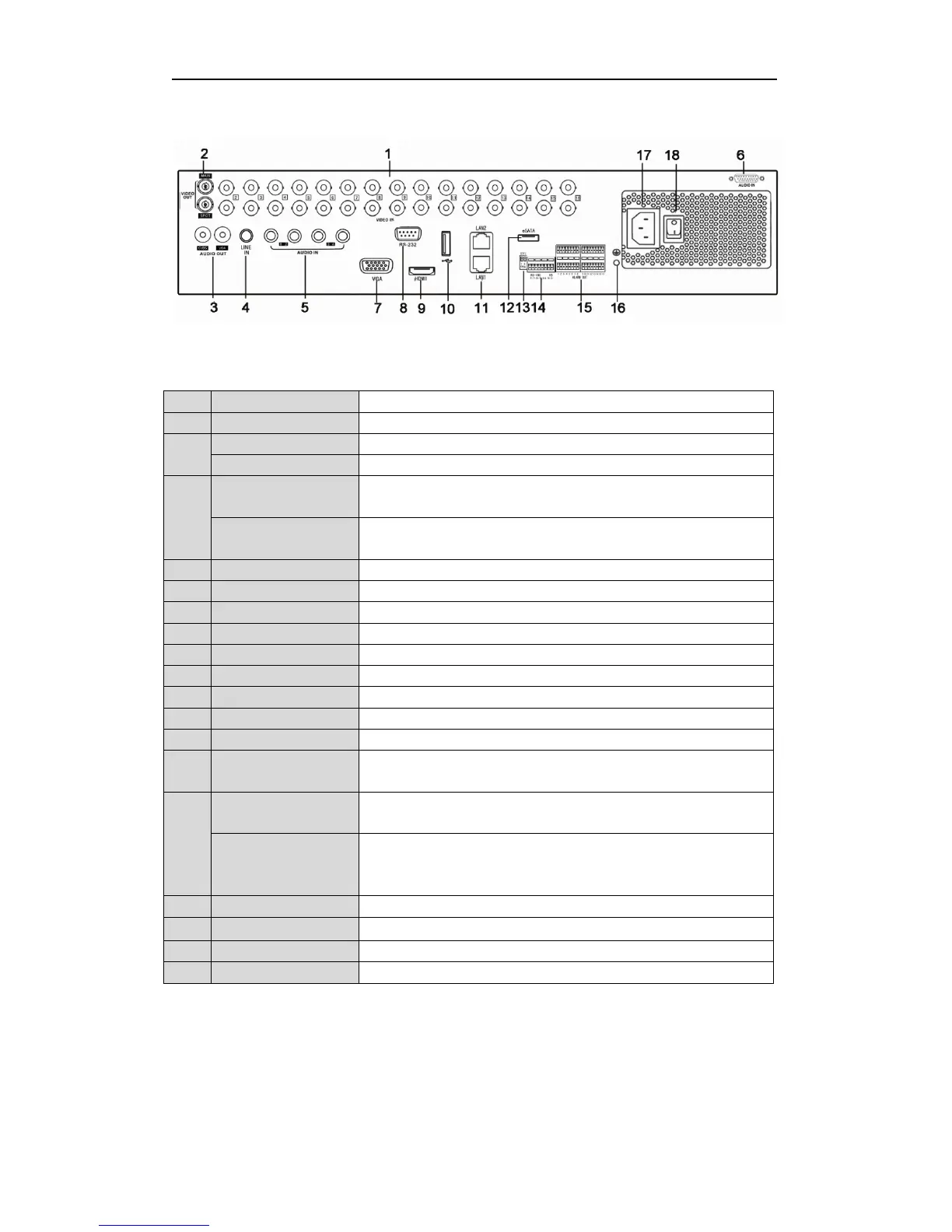

Quick Operation Guide of DS-7200-SH/SV&DS-7300-SH Series DVR
11
Table 8 Specifications for DS-7200HWI-SH
Model
DS-7204HWI-SH
DS-7208HWI-SH
DS-7216HWI-SH
Video/Audio
input
Video
compression
H.264
Video input
4-ch
8-ch
16-ch
Video input
interface
BNC (1.0 Vp-p, 75 Ω), PAL /NTSC self-adaptive
Audio
compression
G.711
Audio input
1-ch, RCA (2.0 Vp-p, 1 kΩ)
Two-way audio
input
1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Video/Audio
output
HDMI/VGA
output
1-ch, resolution:
1080P: 1920×1080/60Hz; SXGA: 1280×1024/60Hz;
720P: 1280×720/60Hz; XGA: 1024×768/60Hz
CVBS output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
Encoding
resolution
WD1 / 4CIF / 2CIF / CIF / QCIF
Frame rate
25 fps (P) / 30 fps (N)
Video bit rate
32 Kbps ~ 3072 Kbps, or user defined (Max. 3072 Kbps)
Audio output
1-ch, RCA (Linear, 1 kΩ)
Audio bit rate
64 Kbps
Dual-stream
Support; sub-stream @ CIF/ QCIF
Stream type
Video, Video & Audio
Synchronous
playback
4-ch
8-ch
16-ch
Hard disk
SATA
1 SATA interface
2 SATA interfaces
Capacity
Up to 4TB capacity for each disk
External
interface
Network
interface
1, RJ45 10M / 100M Ethernet interface
Serial interface
1 RS-485 interface, half-duplex
USB interface
2, USB 2.0
General
Power supply
12 VDC
Consumption
(without hard
disk or
DVD-R/W)
≤ 10 W
≤ 15 W
≤ 20 W
Working
temperature
-10 ºC ~+55 ºC
Working
humidity
10% ~ 90%
Chassis
Standalone 1U chassis
19-inch rack-mounted 1U chassis
Dimensions
(W × D × H)
315 × 230 × 45 mm
445 × 290 × 45mm
Weight (without
hard disk or
DVD-R/W)
≤ 2 kg
≤ 4 kg
≤ 4 kg
