HIKVISION DS-7208HGHI-SH

User Manual of Digital Video Recorder
28
10
Power Switch
Switch for turning on/off the device.
11
GND
Ground
12
Alarm In/Out (for
DS-7200HQHI-SH)
Connectors for alarm inputs and alarm outputs.

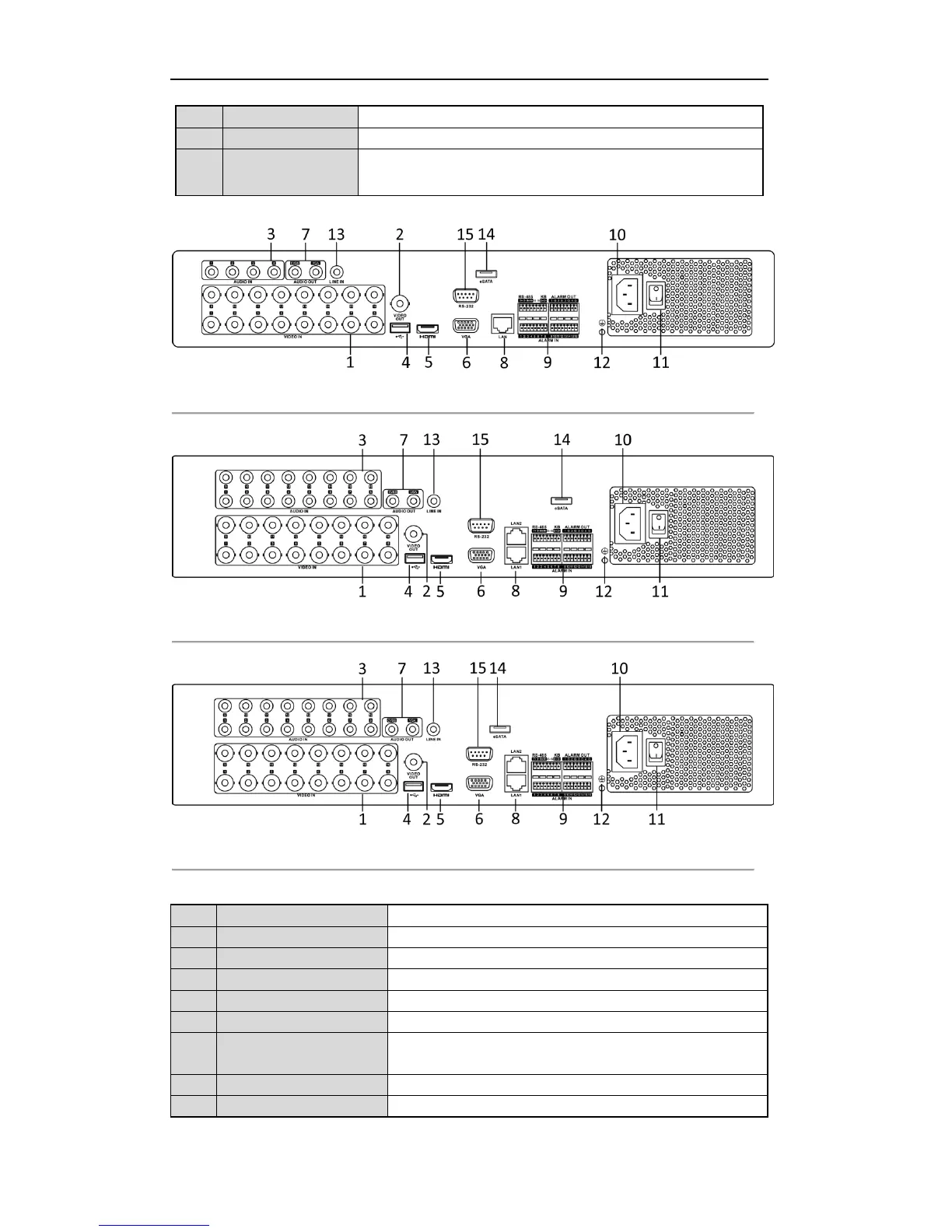

Figure 1. 12 DS-7300HQHI-SH and DS-7300HGHI-SH
Figure 1. 13 DS-8100HGHI-SH
Figure 1. 14 DS-8100HQHI-SH
Table 1. 11 Description of Front Panel
No.
Item
Description
1
VIDEO IN
BNC interface for TVI and analog video input.
2
VIDEO OUT
BNC connector for video output.
3
AUDIO IN
RCA connector
4
USB Port
Universal Serial Bus (USB) port for additional devices.
5
HDMI
HDMI video output connector.
6
VGA
DB15 connector for VGA output. Display local video output and
menu.
7
AUDIO OUT
RCA connector
8
Network Interface
Connector for network
