DS-72xxHUI-Kx, DS-72xxHQI-Kx Digital Video Recorder (DVR) User Manual
UM DS-72xxHUI-Kx, DS-72xxHQI-Kx 062817NA 121

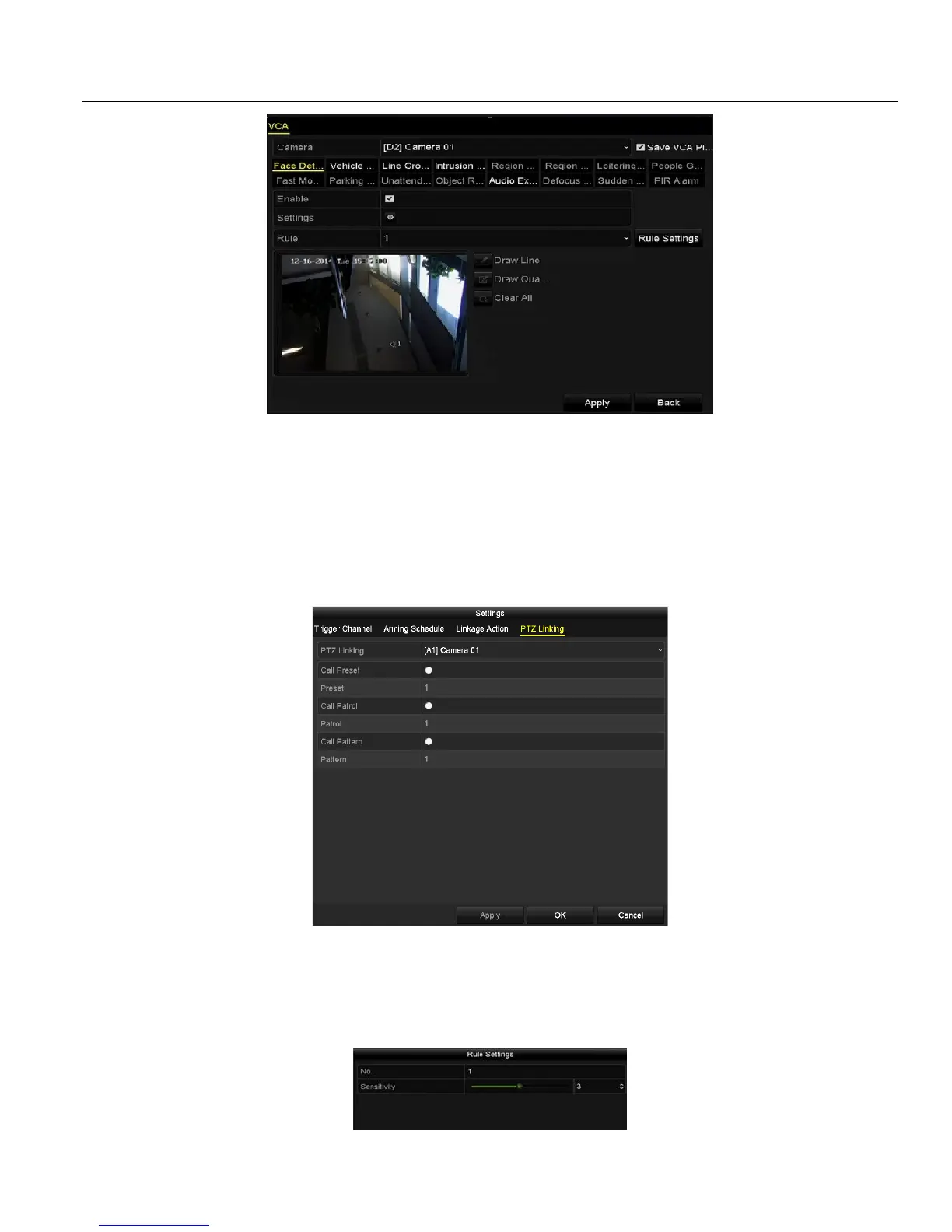

Figure 154, Face Detection
4. Set the VCA detection type to Face Detection.
5. Click SET to enter the face detection settings interface.
6. Configure the trigger channel, arming schedule, linkage action, and PTZ linking for the face detection
alarm.
Figure 155, PTZ Linking
7. Click the Rule Settings button to set the face detection rules. Drag slider to set the detection sensitivity.
• Sensitivity: Range [1-5]. The higher the value, the more easily the face can be detected.
Figure 156, Set Face Detection Sensitivity
