DS-72xxHUI-Kx, DS-72xxHQI-Kx Digital Video Recorder (DVR) User Manual
UM DS-72xxHUI-Kx, DS-72xxHQI-Kx 062817NA 153

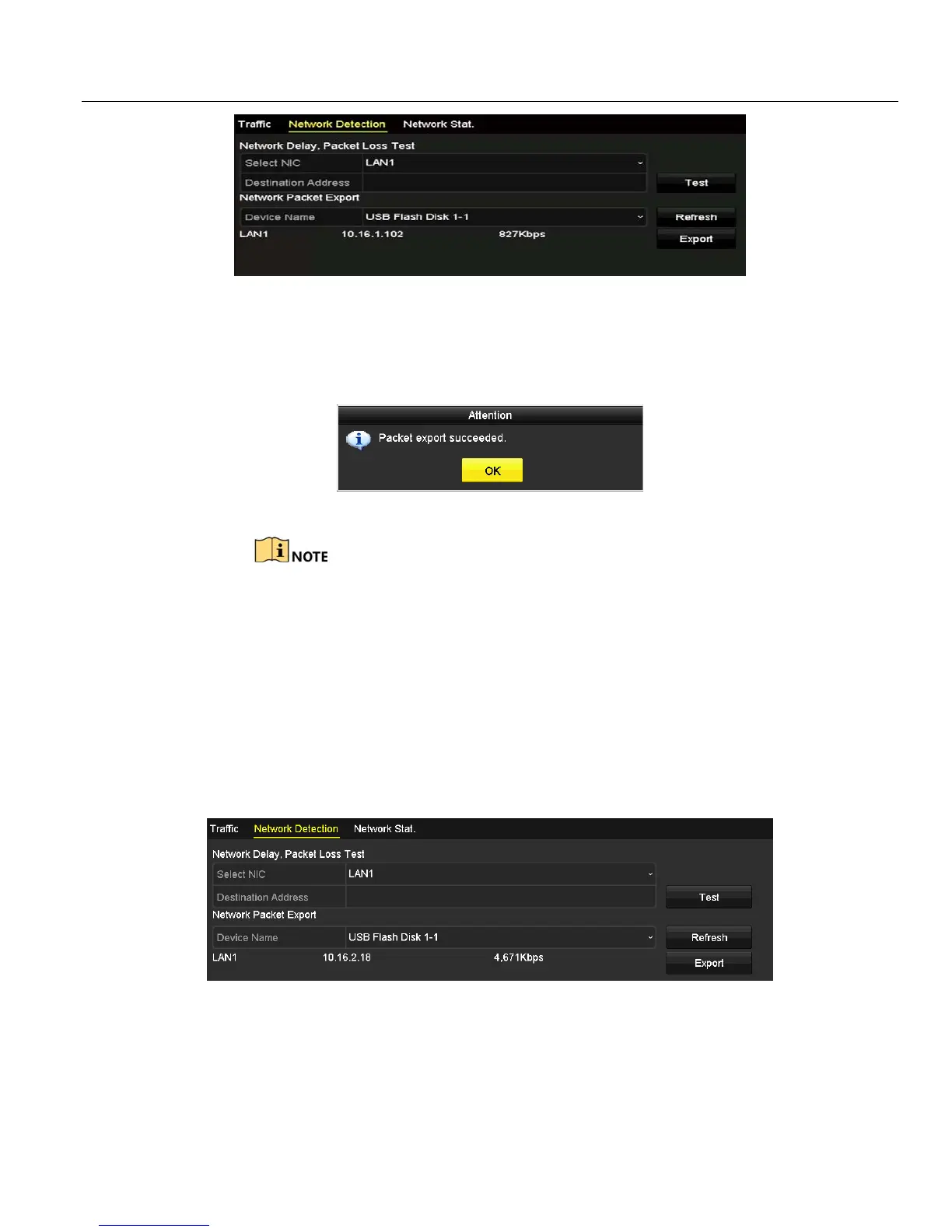

Figure 191, Export Network Packet
4. Click Export to start exporting.
5. After exporting is complete, click OK to finish the packet export.
Figure 192, Packet Export Attention
Up to 1 MB of data can be exported each time.
11.3.3 Checking Network Status
You can check the network status and quickly set the network parameters in this interface.
1. Enter the Network Traffic interface, Menu > Maintenan
ce > Net Detect.
2. Click the Network Detection tab to enter the Network Detection interface.
3. Click Status on the bottom right of the interface.
Figure 193, Checking Network Status
4. If the network is normal the following message box pops out:
