DS-72xxHUI-Kx, DS-72xxHQI-Kx Digital Video Recorder (DVR) User Manual
UM DS-72xxHUI-Kx, DS-72xxHQI-Kx 062817NA 163
7. Enter the cloud storage interface again about 20s later. When the Status shows online, it indicates
successful registration.
8. Configure the recording schedule.
a) Go back to enter the record interface.
b) Choose a camera from the Camera drop-down list.
c) Check the Enable Schedule checkbox to enable the schedule recording. For detailed recording
schedule information, refer to
5.2 Configuring Recording Schedule
.

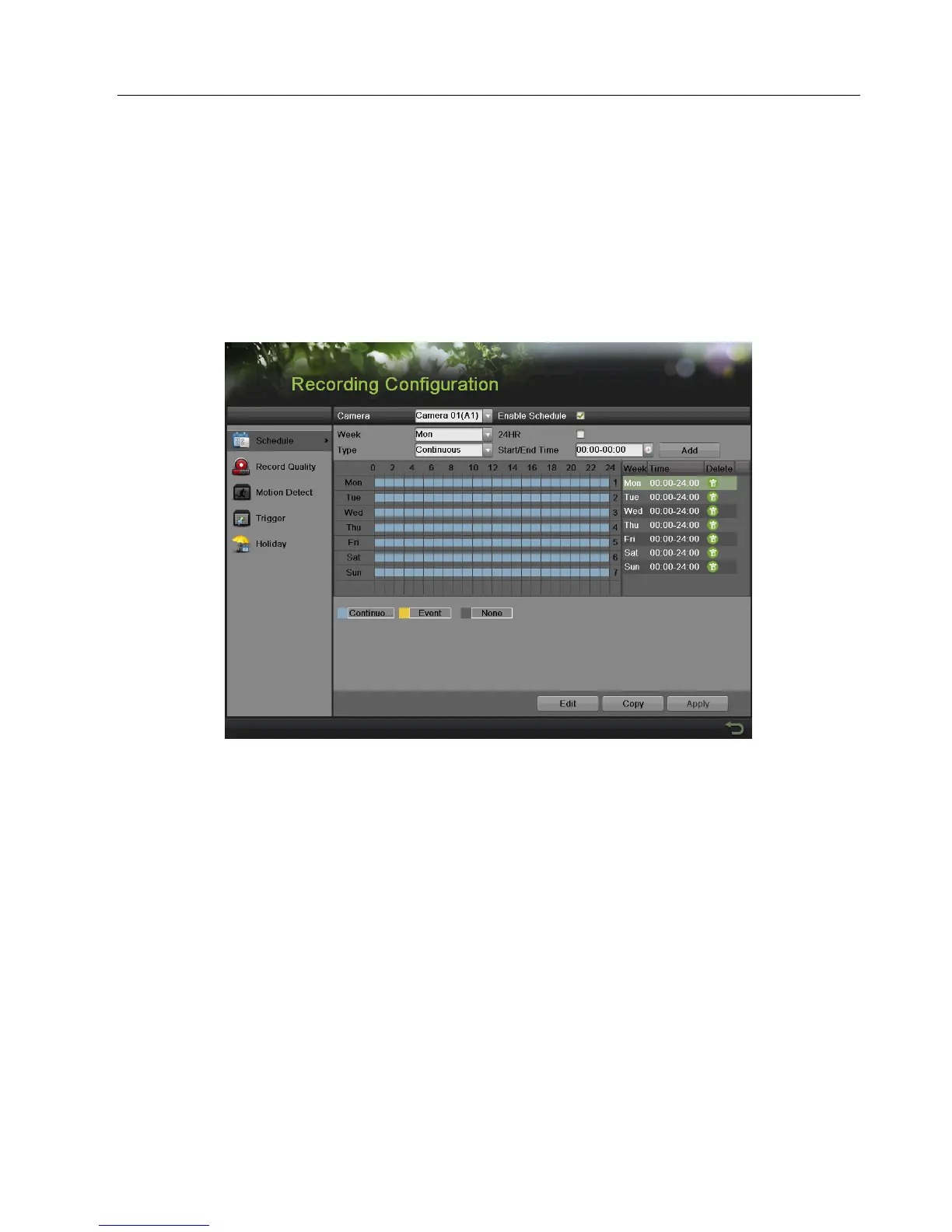

Figure 215, Record Schedule
9. Upload the event triggered recording files to the cloud storage.
a) Go back to enter the cloud storage interface.
b) Select the camera you have set in the recording schedule interface.
c) Select the upload type in the Upload Type text filed.
d) Check the Enable Event Upload checkbox.
e) Click Apply to finish the settings.
