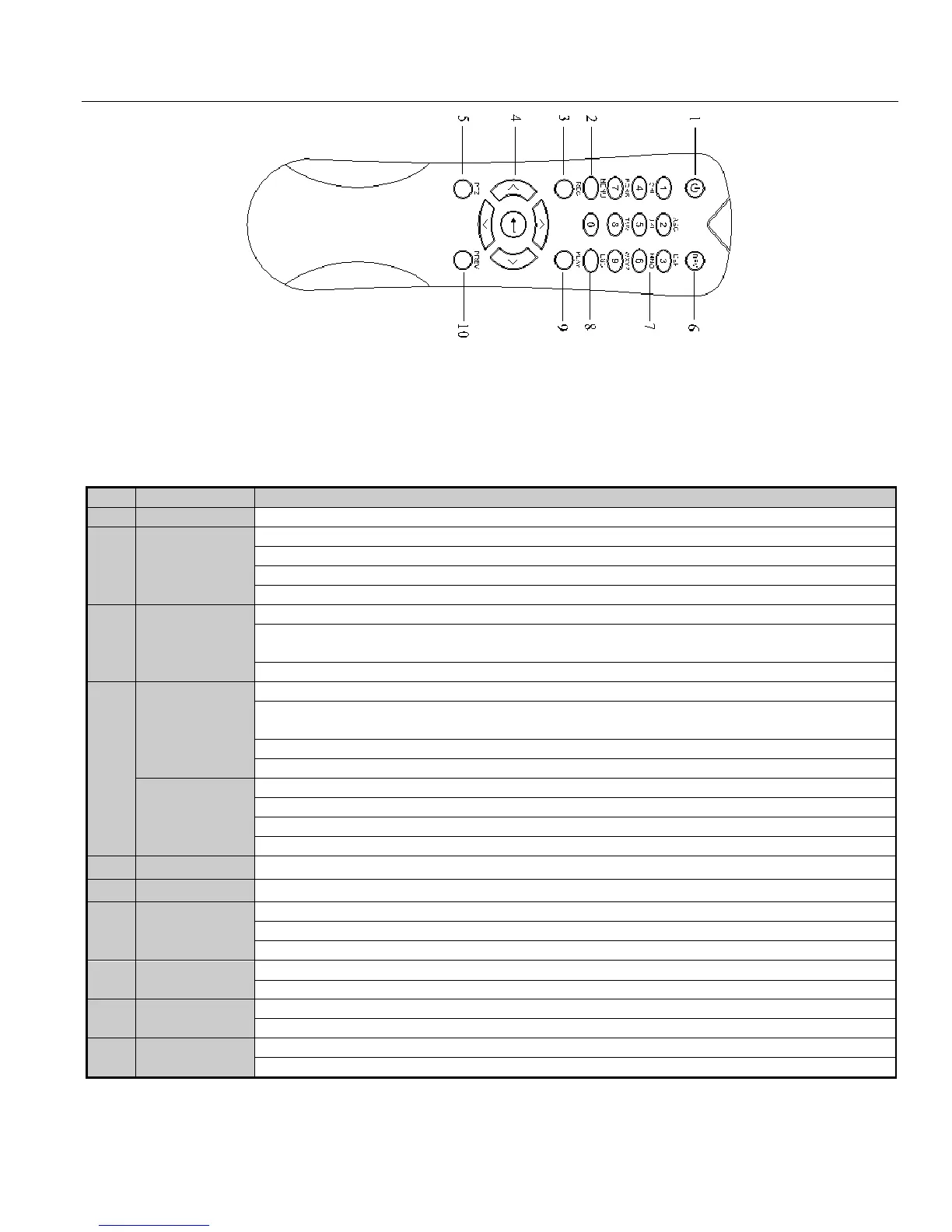

Figure 2, Remote Control
1.2.1 Using the Remote Control
The remote control keys resemble the ones on the front panel (see Table 1-2).
Table 1-2 Description of the IR Remote Control Buttons
Power on/off the device by pressing and holding the button for 5
2
MENU Button
ain menu (after successful login)
Press and hold the button for 5 seconds will turn off audible key beep
l mode, the MENU button will start wiper (if applicable)
In Playback mode, it is used to show/hide the control interface
3
REC Button
Enter the Manual Record setting menu
In PTZ control settings, press the button and then you can call a PTZ preset b
It is also used to turn audio on/off in the Playback mode
4
DIRECTION
Button
Navigate between different fields and items in menus
mode, the Up and Down button is used to speed up and slow down
. The Left and Right button will select the next and previous record files
In Live View mode, these buttons can be
used to cycle through channels
In PTZ control mode, it can control the movement of the PTZ camera
ENTER
Button
It can also be used to tick
In Playback mode, it can be used to play or pause the video
frame Playback mode, pressing the button will advance the video by a single frame
5
used to stop /start auto switch
6
Enables/Disables Remote Control
7
Alphanumeric
Buttons
Switch to the corresponding channel in Live view or PTZ Control mode
Input numbers and characters in Edit mode
Switch between different ch
annels in the Playback mode
8
ESC Button
Back to the previous menu
Press for Arming/disarming the device in Live View mode
9
PLAY Button
The button is used to enter the All
It is also used to auto scan in the PTZ Control menu
10
PREV Button
Switch between single screen and multi
In PTZ Control mode, it is used to adjust the focus in conjunction with the A/FOCUS+ button
