DS-72xxHUI-Kx, DS-72xxHQI-Kx Digital Video Recorder (DVR) User Manual
UM DS-72xxHUI-Kx, DS-72xxHQI-Kx 062817NA 47

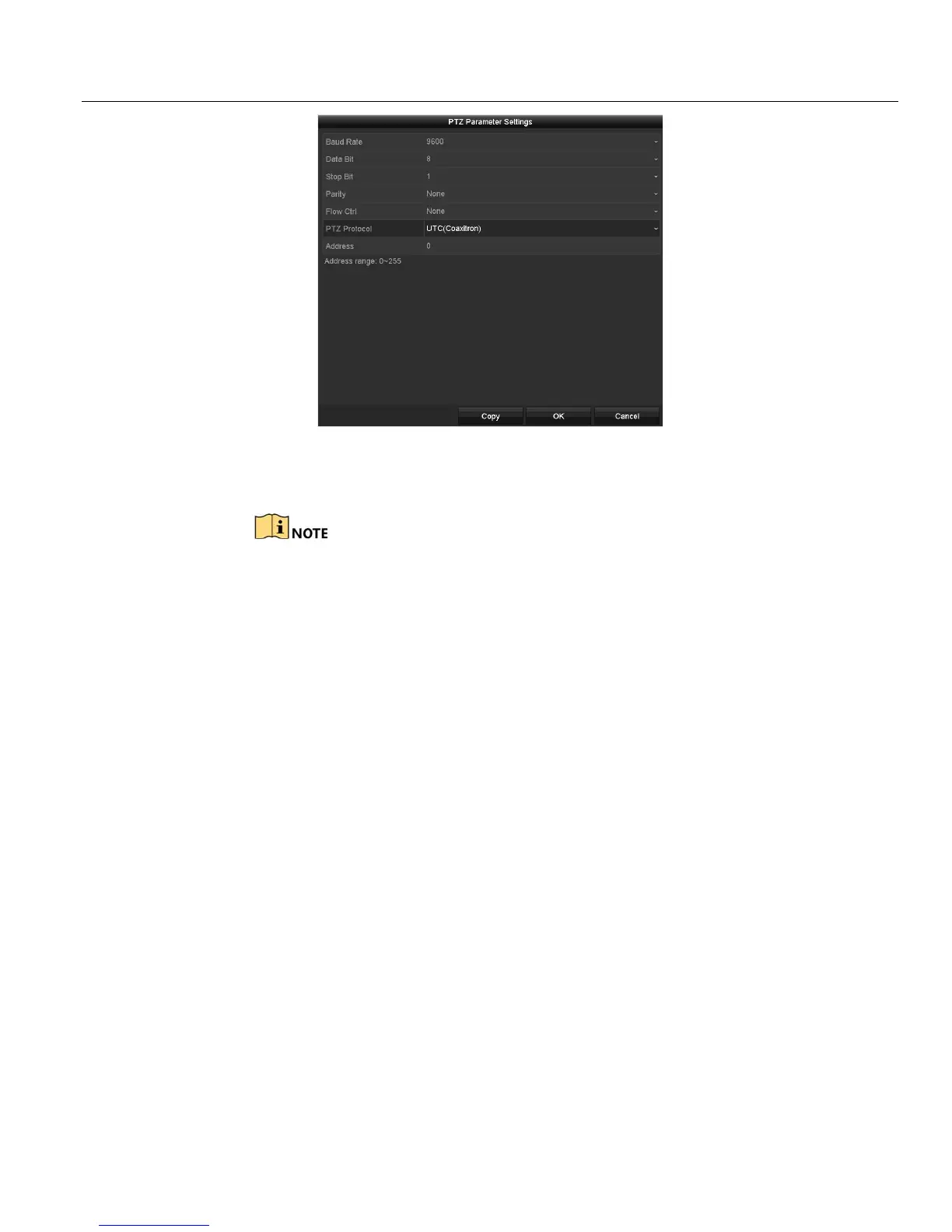

Figure 55, PTZ – General
4. Select the PTZ camera parameters from the drop-down list.
These parameters should be identical to the PTZ camera
parameters.
For an Up-the-Coax camera/dome, select the UTC PTZ protocol.
Make sure the protocol selected here is supported by the connected
camera/dome.
When the UTC protocol is selected, all the other parameters such as
baud rate, data bit, stop bit, parity, and flow control are not
configurable.
5. (Optional) Click C
opy to copy the settings to the other channels. Select the channels you want to copy to
and click OK to return to the PTZ Parameters Settings interface.
