DS-72xxHUI-Kx, DS-72xxHQI-Kx Digital Video Recorder (DVR) User Manual
66 UM DS-72xxHUI-Kx, DS-72xxHQI-Kx 062817NA

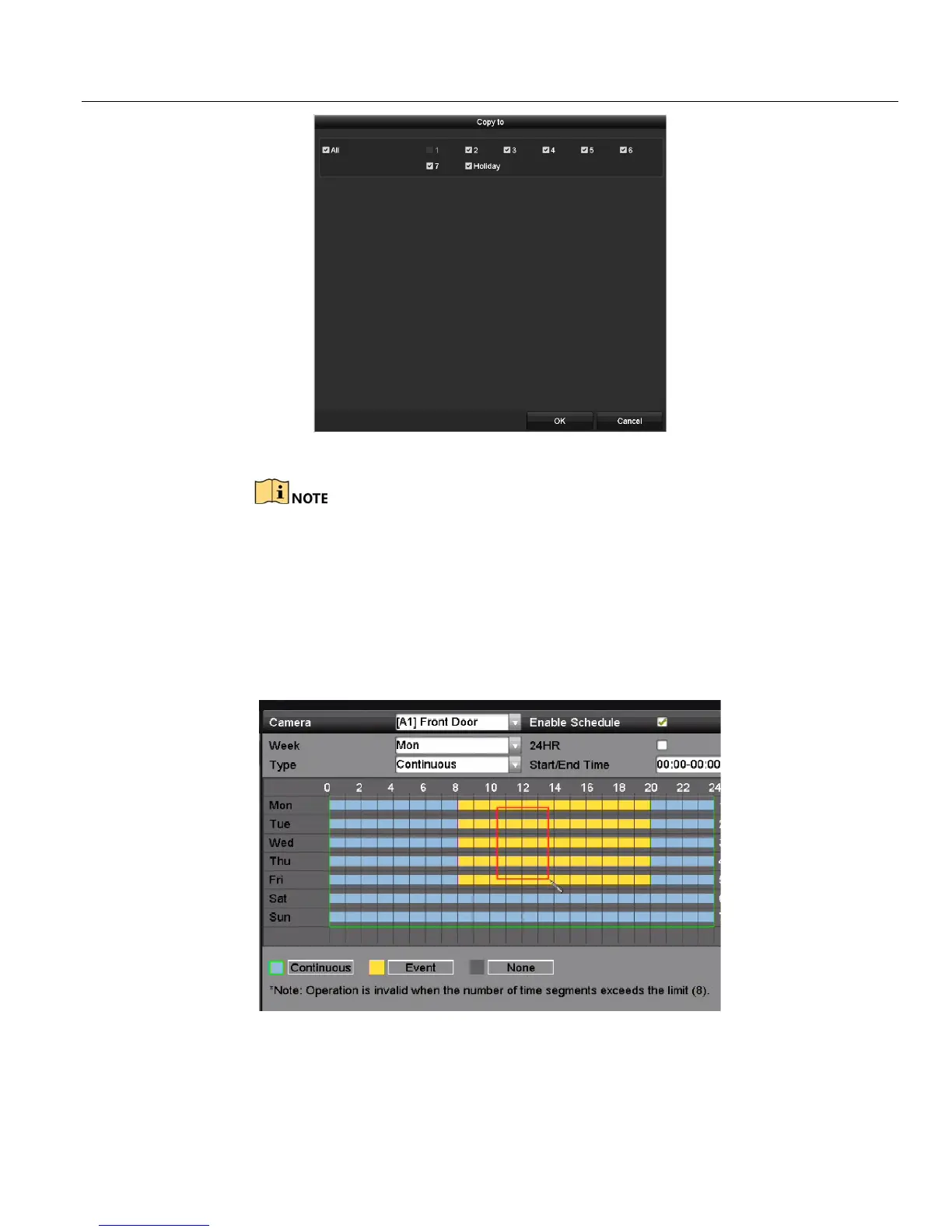

Figure 77, Copy Schedule to Other Days
The Holiday option is available when you enable holiday schedule in
Holiday settings.
6. Click OK to save setting and go back to upper level menu.
5.2.3 Draw the schedule
1. Click on the color icon to select a record type in t
he event list on the right-side of the interface.
Figure 78, Draw the Recording Schedule
2. Drag the mouse on the schedule.
3. Click on the other area except for the schedule table to finish and exit from the drawing.
