DS-7600 Series NVR User Manual
59
C H A P T E R 7
Backup
Backing up Video Clips
Video clips can be backed up to various devices such as USB flash drives, USB HDDs, or a DVD writer.
Selecting Video Clips
Video clips can be selected for backup in the Playback Interface using the controls found in the Mark Clip for Export panel, shown in
Figure 69, Mark Clip for Export Controls.

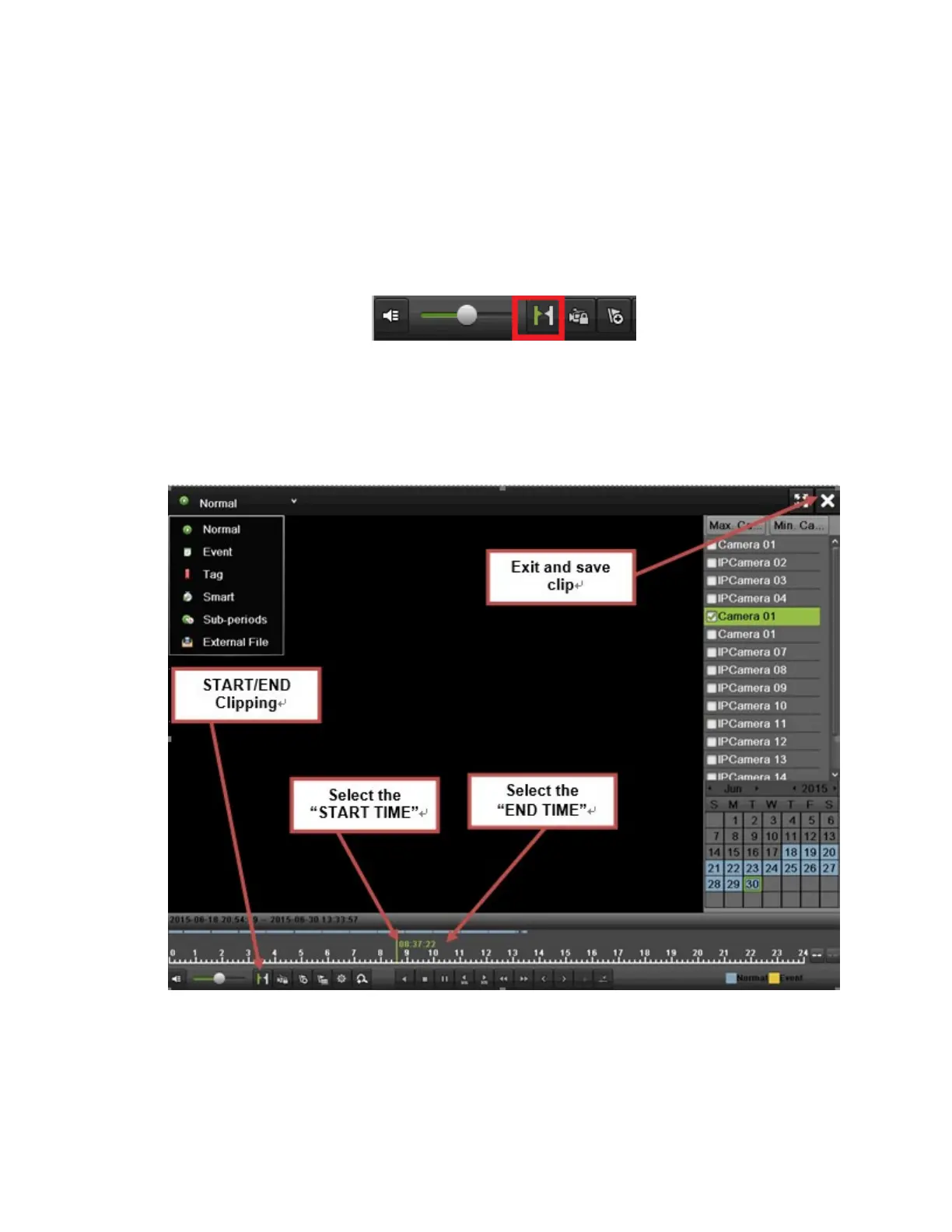

Figure 69, Mark Clip for Export Controls
The controls found in the Mark Clip for Export panel include:
• Start/Stop Button: Mark the video clip starting/ending point. When you click the Start button, it will change into the Stop button.
To select video clips in the Playback Interface:
Figure 70, Playback Menu
1. Enter the Playback Interface, shown in Figure 70, Playback Menu, by going to Menu > Playback > Record.
2. Insert a USB flash drive or a USB HDD into an available USB port.
3. Go to MENU > PLAYBACK.
4. Select the date and beginning time of the incident
To Next Page
