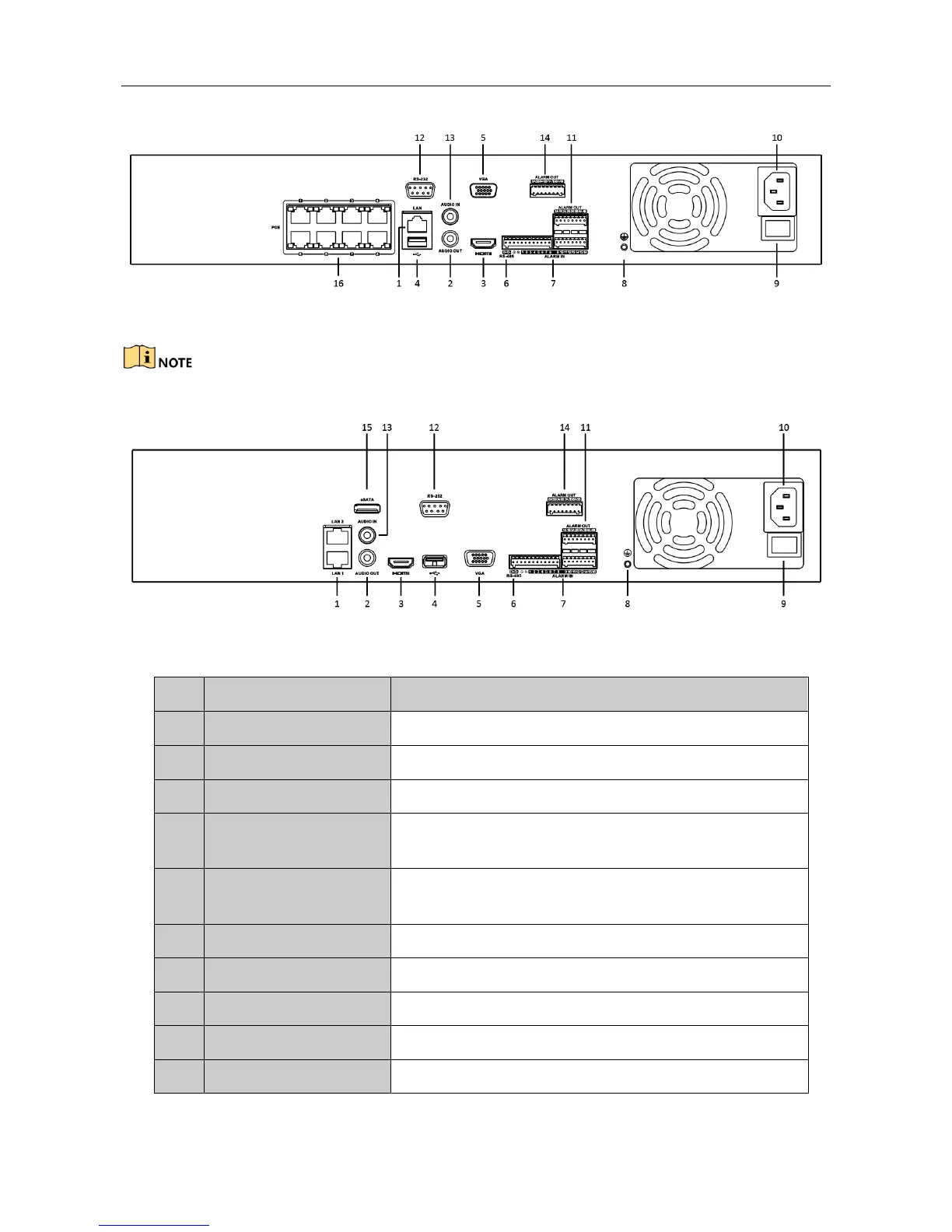

Figure 1-8 DS-7700NI-Q4/P Series
The DS-7716NI-Q4/16P and DS-7732NI-Q4/16P provides 16 network Interfaces with PoE function.
Figure 1-9 DS-8600NI-Q8 Series
Table 1-6 Panel Description
No.
Item
Description
1
LAN Network Interface
2, 10 /100 /1000 Mbps self-adaptive Ethernet interface
2
Audio Out
RCA connector for audio output.
3
HDMI Interface
HDMI video output connector.
4
USB Interface
Universal Serial Bus (USB) ports for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).
5
VGA Interface
DB9 connector for VGA output. Display local video
output and menu.
6
RS-485 Interface
Half-duplex connector for RS-485 devices.
7
ALARM IN
Connector for alarm input.
8
Ground
Ground (needs to be connected when NVR starts up).
9
Power Switch
Switch for turning on/off the device.
10
Power Supply
100~240 VAC power supply.

HIKVISION DS-7604NI-Q1 Specifications

General

Audio system	2-way
Input bandwidth	40 Mbit/s
Number of users	16 user(s)
Output bandwidth	80 Mbit/s
Maximum resolution	3840 x 2160 pixels
Video input channels	4 channels
Supported resolutions	3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.264+, H.265, H.265+
Wi-Fi	No
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	8 TB
Number of HDDs installed	0
Number of HDDs supported	1
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Power over Ethernet (PoE)	Yes
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Power over Ethernet (PoE) ports quantity	4
Power consumption (typical)	10 W
Total Power over Ethernet (PoE) budget	50 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	Part 15 Subpart B, ANSI C63.4-2014

Weight and Dimensions

Depth	240 mm
Width	320 mm
Height	48 mm
Weight	1000 g
