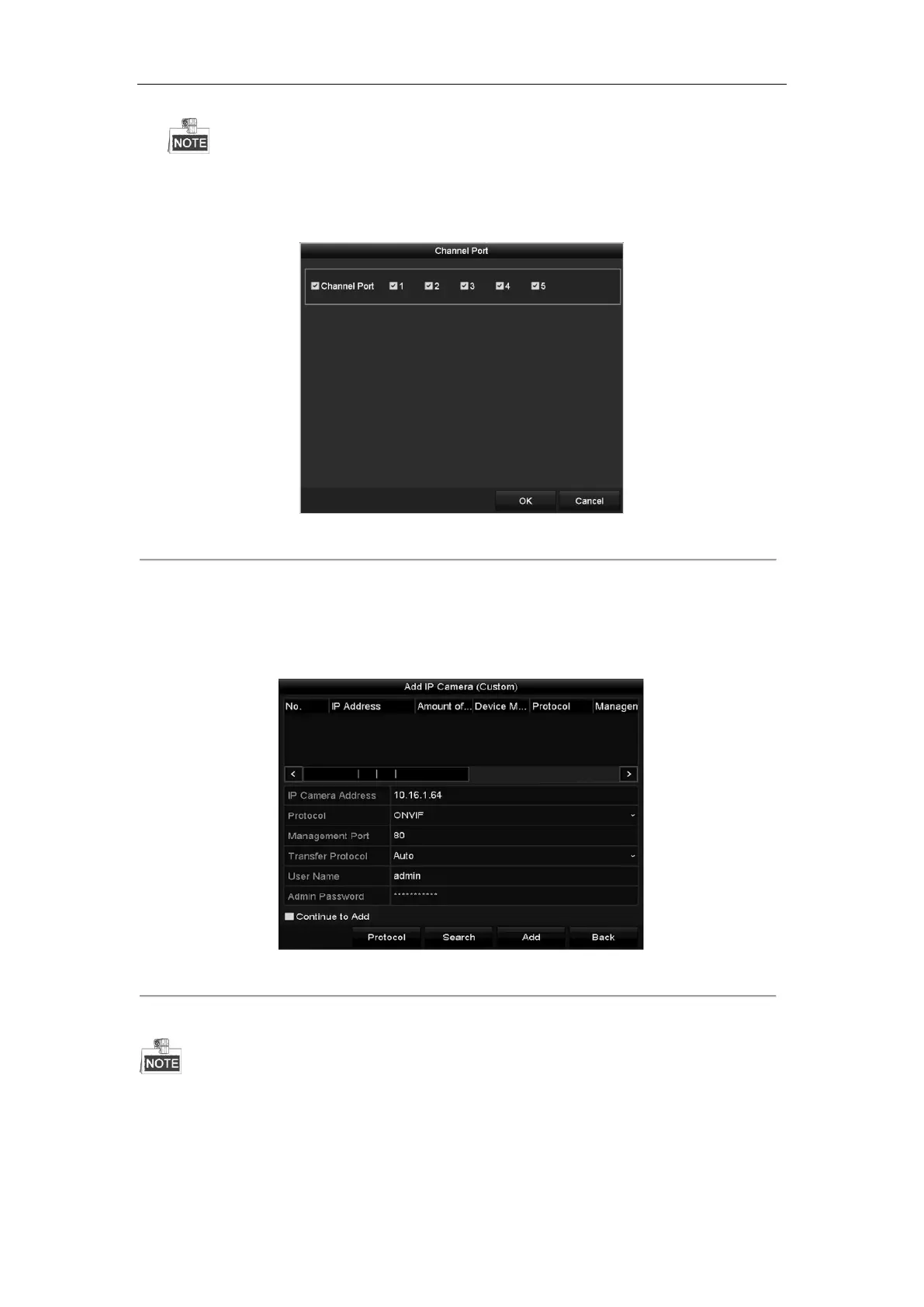

Network Video Recorder User Manual
44
Make sure the camera to add has already been activated.
4. (For the encoders with multiple channels only) check the Channel Port checkbox in the pop-up window, as
shown in the following figure, and click OK to add multiple channels.
Figure 2. 28 Selecting Multiple Channels
OPTION 3:
Steps:
1. On the IP Camera Management interface, click the Custom Adding button to pop up the Add IP Camera
(Custom) interface.
Figure 2. 29 Custom Adding IP Camera Interface
2. You can edit the IP address, protocol, management port, and other information of the IP camera to be added.
If the IP camera to add has not been actiavated, you can activate it from the IP camera list on the camera
management interface.
3. (Optional) Check the checkbox of Continue to Add to add other IP cameras.
4. Click Add to add the camera. The successfully added cameras are listed in the interface.

Table of Contents

Other manuals for HIKVISION DS-7608NI-E2/8P

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7608NI-E2/8P and is the answer not in the manual?

HIKVISION DS-7608NI-E2/8P Specifications

General IconGeneral
Display modesLive view
Maximum frame rate60 fps
Maximum resolution1920 x 1080 pixels
Alarm input channels4
Video input channels8 channels
Alarm output channels1
Resolution at capture speed1920x1080@60fps
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
AC input voltage100 - 240 V
Power consumption (typical)10 W
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports9
HDD interfaceSerial ATA
Maximum storage capacity12 TB
Number of HDDs supported2
Total installed storage capacity0 GB
Weight and Dimensions IconWeight and Dimensions
Depth290 mm
Width445 mm
Height45 mm
Weight1000 g
