HIKVISION DS-7608NI-E2/8P User Manual

Network Video Recorder User Manual
90

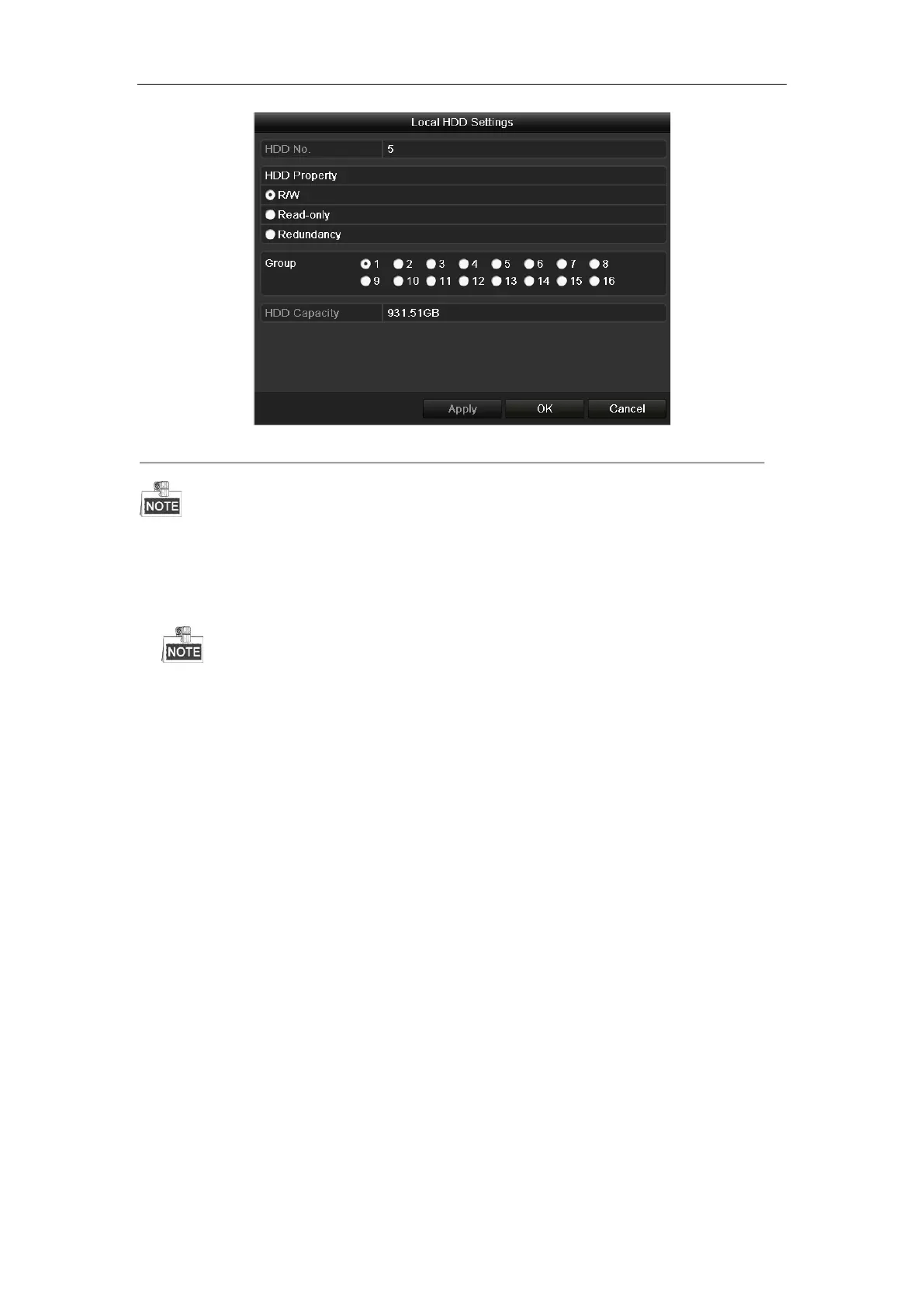

Figure 5. 33 HDD General- Editing
To edit HDD property, you need to set the storage mode of the HDD to Group. See Chapter 12.3 Managing HDD
Group.
3. Set the HDD property to Read-only.
4. Click OK to save settings and back to the upper level menu.
 You cannot save any files in a Read-only HDD. If you want to save files in the HDD, change the
property to R/W.
 If there is only one HDD and is set to Read-only, the NVR can’t record any files. Only live view mode is
available.
 If you set the HDD to Read-only when the NVR is saving files in it, then the file will be saved in next
R/W HDD. If there is only one HDD, the recording will be stopped.

HIKVISION DS-7608NI-E2/8P Specifications

General

Display modes	Live view
Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	4
Video input channels	8 channels
Alarm output channels	1
Resolution at capture speed	1920x1080@60fps
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
Power consumption (typical)	10 W
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	9
HDD interface	Serial ATA
Maximum storage capacity	12 TB
Number of HDDs supported	2
Total installed storage capacity	0 GB

Weight and Dimensions

Depth	290 mm
Width	445 mm
Height	45 mm
Weight	1000 g
