Quick Operation Guide of DS-9600/8600/7600NI-ST Series NVR
5

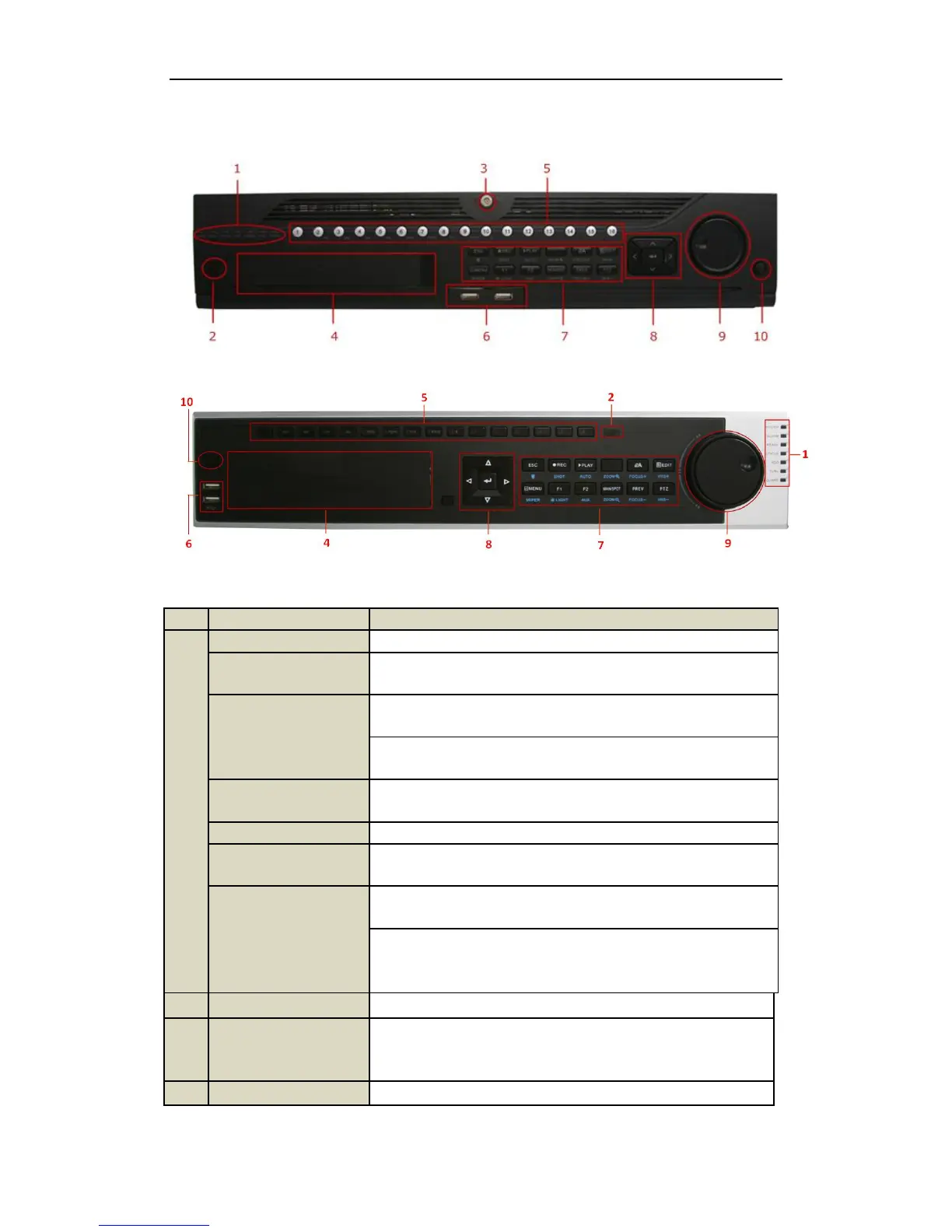

Front Panel
DS-9600NI-ST
DS-8600NI-ST
No.
Name
Function Description
1
ALARM
Alarm indicator turns red when a sensor alarm is detected.
READY
Ready indicator is normally blue, indicating that the device is functioning
properly.
STATUS
Status indicator turns blue when device is controlled by an IR remote.
Indicator turns red when controlled by a keyboard and purple when IR
remote and keyboard is used at the same time.
HDD
HDD indicator blinks red when data is being read from or written to
HDD.
MODEM
Reserved for future usage.
TX/RX
TX/RX indictor blinks blue when network connection is functioning
properly.
GUARD
Guard indicator turns blue when the device is in armed status; at this time,
an alarm is enabled when an event is detected.
The indicator turns off when the device is unarmed. The arm/disarm
status can be changed by pressing and holding on the ESC button for
more than 3 seconds in live view mode.
2
IR Receiver
Receiver for IR remote
3
Front Panel Lock
(for DS-9600NI-ST
series)
You can lock or unlock the panel by the key.
4
DVD-ROM
Slot for DVD-ROM. (Optional)
