HIKVISION DS-7616NI-M2 User Manual

Network Video Recorder User Manual
136

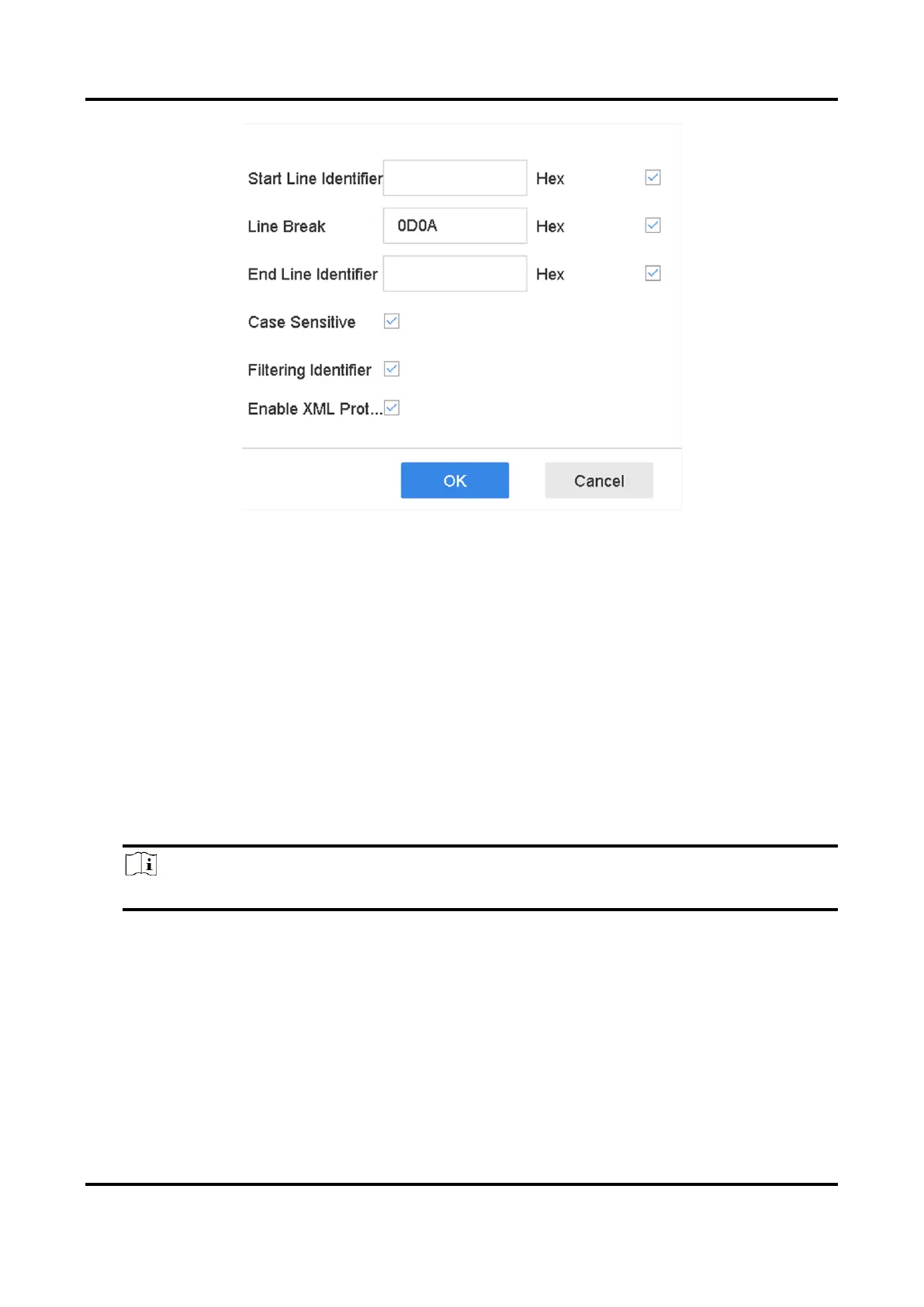

Figure 14-2 Universal Protocol Settings
EPSON
The fixed start and end line tag are used for EPSON protocol.
AVE
The fixed start and end line tag are used for AVE protocol. Serial port and virtual serial port
connection types are supported.
Click Custom to configure the AVE settings. Select Rule as VSI-ADD or VNET . Set the address
bit of the POS message to send. Click OK to save the settings.
NUCLEUS
Click the Custom to configure the NUCLEUS settings.
Enter the employee No., shift No., and the terminal No. in the field. The matching message
sent from the POS device will be used as the valid POS data.
Note
The NUCLEUS protocol must be used in the RS-232 connection communication.
6. Select Connection Mode and click Parameters to configure the parameters for each
connection mode.
TCP Connection
When using TCP connection, the port must be set from 1 to 65535, and the port for each POS
machine must be unique.
Set the Allowed Remote IP Address of the device sending the POS message.
UDP Connection
When using UDP connection, the port must be set from 1 to 65535, and the port for each POS

HIKVISION DS-7616NI-M2 Specifications

General

Model	DS-7616NI-M2
Category	Network Video Recorder
Video Input	16-ch
Decoding Format	H.265+/H.265/H.264+/H.264
Two-Way Audio	Yes
SATA	2 SATA Interfaces
HDD Bays	2
Max HDD Capacity	10TB per HDD
USB Interface	2 × USB 2.0
Power Consumption (without HDD)	≤ 15W
Working Humidity	10% to 90%
Operating Humidity	10% to 90%
Video Output	HDMI, VGA
Recording Resolution	12 MP
Audio Output	1 Channel
Capacity	Up to 10 TB capacity for each HDD
Network Interface	1 × 10/100/1000 Mbps
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	≤ 20W
Working Temperature	-10 °C to +55°C (14°F to 131°F)
Operating Temperature	-10 °C to +55°C (14°F to 131°F)
