Network Video Recorder User Manual
159

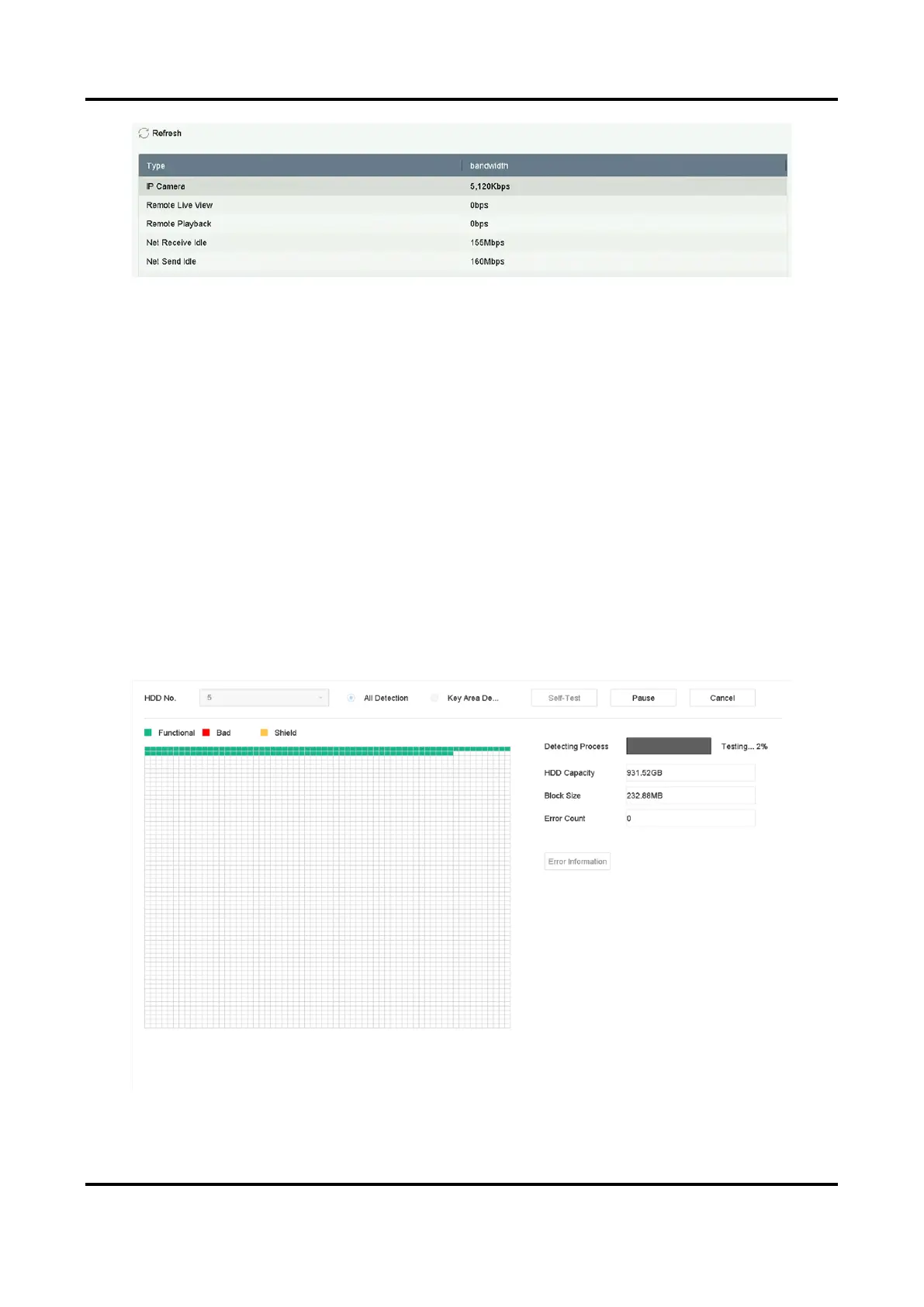

Figure 16-5 Network Resource Statistics
2. View the bandwidth statistics, including IP Camera, Remote Live View, Remote Play, Net Total
Idle, etc.
3. Optional: Click Refresh to obtain the latest data.
16.6 Storage Device Maintenance
16.6.1 Bad Sector Detection
Steps
1. Go to Maintenance HDD Operation Bad Sector Detection.
2. Select the HDD No. you want to configure in the dropdown list.
3. Select All Detection or Key Area Detection as the detection type.
4. Click Self-Test to start the detection.
Figure 16-6 Bad Sector Detection

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7616NI-M2 and is the answer not in the manual?

HIKVISION DS-7616NI-M2 Specifications

General IconGeneral
ModelDS-7616NI-M2
CategoryNetwork Video Recorder
Video Input16-ch
Decoding FormatH.265+/H.265/H.264+/H.264
Two-Way AudioYes
SATA2 SATA Interfaces
HDD Bays2
Max HDD Capacity10TB per HDD
USB Interface2 × USB 2.0
Power Consumption (without HDD)≤ 15W
Working Humidity10% to 90%
Operating Humidity10% to 90%
Video OutputHDMI, VGA
Recording Resolution12 MP
Audio Output1 Channel
CapacityUp to 10 TB capacity for each HDD
Network Interface1 × 10/100/1000 Mbps
Power SupplyAC 100-240V, 50/60Hz
Power Consumption≤ 20W
Working Temperature-10 °C to +55°C (14°F to 131°F)
Operating Temperature-10 °C to +55°C (14°F to 131°F)
