Digital Video Recorder User Manual
47
No.
Item Description
12 VIDEO OUT BNC connector for video output.
13 Alarm In/Out Connector for alarm input and output.

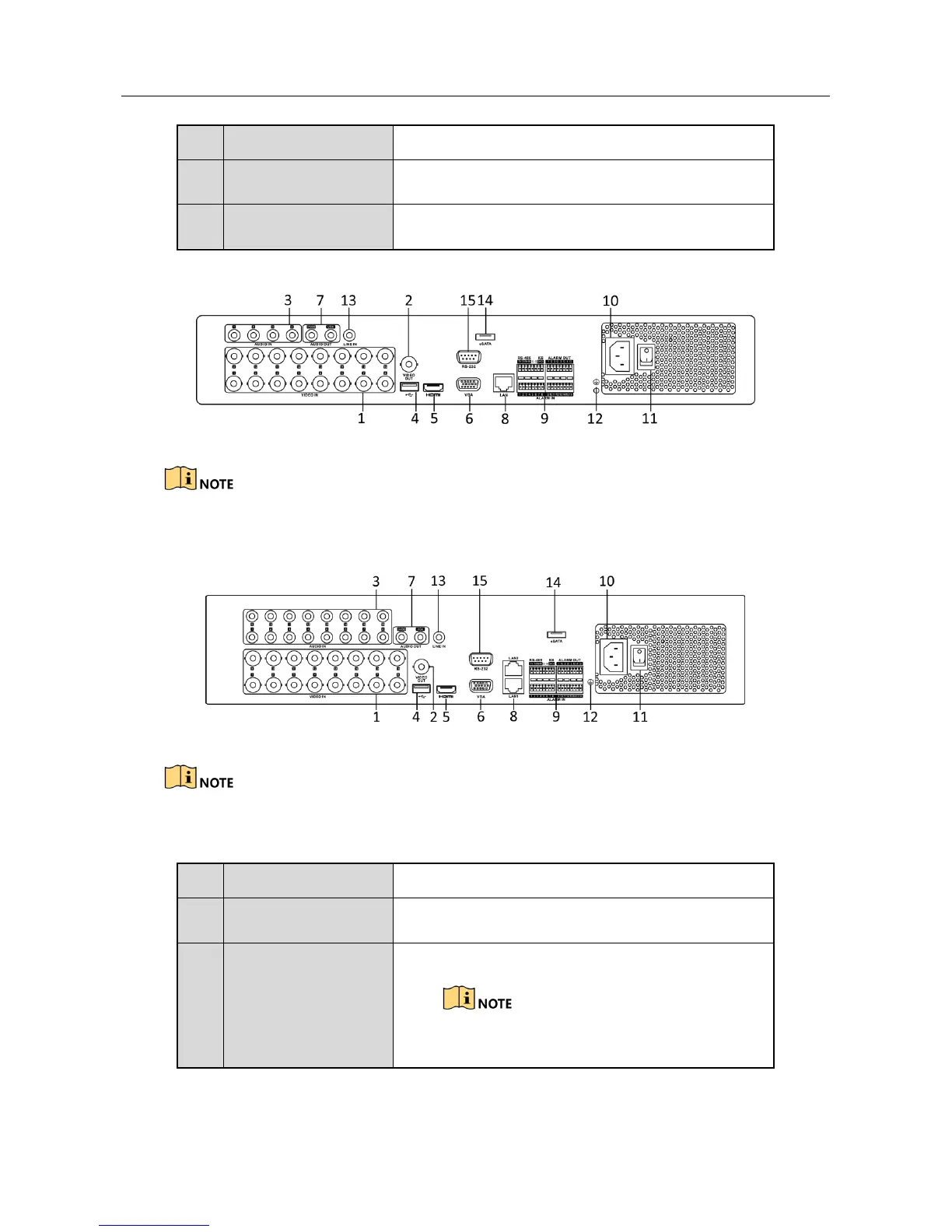

Rear Panel 7:
Figure 1-17 Rear Panel of DS-7300HQHI-F4/N
The rear panel of DS-7304HQHI-F4/N and DS-7308HQHI-F4/N provide 4 and 8 video input
interfaces respectively.
Rear Panel 8:
Figure 1-18 Rear Panel of DS-8100HQHI-F8/N
The rear panel of DS-8104HQHI-F8/N and DS-8108HQHI-F8/N provide 4 and 8 video input
interfaces respectively.
Table 1-14 Description of Rear Panel
No.
Item Description
1 VIDEO IN BNC interface for Turbo HD and analog video input.
2
VIDEO OUT BNC connector for video output.
CVBS output is not provided by DS-7100/7200HGHI-E1,
DS-7200HGHI-E2, DS-7100/7200HGHI-F1,
