Chapter1 Panels Description
1.1 Front Panel
1.1.1 DS-9600NI Series

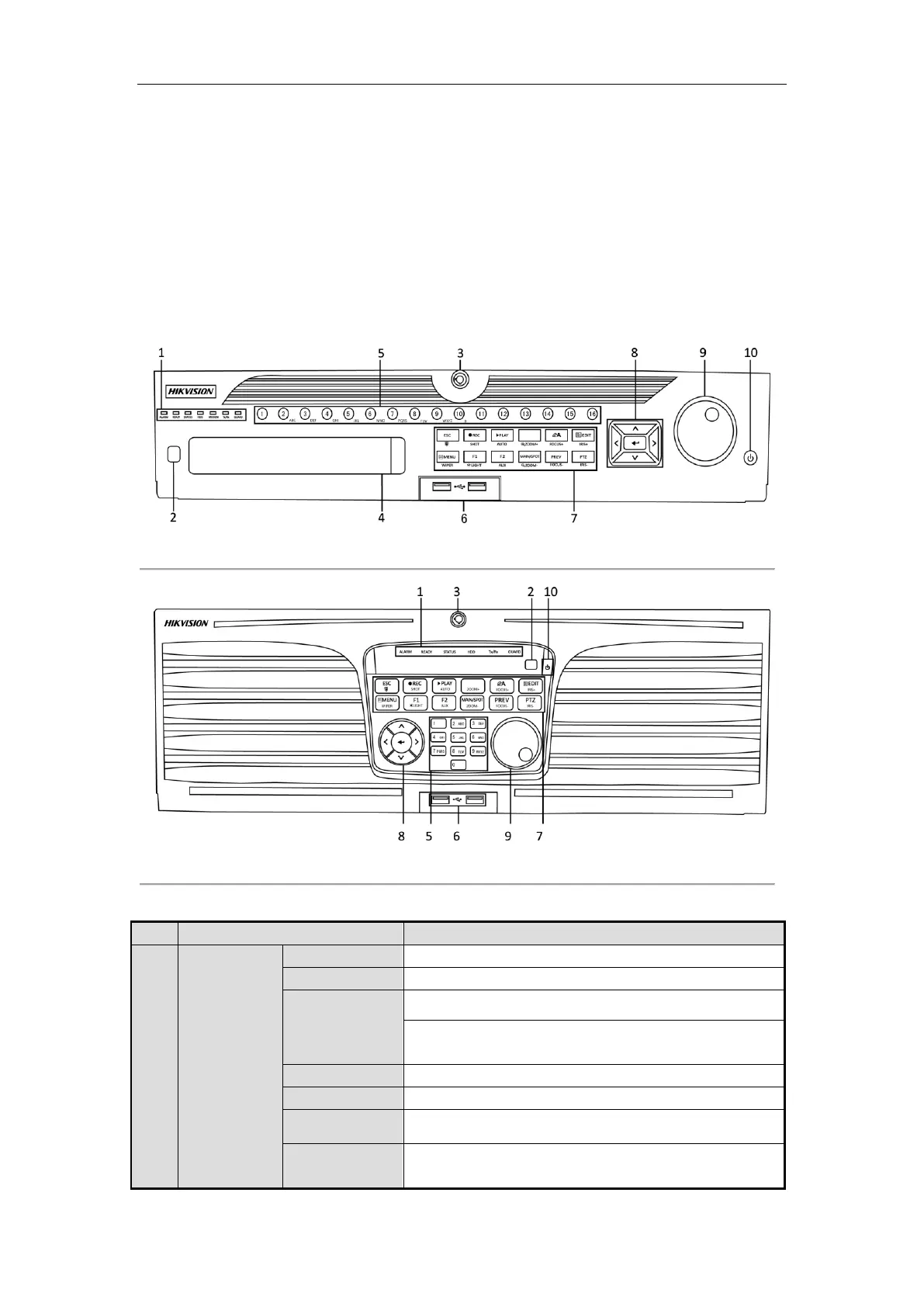

Figure 1. 1 DS-9600NI-I8 Series
Figure 1. 2 DS-9600NI-I16 Series
Table 1. 1 Panel Description
No.
Name
Function Description
1
Status
Indicators
ALARM
Turns red when a sensor alarm is detected.
READY
Turns blue when the device is functioning properly.
STATUS
Turns blue when device is controlled by an IR remote.
Turns red when controlled by a keyboard and purple when IR
remote and keyboard is used at the same time.
HDD
Flickers red when data is being read from or written to HDD.
MODEM
Reserved for future usage.
Tx/Rx
Flickers blue when network connection is functioning properly.
GUARD
Turns blue when the device is in armed status; at this time, an
alarm is enabled when an event is detected.
