HIKVISION DS-9608NI-ST

Quick Operation Guide of Network Video Recorder
16

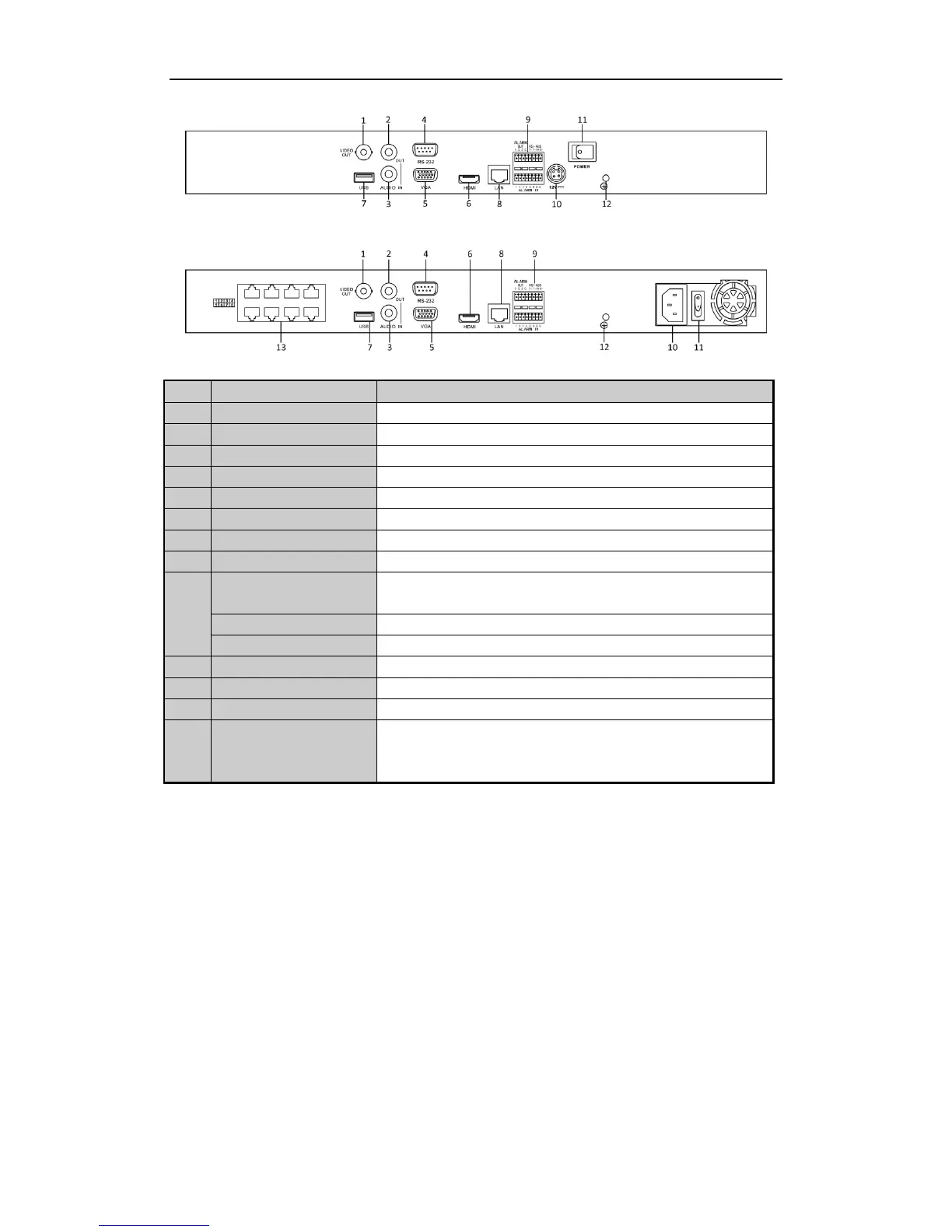

DS-7600NI-ST
DS-7600NI-SP
No.
Item
Description
1
VIDEO OUT
BNC connector for video output.
2
AUDIO OUT
BNC connector for audio output.
3
AUDIO IN
BNC connector for audio input. (Also for two-way audio)
4
RS-232 Interface
Connector for RS-232 devices.
5
VGA
DB9 connector for VGA output. Display local video output and menu.
6
HDMI
HDMI video output connector.
7
USB
Connects USB disks and devices.
8
LAN Interface
1 network interface.
9
RS-485 Interface
Connector for RS-485 devices. T+ and T- pins connect to R+ and R-
pins of PTZ receiver respectively.
ALARM IN
Connector for alarm input.
ALARM OUT
Connector for alarm output.
10
Power Supply
12VDC power supply.
11
Power Switch
Switch for turning on/off the device.
12
Ground
Ground (needs to be connected when NVR starts up).
13
Network Interfaces with
PoE function (supported
by DS-7600NI-SP)
Network interfaces for the cameras and to provide power over Ethernet.
