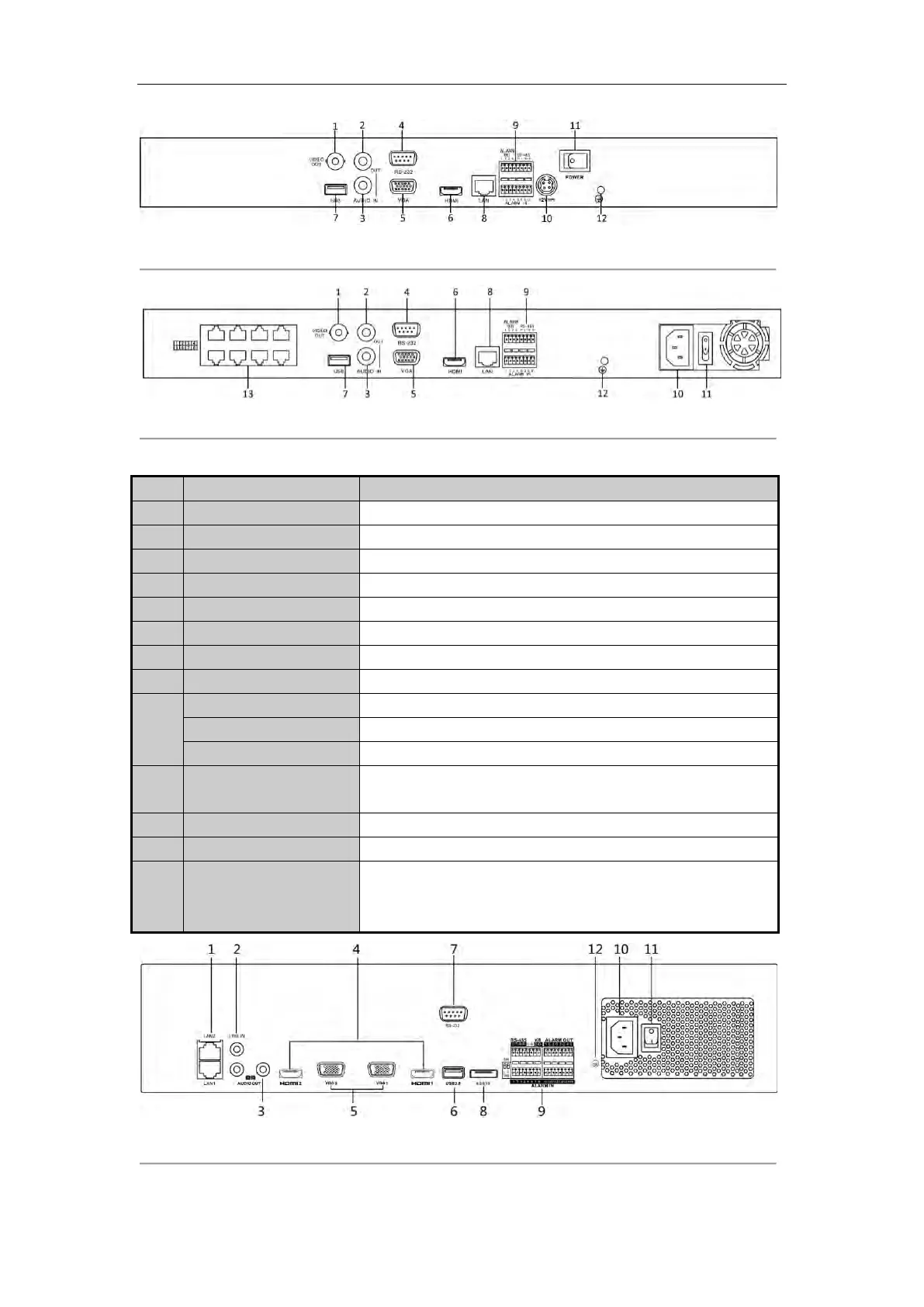

User Manual of Network Video Recorder
28
Figure 1. 14 DS-7600NI-ST
Figure 1. 15 DS-7600NI-SP
Table 1. 8 Description of Rear Panel Interfaces
No.
Item
Description
1
VIDEO OUT
BNC connector for video output.
2
AUDIO OUT
BNC connector for audio output.
3
AUDIO IN
BNC connector for audio input. (Also for voice talk)
4
RS-232 Interface
Connector for RS-232 devices.
5
VGA
DB9 connector for VGA output. Display local video output and menu.
6
HDMI
HDMI video output connector.
7
USB
Connects USB disks and devices.
8
Network Interface
Connector for LAN (Local Area Network).
9
RS-485 Interface
Connector for RS-485 devices.
ALARM IN
Connector for alarm input.
ALARM OUT
Connector for alarm output.
10
Power Supply
12VDC power supply for DS-7600NI-ST.
100~240VAC power supply for DS-7600NI-SP.
11
Power Switch
Switch for turning on/off the device.
12
Ground
Ground (needs to be connected when NVR starts up).
13
Network Interfaces with
PoE function (supported
by DS-7600NI-SP only)
Network interface for the cameras and to provide power over Ethernet.
Figure 1. 16 DS-8600/9600NI-F8
