HIKVISION DS-9632NI-I8 User Manual

Network Video Recorder User Manual
52

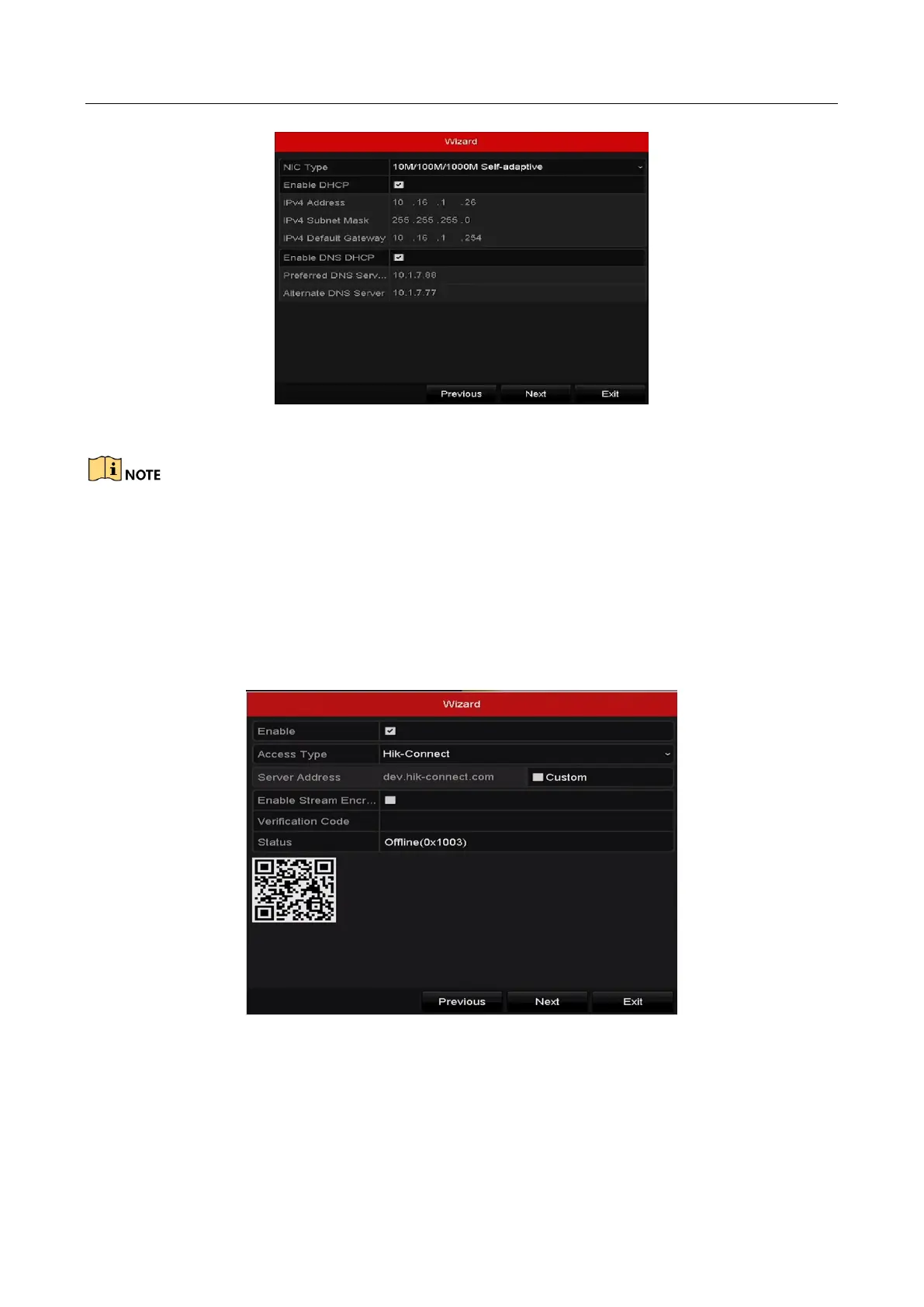

Figure 2-17 Network Settings
Two self-adaptive 10M/100M/1000M network interfaces provided for DS-9600NI, DS-8600NI,
DS-7700NI-I4 and DS-7700NI-K4, and two working modes are configurable: multi-address and
network fault tolerance. And one self-adaptive 10M/100M/1000M network interface for DS-7600NI,
DS-7700NI-I4/P and DS-7700NI-K4/P.
Step 4 Click Next button after you configured the basic network parameters. Enter the Hik-Connect
interface to configure the parameters. Please refer to Chapter 12.2.1 Configuring
Hik-Connect12.2.1 for detailed instructions.
Figure 2-18 Hik-Connect Settings
Step 5 Click Next button after you configured the basic network parameters. Then you will enter
the Advanced Network Parameter interface. You can enable UPnP, DDNS and set other
ports according to your need.

HIKVISION DS-9632NI-I8 Specifications

General

Product color	Black
Rack capacity	2U
Rack mounting	Yes
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	30 W
Display modes	Live view
Input bandwidth	320 Mbit/s
Output bandwidth	256 Mbit/s
Maximum frame rate	60 fps
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
Video formats supported	H.264, H.265, MPEG4
Still image resolution(s)	3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Resolution at capture speed	1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
RAID levels	0, 1, 5, 6, 10
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	48 TB
Number of HDDs installed	0
Number of HDDs supported	8
Wi-Fi	No

Weight and Dimensions

Depth	445 mm
Width	470 mm
Height	90 mm
Weight	10000 g
