HIKVISION DS-9632NI-I8 User Manual

Network Video Recorder User Manual
76

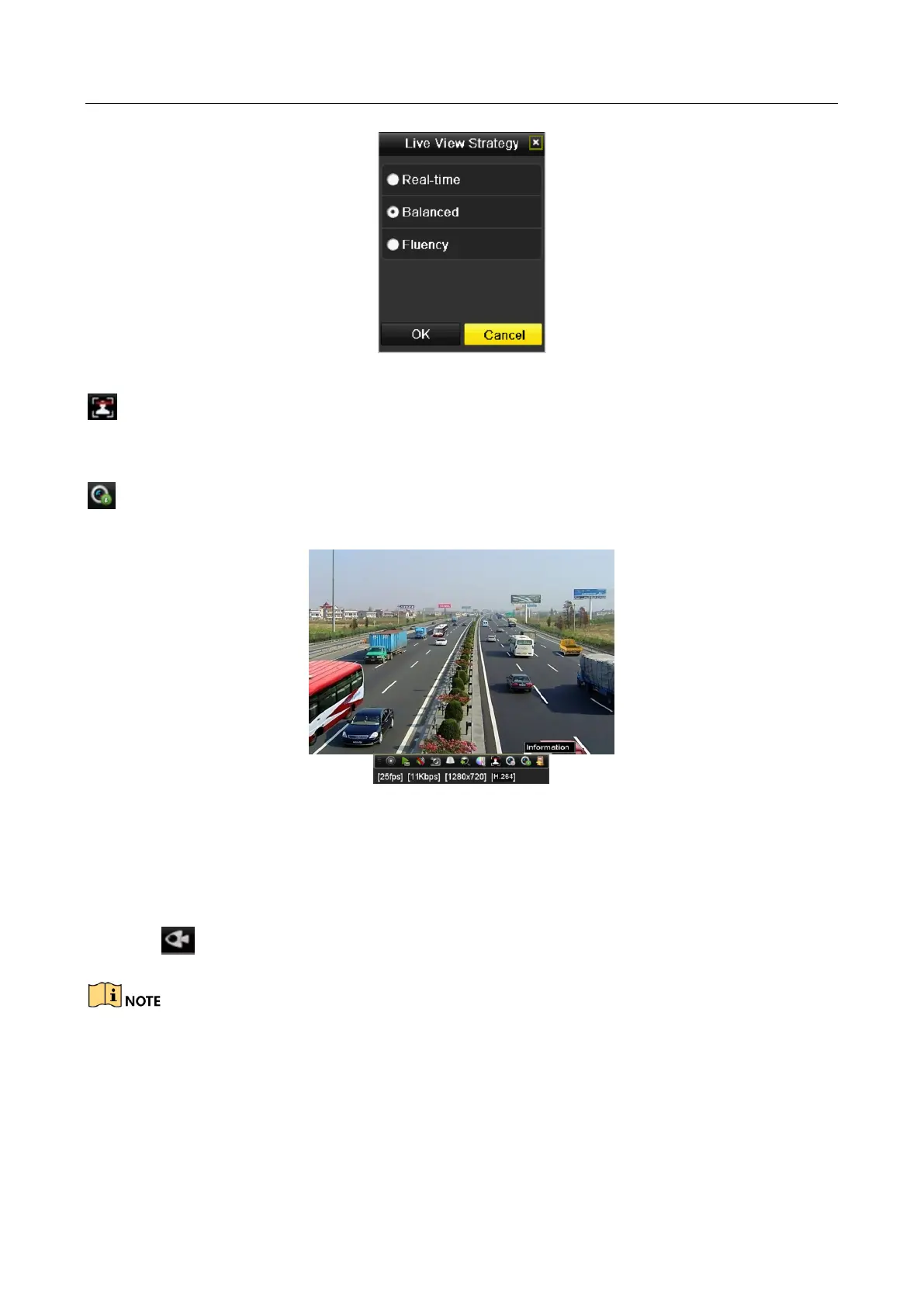

Figure 3-5 Live View Strategy
Face detection function can be used to detect the human faces in live view mode and save in
HDD. When there are human faces with the specified size detected in the front of the camera, the
device will capture the human face and save in HDD.
Move the mouse onto the icon to show the real-time stream information, including the frame
rate, bitrate, resolution and stream type.
Figure 3-6 Information
3.2.5 Fisheye Expansion View
The device supports the fisheye expansion for the connected fisheye camera in live view or
playback mode.
Click the to enter the fisheye expansion mode.
The fisheye expansion view feature is supported by the DS-7600/7700/8600/9600-I (/P) series NVR
only.

HIKVISION DS-9632NI-I8 Specifications

General

Product color	Black
Rack capacity	2U
Rack mounting	Yes
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	30 W
Display modes	Live view
Input bandwidth	320 Mbit/s
Output bandwidth	256 Mbit/s
Maximum frame rate	60 fps
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
Video formats supported	H.264, H.265, MPEG4
Still image resolution(s)	3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Resolution at capture speed	1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
RAID levels	0, 1, 5, 6, 10
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	48 TB
Number of HDDs installed	0
Number of HDDs supported	8
Wi-Fi	No

Weight and Dimensions

Depth	445 mm
Width	470 mm
Height	90 mm
Weight	10000 g
