HIKVISION DS-9664NI-M8 Quick Start Guide

Network Video Recorder Quick Start Guide
7
1.1.2 DS-9600NI-M8 Series

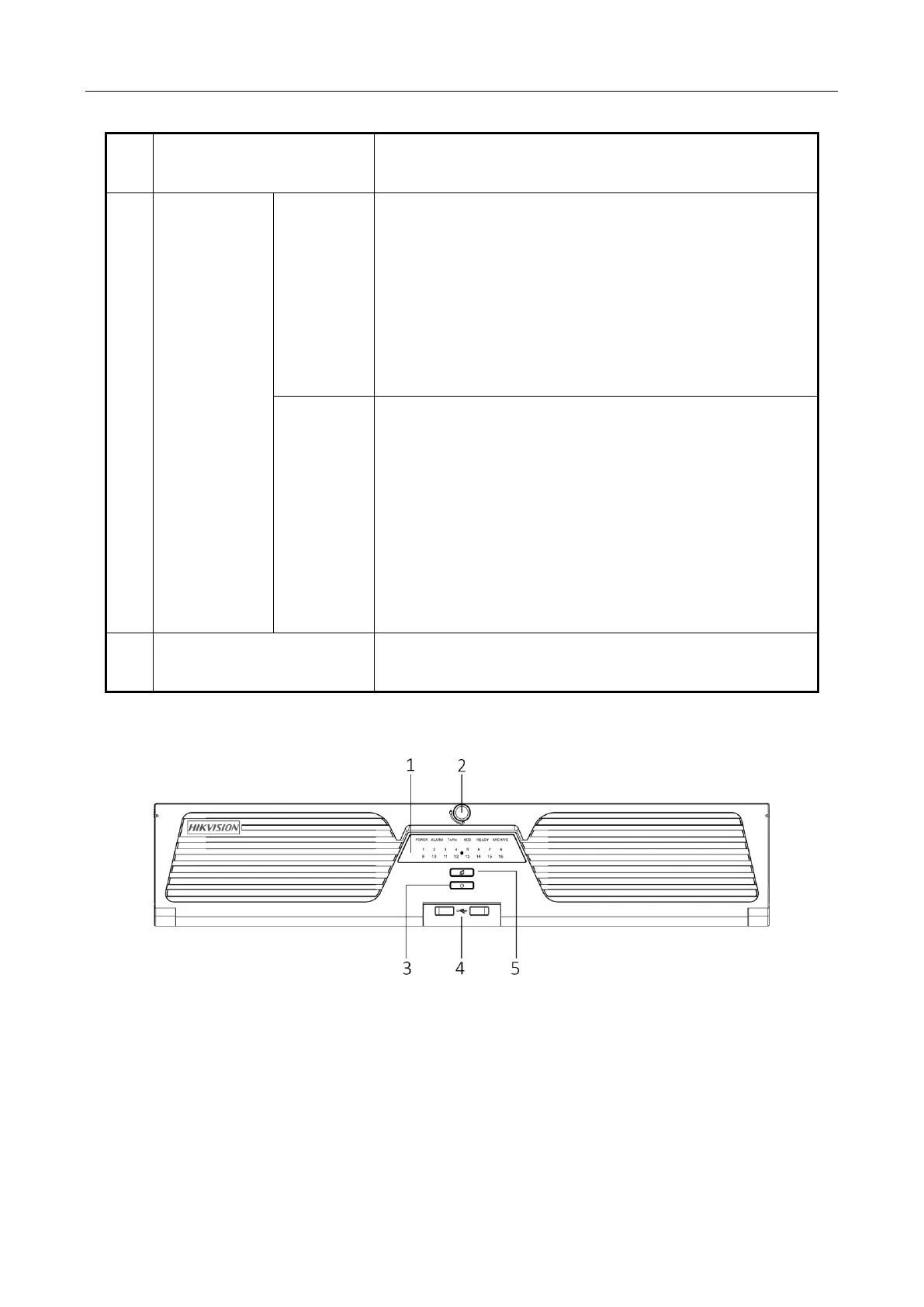

Figure 1-2 Front Panel
4
Power switch
Powers on/off device. Solid blue indicates device is
powered on. Solid red indicates device is shut down.
5
Control
buttons
ENTER

Confirms selection in any of the menu modes.

Checks the checkbox fields.

Switches on/off status.

Plays or pauses the video playing in playback mode.

Advances the video by a single frame in single-frame
playback mode.

Stops/starts auto switch in auto-switch mode.
DIRECTION

Navigates between different fields and items in
menus.

In the playback mode, use the Up and Down buttons
to speed up and slow down recorded video. Use the
Left and Right buttons to select the next and previous
video files.

Cycles through channels in live view mode.

Controls the movement of the PTZ camera in PTZ
control mode.
6
USB interfaces
Universal Serial Bus (USB) ports for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).

HIKVISION DS-9664NI-M8 Specifications

General

Video codecs	H.265+/H.265/H.264+/H.264
Input bandwidth	400 Mbit/s
Maximum resolution	7680 x 4320 pixels
Alarm input channels	16
Video input channels	64 channels
Alarm output channels	9
Supported resolutions	8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Number of simultaneously playbacked channels	16 channels
Certification	CE, FCC Part 15 Subpart B, ANSI C63.4-2014 EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
Product color	Black
Rack capacity	2U
Rack mounting	Yes
Brand compatibility	Hikvision Digital Technology
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	50 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Wi-Fi	-
RAID levels	0, 1, 5, 6, 10
HDD capacity	- GB
HDD interface	SATA, eSATA
Maximum storage capacity	14 TB
eSATA ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Internal SATA ports quantity	8

Weight and Dimensions

Depth	465 mm
Width	445 mm
Height	93 mm
Weight	10000 g
