HIKVISION DS-9664NI-M8 Quick Start Guide

Network Video Recorder Quick Start Guide
13

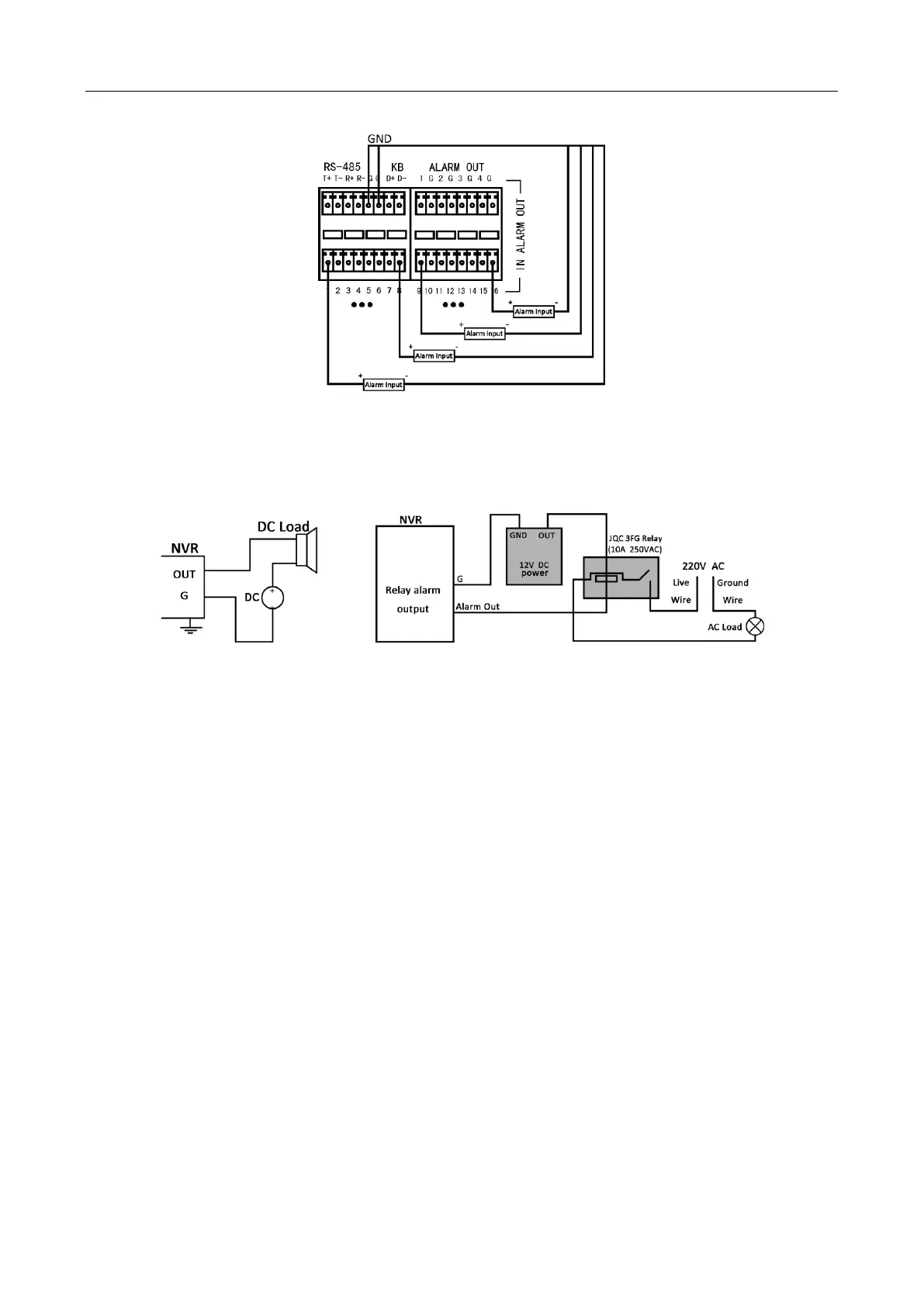

Figure 2-4 Alarm Input Wiring
2.3.2 Alarm Output Wiring
To connect to an alarm output (AC or DC load), use the following diagram:
Figure 2-5 Alarm Output Wiring
For DC load, the jumpers can be used within the limit of 12V/1A safely.
To connect an AC load, jumpers should be left open (you must remove the jumper on the
motherboard in the NVR). Use an external relay for safety (as shown in the figure above).
There are 4 jumpers (JP6, JP9, JP10, and JP11) on the motherboard, each corresponding with one
alarm output. By default, jumpers are connected. To connect an AC load, jumpers should be
removed.
Example:
If you connect an AC load to the alarm output 3 of the NVR, then you must remove the JP 3
jumper.
2.3.3 Use Alarm Connectors
To connect alarm devices to the NVR:
Step 1 Disconnect pluggable block from the ALARM IN /ALARM OUT terminal block.
Step 2 Unfasten stop screws from the pluggable block, insert signal cables into slots and fasten stop
screws. Ensure signal cables are tight.
Step 3 Connect pluggable block back into terminal block.

HIKVISION DS-9664NI-M8 Specifications

General

Video codecs	H.265+/H.265/H.264+/H.264
Input bandwidth	400 Mbit/s
Maximum resolution	7680 x 4320 pixels
Alarm input channels	16
Video input channels	64 channels
Alarm output channels	9
Supported resolutions	8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Number of simultaneously playbacked channels	16 channels
Certification	CE, FCC Part 15 Subpart B, ANSI C63.4-2014 EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
Product color	Black
Rack capacity	2U
Rack mounting	Yes
Brand compatibility	Hikvision Digital Technology
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	50 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Wi-Fi	-
RAID levels	0, 1, 5, 6, 10
HDD capacity	- GB
HDD interface	SATA, eSATA
Maximum storage capacity	14 TB
eSATA ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Internal SATA ports quantity	8

Weight and Dimensions

Depth	465 mm
Width	445 mm
Height	93 mm
Weight	10000 g
