HIKVISION DS-C30S-L104 Quick Start Guide

Video Wall Controller • Quick Start Guide
3
Main Control Board
1
2
4
3
5

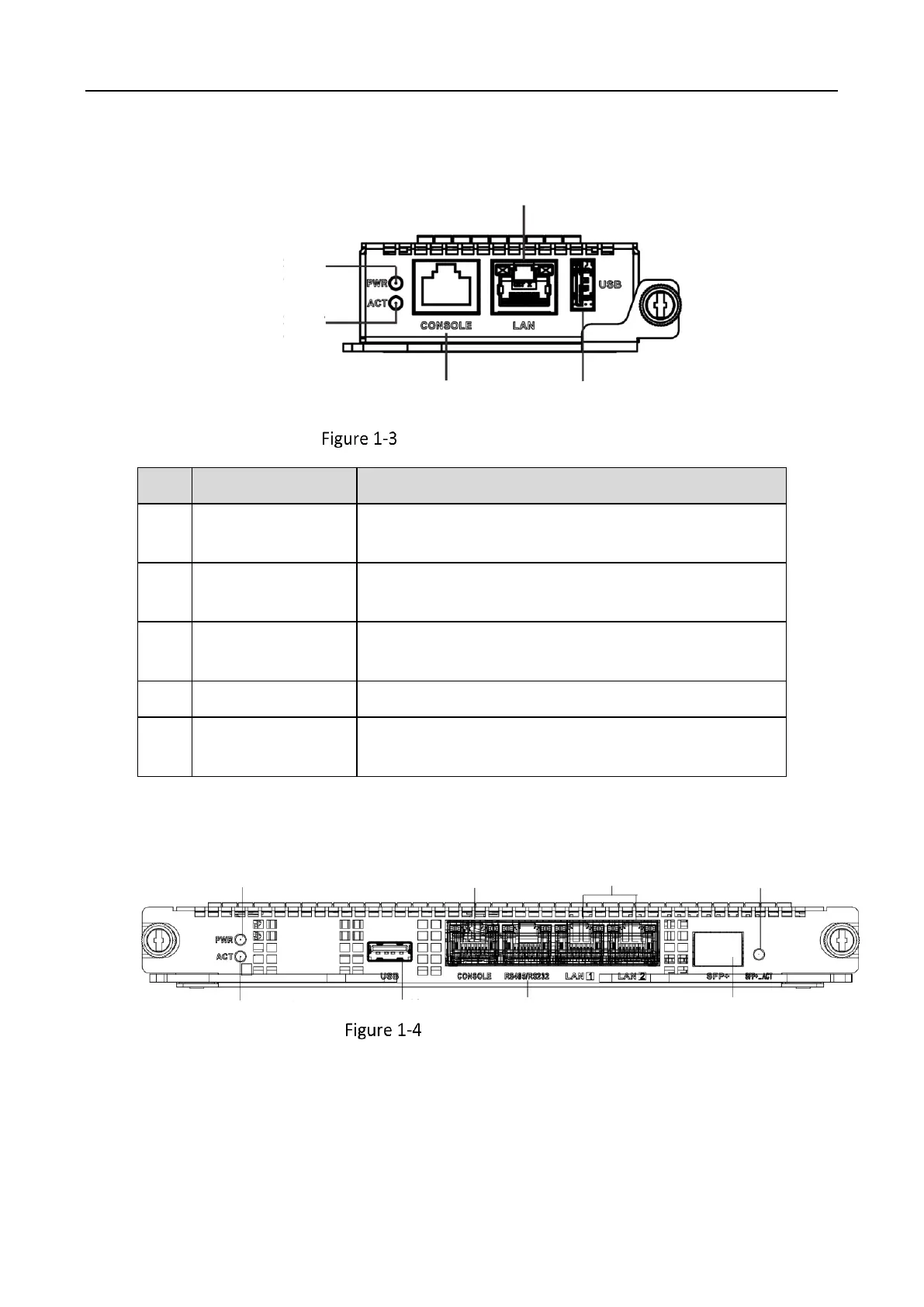

Front View of Main Control Board
No.
Name
Description
1
Power LED
When the board is powered on normally, the power
LED is steady green.
2
Active LED
When the board runs normally, the active LED is steady
green.
3
Console port
Used for device debugging, parameter configuration,
etc.
4
Network port
Reserved.
5
USB 2.0 port
Used to connect external devices such as mouse,
keyboard, USB flash drive, etc.
Switch Board
1
2
3
4
5
6
7
8
Front View of Switch Board
