HIKVISION DS-C30S-L104 Quick Start Guide

Video Wall Controller • Quick Start Guide
7
No.
Name
Description
1
Power LED
When the board is powered on normally, the
power LED is steady green.
2
Active LED
When the board runs normally, the active LED is
flashing green.
3
DVI video input port
Provide 4 ports for DVI video input.
4
Audio input port
Provide a mini-DP 4-in-1 line-in audio input port.
Use an external audio adapter cable to connect to
this port for audio input.

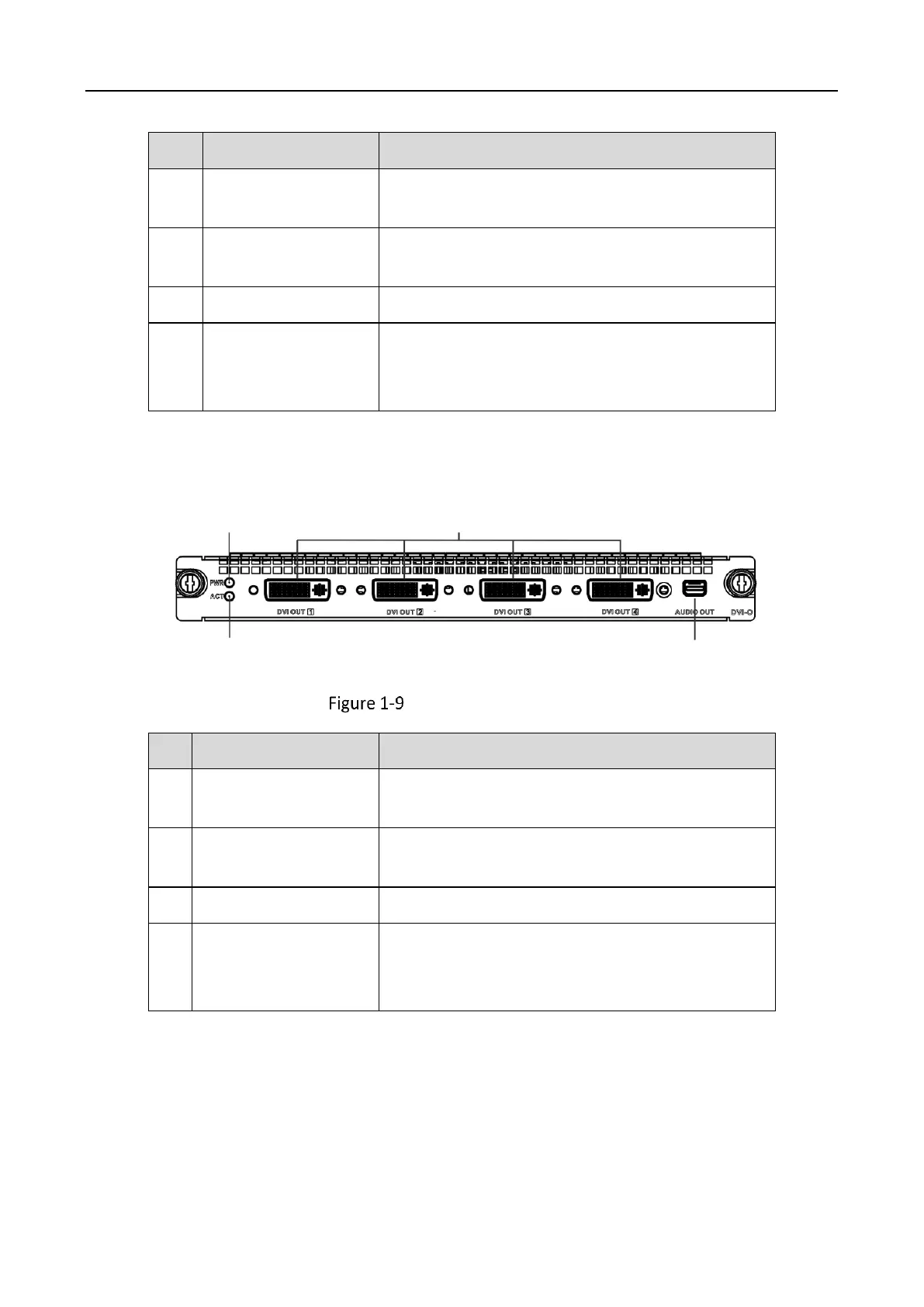

DVI Output Board
1
2
3
4
Front View of DVI Output Board
No.
Name
Description
1
Power LED
When the board is powered on normally, the
power LED is steady green.
2
Active LED
When the board runs normally, the active LED is
flashing green.
3
DVI video output port
Provide 4 ports for DVI video output.
4
Audio output port
Provide a mini-DP 4-in-1 line-in audio output port.
Use an external audio adapter cable to connect to
this port for audio output.
