HIKVISION DS-C30S-S11 - Page 18

Video Wall Controller • User Manual
12

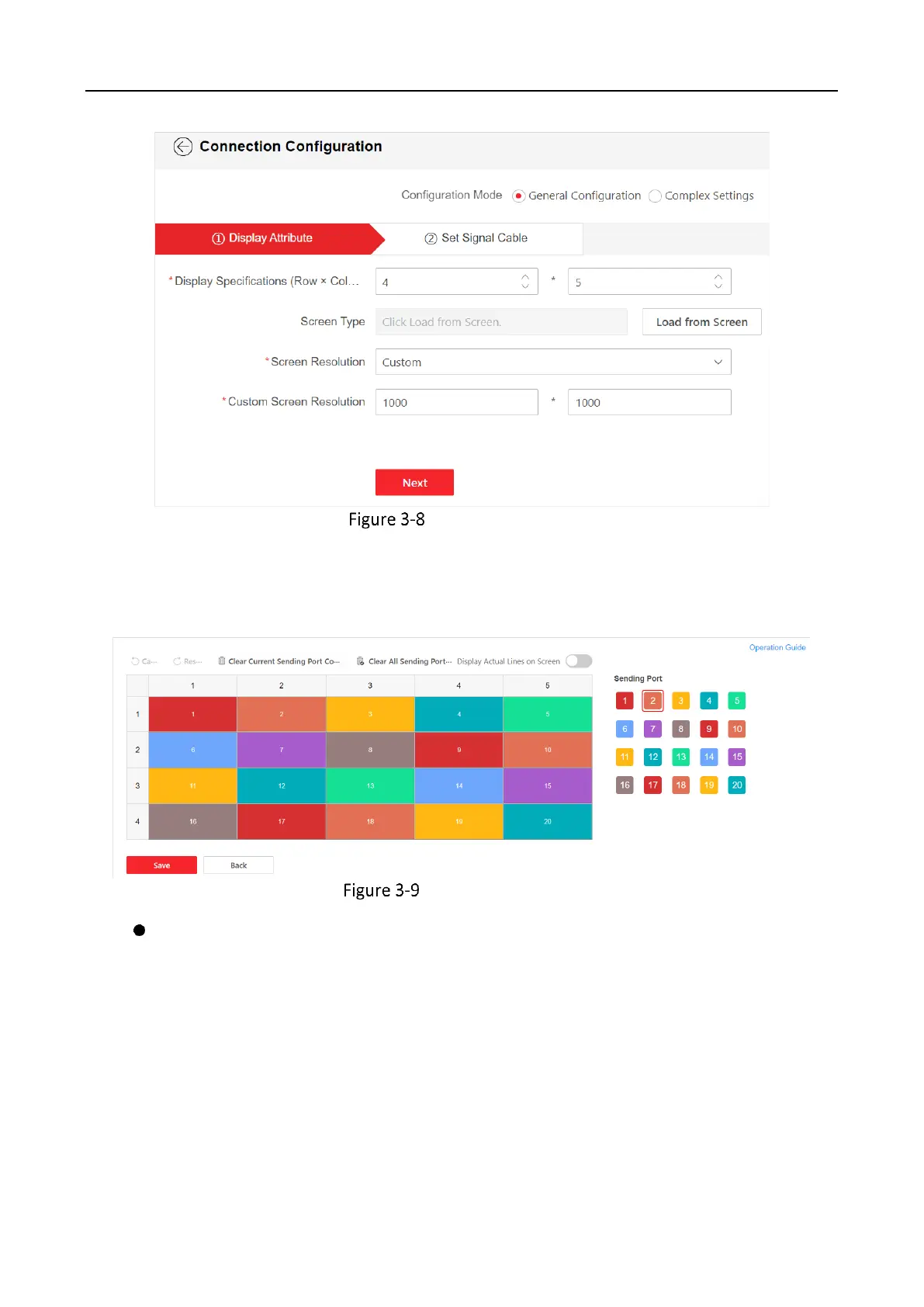

Set Screen Attribute
2) Select a sending port, and click the screen to finish the signal connection.
3) Select other sending ports to finish the signal connection.
4) Click Save.
Set Signal Connection
Click Complex Settings and complete the following parameters:
