HIKVISION DS-HD2 User Manual

5
5

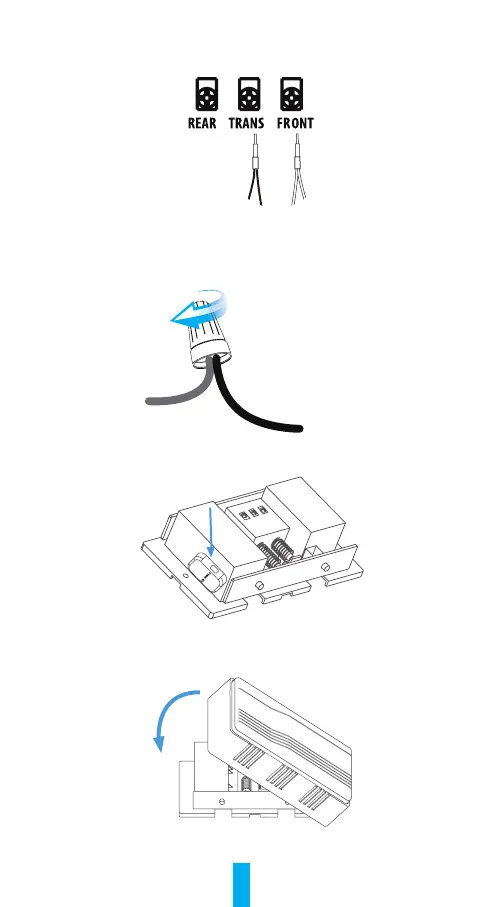

Connect the wire harness to the chimeConnect the wire harness to the chime’’s terminals named s terminals named
TRANS and FRONT.TRANS and FRONT.
6
Insert the existing chime wire and the other end of the wire Insert the existing chime wire and the other end of the wire
harness into the wire connector and twist it tightly. Repeat this harness into the wire connector and twist it tightly. Repeat this
step with the other chime wire.step with the other chime wire.
Wire Connector
Wire HarnessChime Wire
7
Mount the power kit to the side of the chime. Mount the power kit to the side of the chime.
8
Replace the chime cover.Replace the chime cover.
