HIKVISION DS-K1T342EWX User Manual

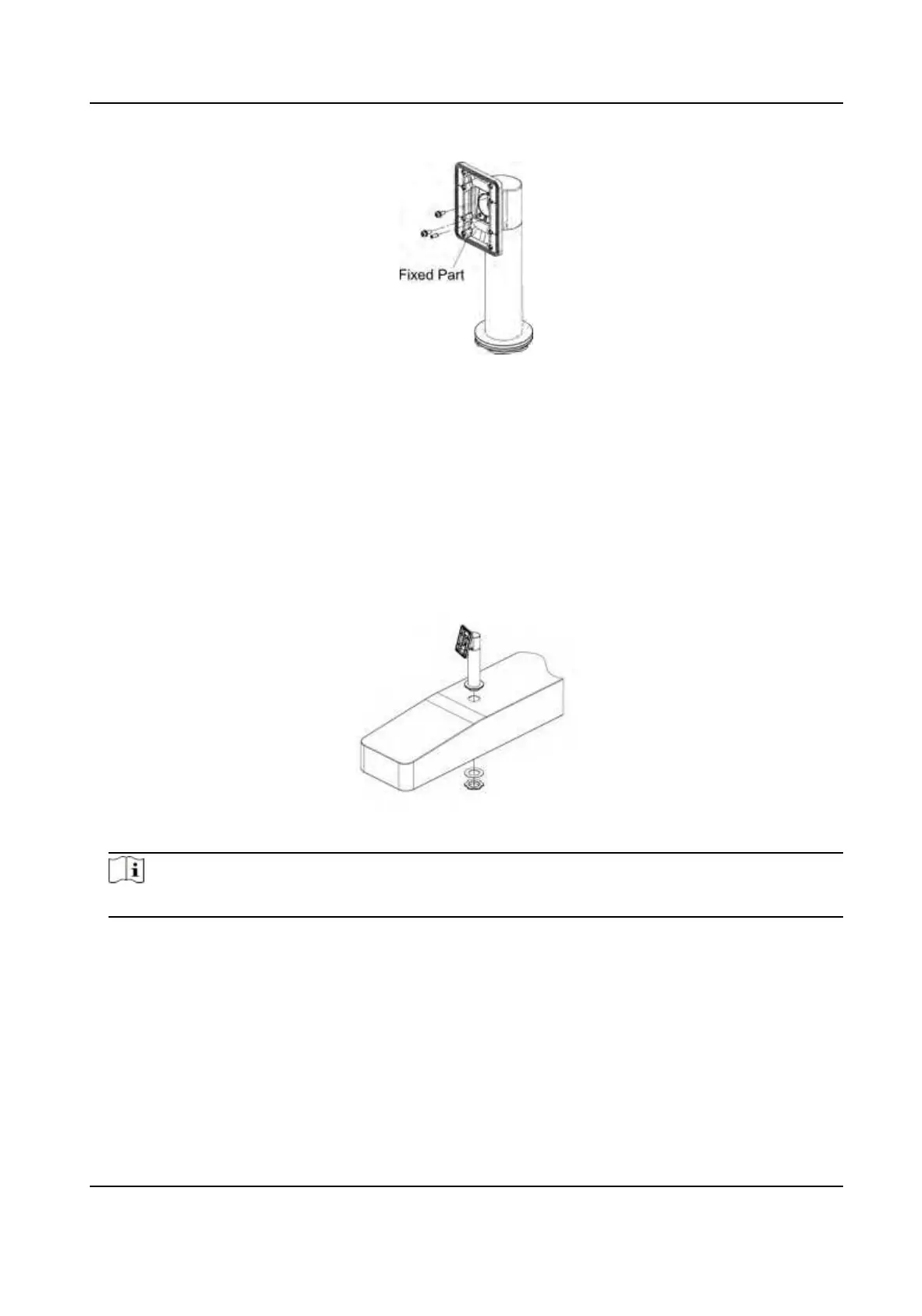

Figure 3-12 Rotate Fixed Part
3.4.2 Mount Bracket
Steps
1.
Install the base on the turnsle.
1) Align the hole on the turnsle and place the base on the turnsle.
2) Rotate the base to the acquired place and make sure the device will face a correct direcon.
3) Secure the base with wrench.
Figure 3-13 Install Base
Note
Install a piece of silicone pad on the front and back of the turnsle.
2.
Install the mounng template on the bracket with 4 supplied screw (SC-K1M4×6-SUS).
DS-K1T342 Series Face Recognion Terminal User Manual
15

HIKVISION DS-K1T342EWX Specifications

General

Resolution	1024 x 600
Operating System	Linux
RAM	1 GB
Storage	8 GB
Face Recognition Distance	0.3 m to 1.5 m
Face Recognition Duration	< 0.2 s
Event Capacity	100, 000
Audio	Built-in speaker and microphone
Working Humidity	10% to 90% (non-condensing)
Screen Resolution	1024 x 600
Camera	2 MP
Processor	Quad-core
Communication	TCP/IP
Power Supply	12V DC
Face Recognition Accuracy	99%
Card Capacity	3, 000
Wiegand	Wiegand output
Installation	Wall-mounted
Screen Size	7 inch
