The suggested external power supply for door lock is 12 V, 1 A.
●
The suggested external power supply for Wiegand card reader is 12 V, 1 A.
●
Do not wire the device to the electric supply directly.
4.2 Wire Secure Door Control Unit
You can connect the terminal with the secure door control unit.
The wiring diagram is as follows.

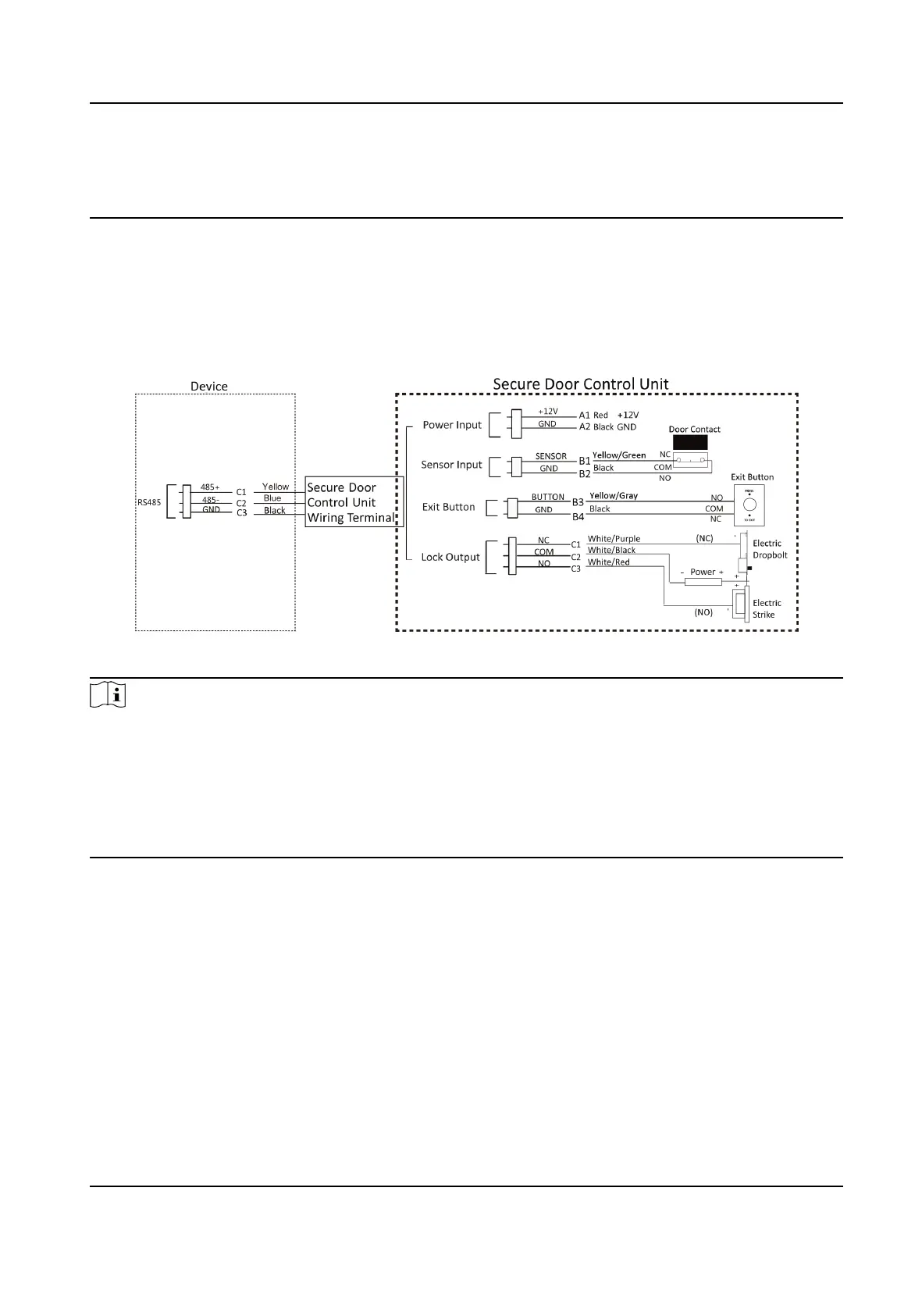

Figure 4-2 Secure Door Control Unit Wiring
Note
●
The secure door control unit should connect to an external power supply separately. The
suggested external power supply is 12V, 0.5A.
●
For scenarios with high safety requirement, use the secure door control unit wiring rst.
●
You can ask the technical support to purchase for the secure door control unit separately.
●
The picture here are parts of the wiring. For details, see the secure door control unit's user
manual.
Access Control Terminal User Manual
14
