Distributed Elevator Controller User Manual
6
Device Wiring Chapter 4

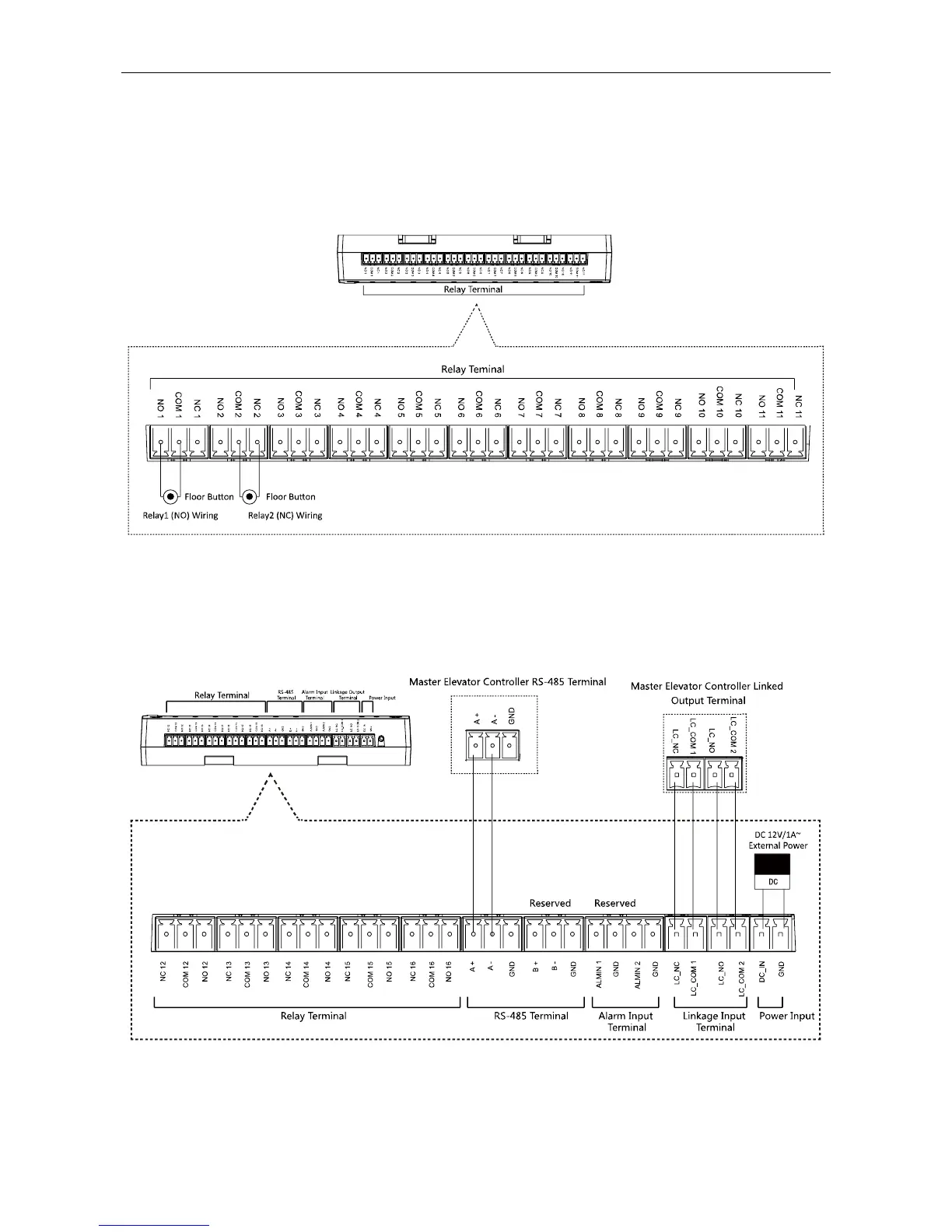

The wiring of the device upper side is as follows:
Notes:
 Relay NO Wiring: Wire the call elevator distributed controller and the call elevator relay, or wire the auto button
distributed controller and the auto button relay to make sure the call elevator control and the auto button
elevator control is invalid when powering off. The elevator will not stay between floors.
 Relay NC Wiring: Wire the button distributed controller and the button relay to make sure all buttons are valid
when powering off.
The wiring of the device lower side is displayed as follows:
Notes:
 Up to 16 relays can be connected.
 Relay No. = Distributed Controller Dial-up No. + Relay Serial No.
