HIKVISION DS-K3Y411 Series - Access Control Board Terminal Details

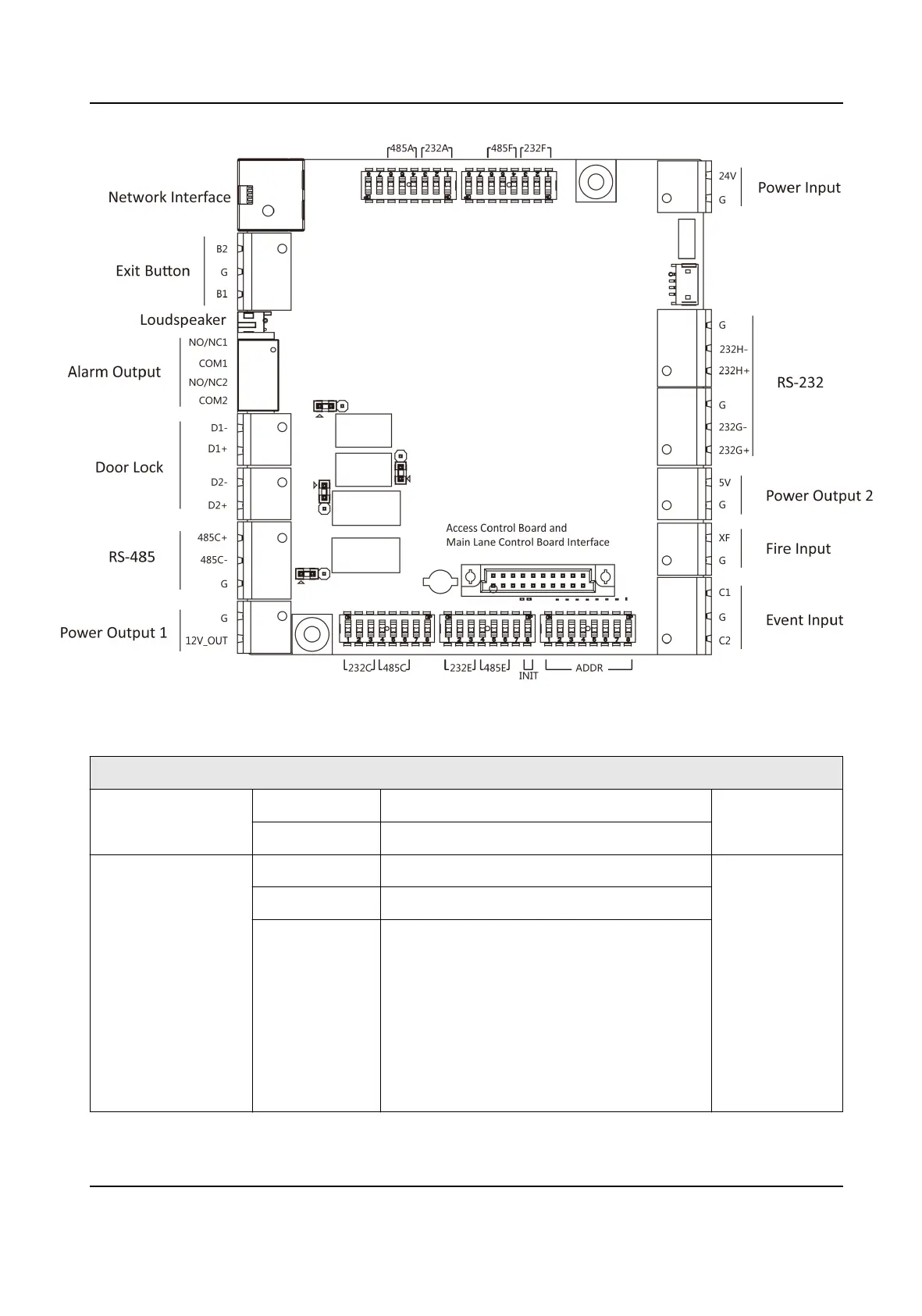

Figure 4-10 Access Control Board Terminal
Table 4-5 Access Control Board Terminal
Descripon
Access Control Board Terminal Descripon
Power Output 1 +12 V 12 VDC Power Output /
G Grounding
RS-485 Interface RS-485 C+ Connect to Card Reader RS485+ • RS-485 card
reader ID
factory DIP is
1 and 3. 1
represents
the passage
entrance,
and 3
represents
the passage
exit. UART 1
RS-485 C- Connect to Card Reader RS485-
GND Grounding
