4.5.6 Access Control Board UART Descripon
You can set the device mode, switch the communicaon mode of the corresponding UART, and
inialize the device through the DIP on the access control board.
The DIP switch of the access control board is shown in the gure below:
Note
The diagram is for reference only.

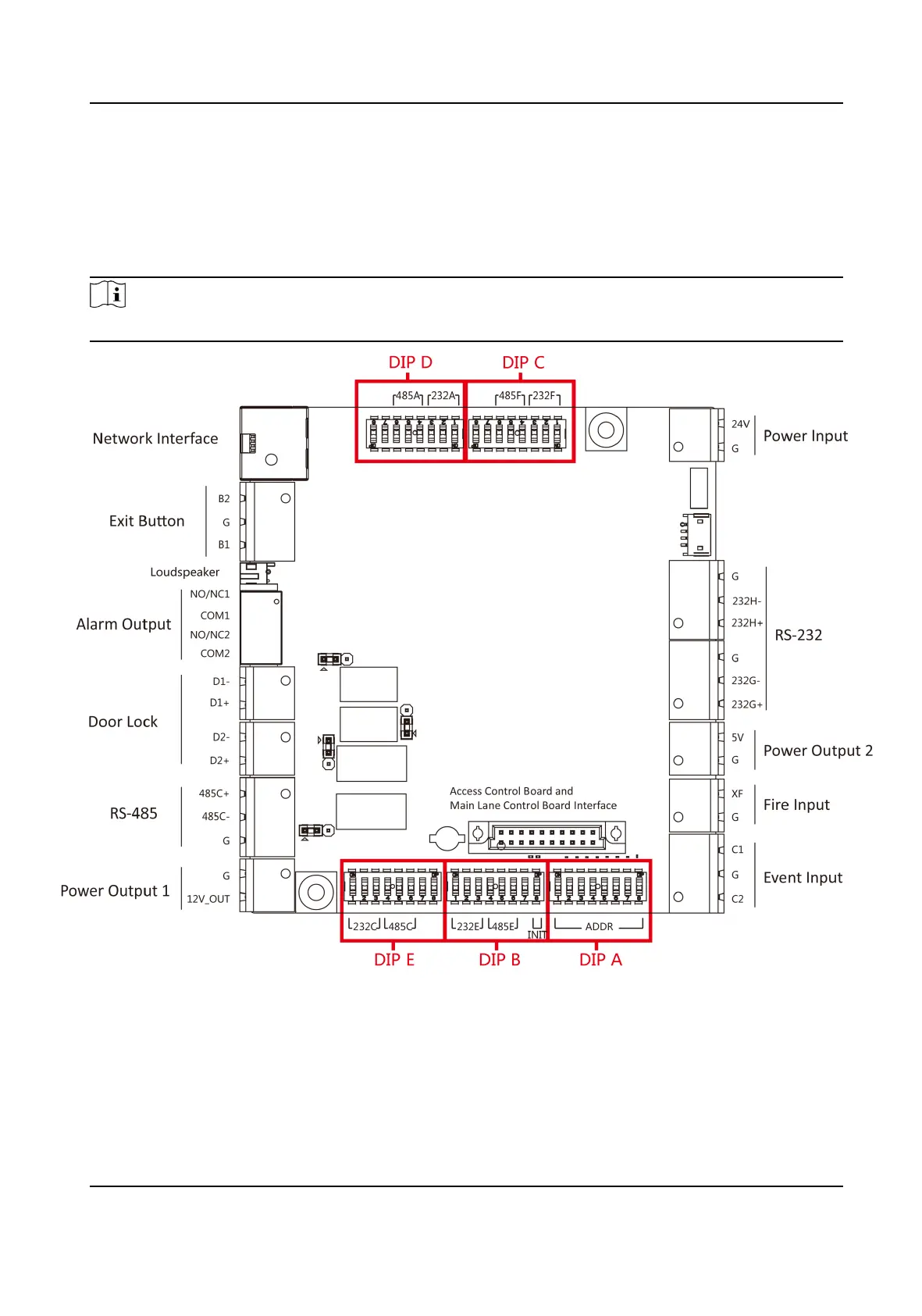

Figure 4-11 DIP Switch on Access Control Board
DIP A can set the device mode, DIP 2 to 5 can set the RS-485/RS-232 interface, and DIP B can also
be used to inialize the device.
The UART corresponding to the DIP Switch is shown in the
gure below:
