Video Door Phone User Manual
12
Wall Mounting (Door Station)
You can follow the following steps to install the door station.
Steps:

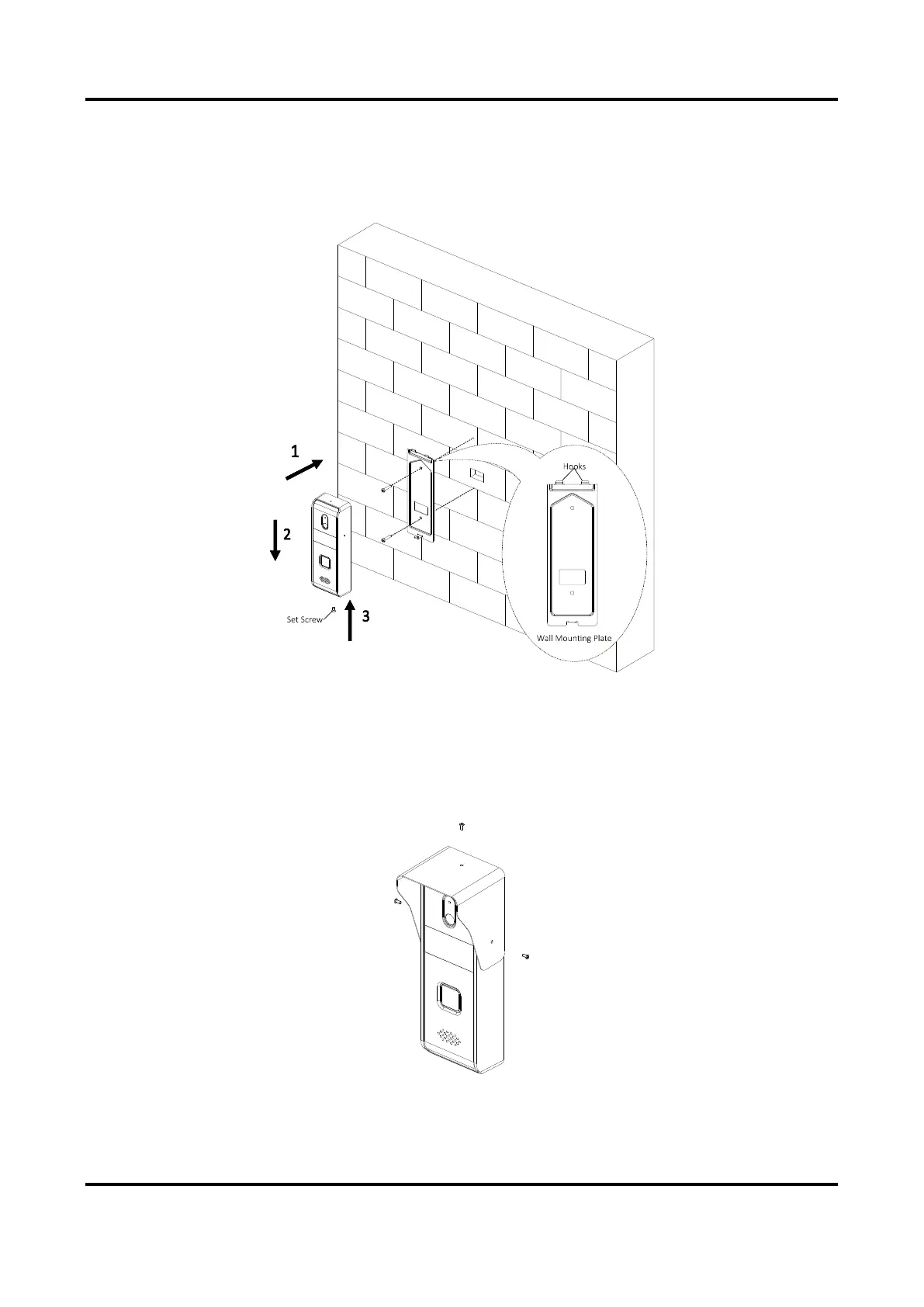

Figure 4-4 Install the Door Station
1. Fix the wall mounting plate to the wall with 2 screws.
2. Hook the door station to the shield tightly by inserting the hooks of shield panel into the slots
on the rear panel of the door station.
3. Secure the door station with the mounting shield with the set screw.
4. Use 3 screws to secure the wall mounting shield with the door station.
Figure 4-5 Secure Wall Mounting Shield

HIKVISION DS-KH2220 Specifications

General

Color	Yes
Number of buttons	4 buttons
Connectivity technology	Wired
Display diagonal	7 \
Display resolution	800 x 480 pixels
Display technology	LCD/TFT
Proper use	Indoor
Control type	Buttons
Product color	White
Indoor unit power type	AC/DC
AC adapter output voltage	12 V
Power consumption (standby)	5 W
Power consumption (typical)	10 W
Operating relative humidity (H-H)	10 - 90 %
Main monitor station operating temperature (T-T)	-10 - 55 °C

Weight and Dimensions

Depth	195.8 mm
Width	132.8 mm
Height	18.39 mm
