HIKVISION DS-KH2220 User Manual

Video Door Phone User Manual
11

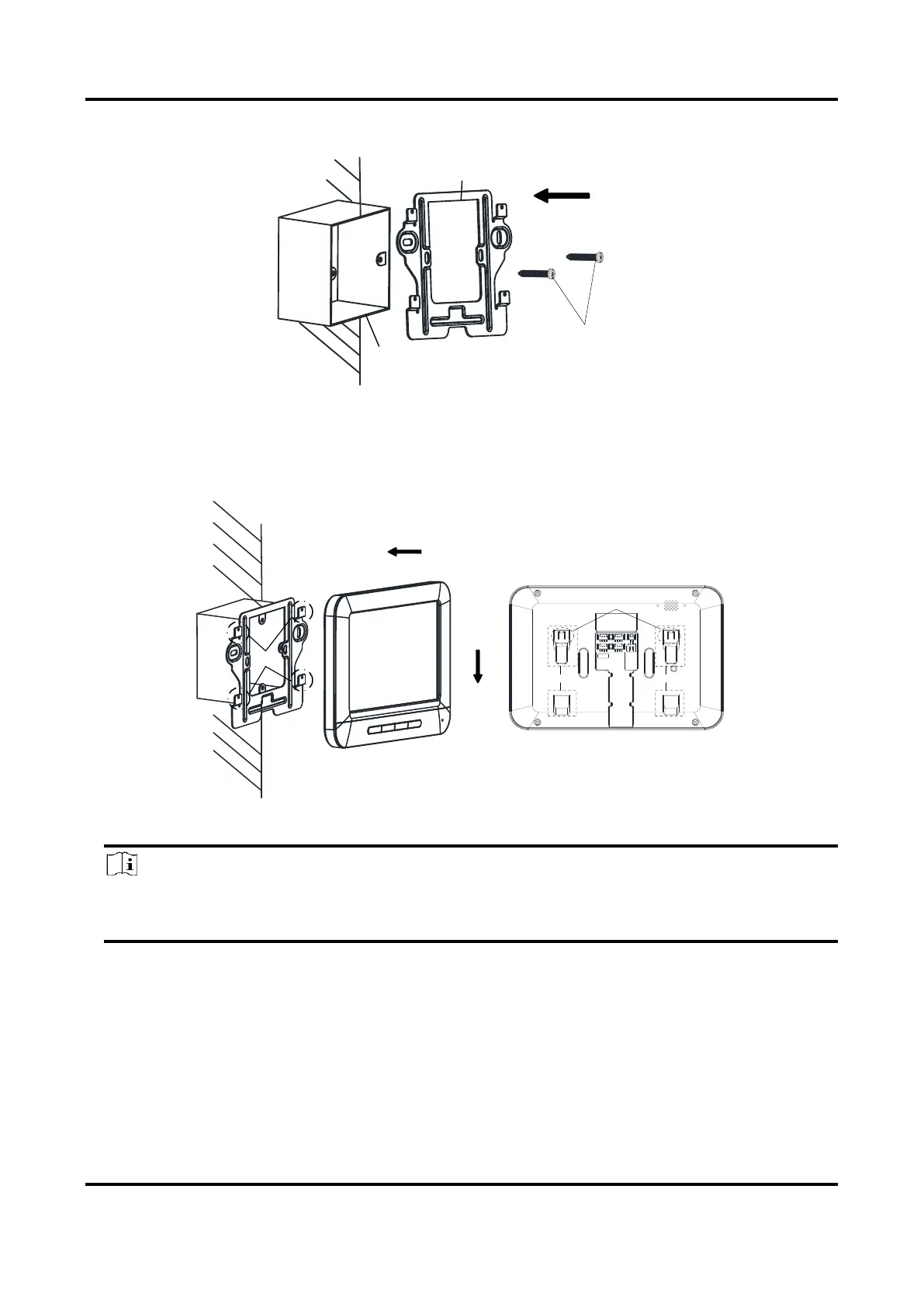

2. Fix the wall mounting plate to the junction box with 2 screws.
Screws
Wall Mounting Plate
Junction
Box
Figure 4-2 Installing the Plate
3. Hook the indoor station to the wall mounting plate tightly by inserting the plate hooks into the
slots on the rear panel of the indoor station, during which the lock catch will be locked
automatically.
Hooks
Slot Slot
Lock Catch
Figure 4-3 Hooking the Indoor Station to the Plate
Note
For the installation without the junction box, you should fix the wall mounting plate to the
wall with 2 expansion screws first, and then hook the indoor station.
4.2 Door Station Installation
Accessoris (Door Station)
To install the door station, the wall mounting shield and the wall mounting plate are required.

HIKVISION DS-KH2220 Specifications

General

Color	Yes
Number of buttons	4 buttons
Connectivity technology	Wired
Display diagonal	7 \
Display resolution	800 x 480 pixels
Display technology	LCD/TFT
Proper use	Indoor
Control type	Buttons
Product color	White
Indoor unit power type	AC/DC
AC adapter output voltage	12 V
Power consumption (standby)	5 W
Power consumption (typical)	10 W
Operating relative humidity (H-H)	10 - 90 %
Main monitor station operating temperature (T-T)	-10 - 55 °C

Weight and Dimensions

Depth	195.8 mm
Width	132.8 mm
Height	18.39 mm
