4 Terminals and Interfaces
4.1 Terminals and Interfaces of DS-KH8501-WT/
DS-KH8500-T

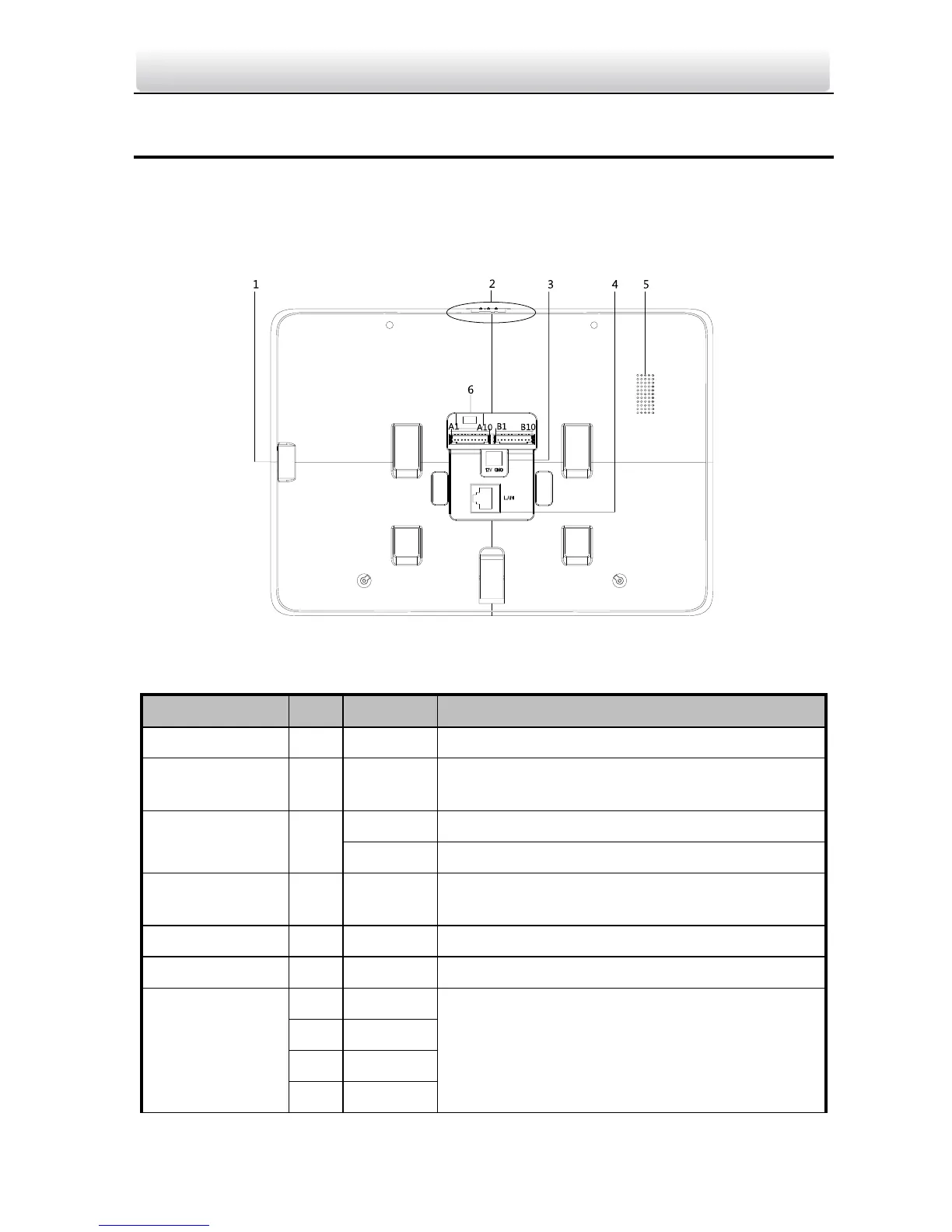

Figure 4-1 Rear Panel of DS-KH8501-WT/DS-KH8500-T
Table 4-1 Descriptions of Terminals and Interfaces
Name
No.
Interface
Description
TF Card Slot
1
TF Card Slot
Mechanical
Switch
2
Mechanical Switch of Built-in Camera
Power Supply
3
+12V
DC 12V Power Supply + Input
GND
DC 12V GND - Input
Network
Interface
4
LAN
Network Interface (Support Private POE)
Loudspeaker
5
Loudspeaker
Serial Port
6
Serial Port
485
Communication
Port
A1
RS485B+
Reserved
A2
RS485B-
A3
RS485A+
A4
RS485A-
