HIKVISION DS-KH6310-W(L) User Manual
4
of 1
of 1 rating
109 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
V
ideo In
terc
om Indoor Station
·
U
ser Manual
19
5.2

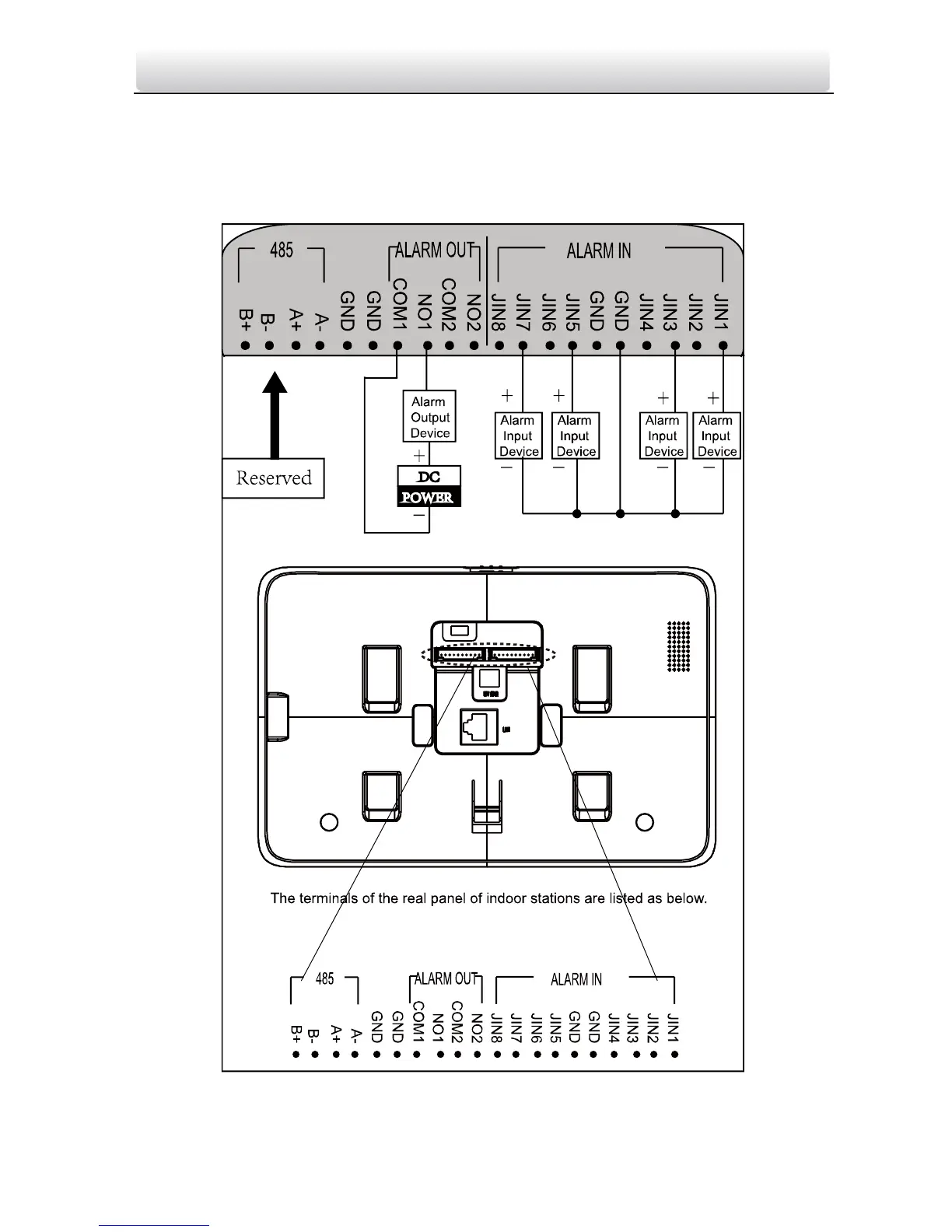

Indoor Statio
n Wiring
5.2.1
Wir
ing of
DS
-KH850
1-WT/D
S-KH8500-T/DS-K
H8301-
WT
/
DS
-KH8300-T
Figure 5-6
W
iring o
f
DS
-KH8301-
WT
/
DS
-KH8300-
T
Indoor Stati
on
27
29
Table of Contents
Default Chapter
4
Regulatory Information
4
Table of Contents
7
1 Overview
10
Introduction
10
Main Features
10
2 Appearance
11
Appearance of DS-KH8501-WT/DS-KH8500-T
11
Appearance of DS-KH8301-WT/DS-KH8300-T
12
Appearance of DS-KH6310-W/DS-KH6310
14
Appearance of DS-KH6310-W(L)/DS-KH6210(L)
15
3 Typical Application
18
Intercom System
18
4 Terminals and Interfaces
19
Terminals and Interfaces of DS-KH8501-WT/ DS-KH8500-T
19
Terminals and Interfaces of DS-KH8301-WT/ DS-KH8300-T
20
Terminals and Interfaces of DS-KH6310-W/ DS-KH6310
22
Terminals and Interfaces of DS-KH6310-W(L)/ DS-KH6210(L)
23
5 Installation and Wiring
25
Indoor Station Installation
25
Installation Plate
25
Wall Mounting with Gang Box of Indoor Station
25
Indoor Station Wiring
28
Wiring of DS-KH8501-WT/DS-KH8500-T/DS-KH8301-WT/ DS-KH8300-T
28
Wiring of DS-KH6310-W/DS-KH6310
31
Wiring of DS-KH6310-W(L)/DS-KH6210(L)
32
6 Before You Start
33
7 Video Intercom Device Set-Up Tool
34
Setting a Community Structure
34
Setting Project
34
Setting Community
35
Setting Building
36
Setting Floor
36
Setting Room
37
Activating and Setting Indoor Station
38
8 Batch Configuration Tool
40
Activating Device Remotely
40
Editing Network Parameters
41
Adding Device
42
Adding Online Devices
42
Adding by IP Address, IP Segment or Port no
43
Remote Configuration
45
System
45
Video Intercom
51
Network
56
9 Setting the Door Station Via Ivms-4200
59
System Configuration
59
Device Management
59
Group Management
59
Adding Group
60
Assigning Devices to Group
61
Modifying Device Information
62
Deleting Device
62
Card Management
63
Unauthorized Card Management
63
Normal Card Management
69
Notice Management
70
Creating Notice Information
70
Querying Notice Information
71
Querying Call Logs
72
Querying Unlocking Log
73
Device Arming Control
73
Local Operation
75
Activating Device Locally
75
User Interface Description
76
User Interface of Indoor Station
76
User Interface of Indoor Extension
77
Indoor Station Status
77
Indoor Extension Status
79
Arming Status
80
Settings
80
Password Settings
81
Sound Settings
82
No Disturbing Settings
83
Arming Mode Settings
84
Zone Settings
85
System Maintenance
86
Configuration Settings
87
Call Settings
94
Adding Contact
94
Calling Resident
95
Receiving Call
96
Viewing Call Logs
97
Calling Management Center and Calling Elevator
98
Information Management
99
Live View
101
Appendix
103
Installation Notice
103
Wiring Cables
103
Specification
103
Spectification of DS-KH8501-WT/DS-KH8500-T
103
Specification of DS-KH8301-WT/DS-KH8300-T
105
Specification of DS-KH6310-W/DS-KH6310
106
Specification of DS-KH6310-W(L)/DS-KH6210(L)
107
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the HIKVISION DS-KH6310-W(L) and is the answer not in the manual?
Ask a question
